ICON Vehicle Dynamics K214522A - 14-18 RAM 2500 4WD 4.5" STAGE 2 SUSPENSION SYSTEM (AIR RIDE)
Couldn't load pickup availability
2014-2018 RAM 2500 4WD 4.5" LIFT STAGE 2 SUSPENSION SYSTEM (AIR RIDE)

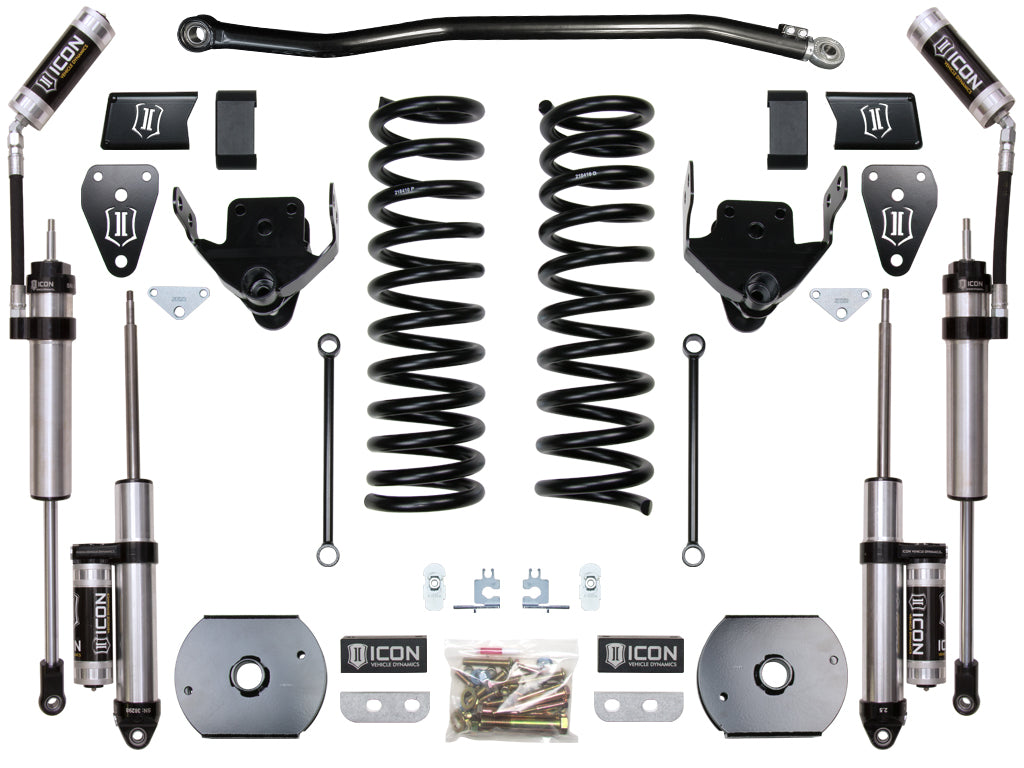

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 2 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, making the Stage 2 system a great choice for any 2014-UP Ram 2500 4WD that's used for daily driving, towing, and recreational off-road driving. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components while also allowing for rear ride height adjustability.
Features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- Level stance from front to rear of vehicle
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Title | 14-18 RAM 2500 4WD 4.5" STAGE 2 SUSPENSION SYSTEM (AIR RIDE) |
| Coils Quantity Front | 2 |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Maximum Lift | 4.5 IN |
| Spring Color | Black |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset |
| Add-On Part | 214211 - 14-UP RAM HD 1.75" CARRIER BEARING DROP KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 216520 - 09-UP RAM HD 2.0 STEERING STABILIZER |
Installation Guide: Download PDF
