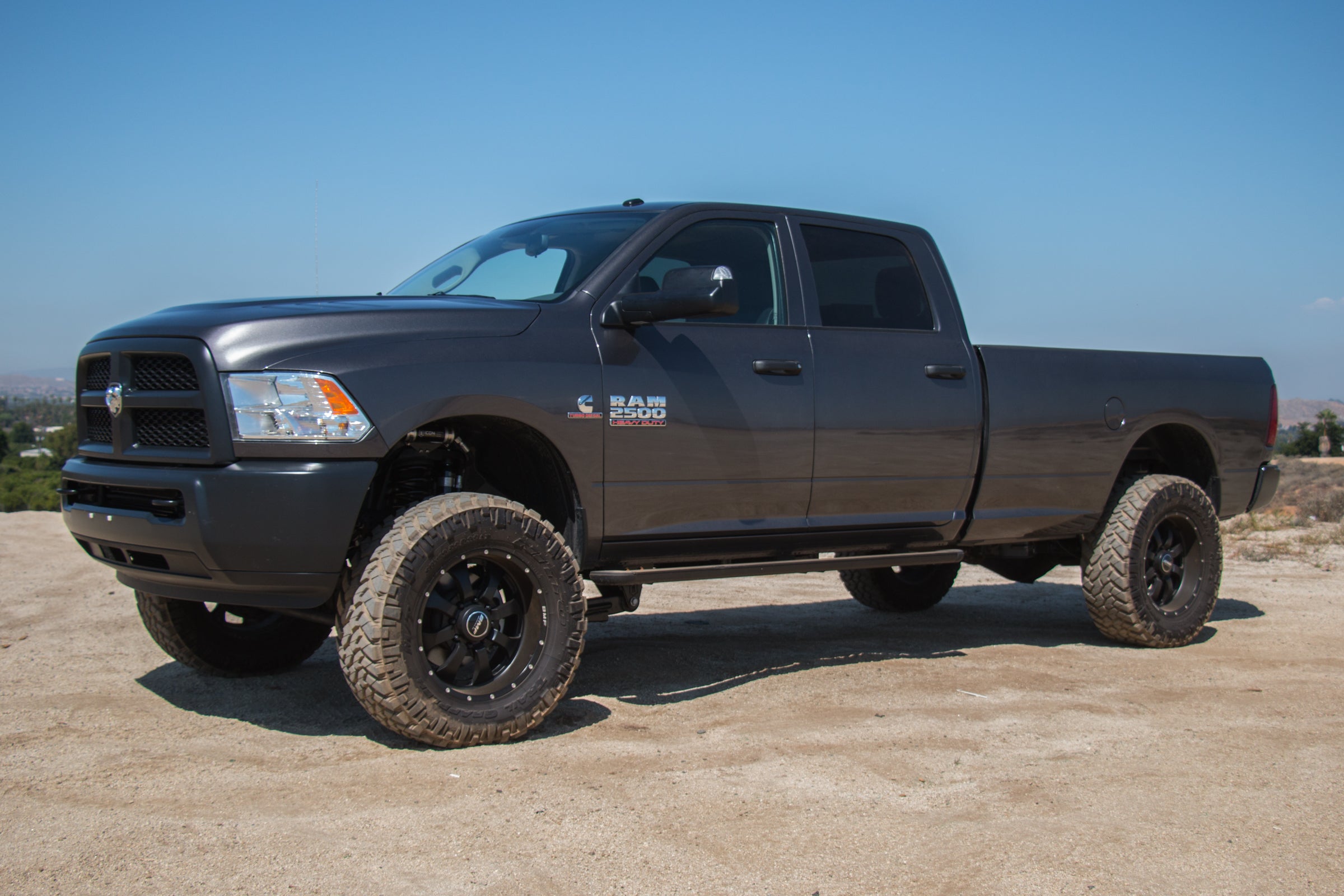

ICON Vehicle Dynamics K214524A - 14-18 RAM 2500 4WD 4.5" STAGE 4 SUSPENSION SYSTEM (AIR RIDE)

ICON suspension systems for the 14-26 Ram 2500 4WD were designed with performance and ride quality in mind. ICON 2.5 Series shocks deliver balanced performance front to rear, perfect for daily driving, towing, and spirited off-road use.

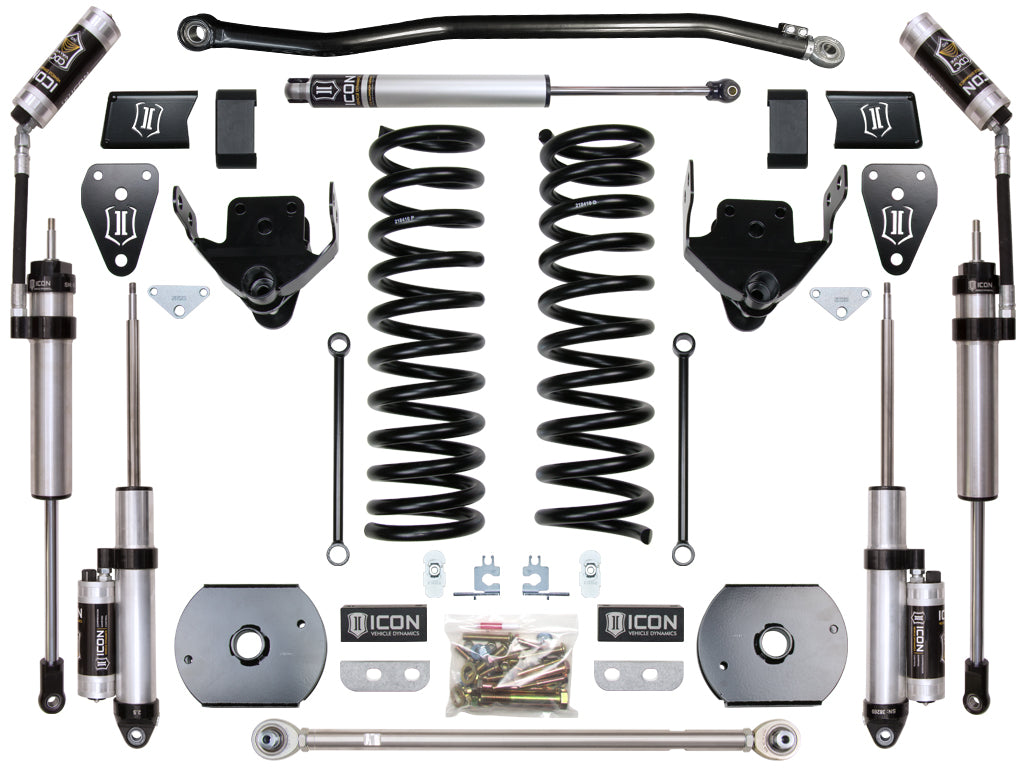

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 4 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 4 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components while also allowing for rear ride height adjustability.

Features

• ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
• Fabricated rear air bag spacers and sensor linkages allow use of stock rear air springs and provide 3.75" of rear lift over stock
• Level stance from front to rear of vehicle
• Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
• Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
• Front and rear shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Increased wheel travel and suspension performance over stock with no change in towing capacity
• Adjustable front and rear track bars realign axles and improve strength
• PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
• 2.0 Aluminum Series steering stabilizer helps control larger tires with increased steering damping
• Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #607: 2019-2026 Ram 2500/3500 models require an aftermarket, high-angle front driveshaft to prevent bind. ICON part numbers 212511 or 212512 are recommended. APPLICATION NOTE #645: Provides 4.5" of front lift on most Ram 2500 submodels. Provides 2.5" of front lift on Ram 2500 Rebel. APPLICATION NOTE #646: Only fits models equipped with factory rear air suspension Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle APPLICATION NOTE #103: VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFTS REQUIRE CARRIER SHIM KIT 214211

Short Description: SUSPENSION SYSTEM

Invoice Description: K214524A

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: No Warranty
