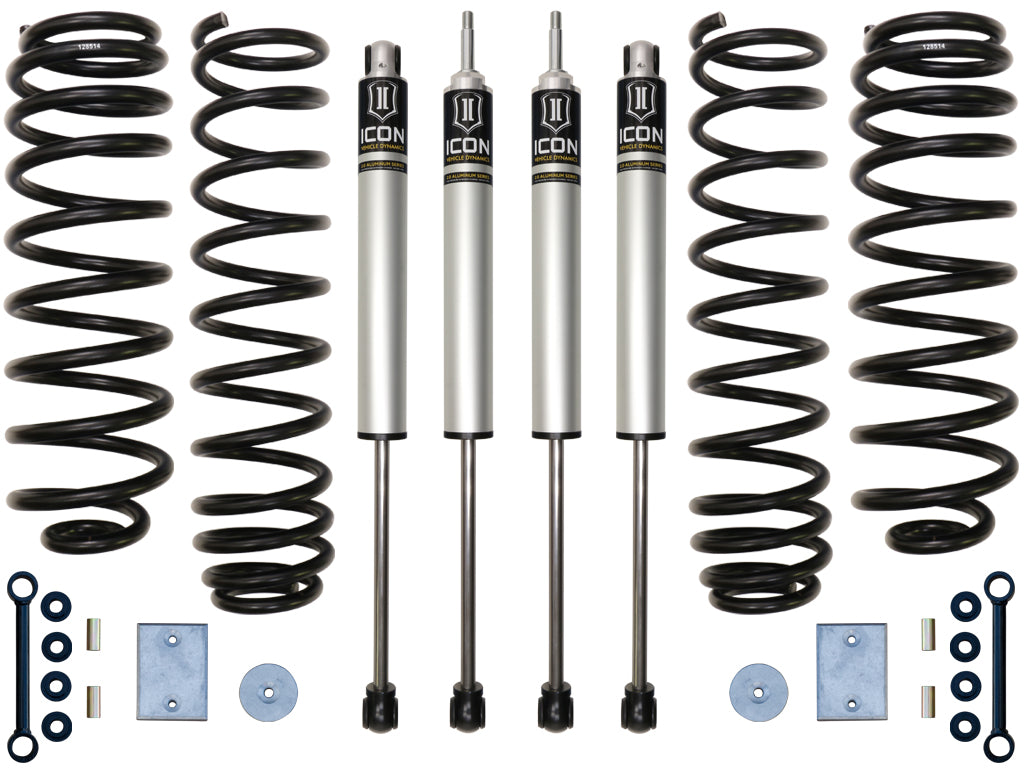

ICON Vehicle Dynamics K22001 - 07-18 JEEP JK 3" STAGE 1 SUSPENSION SYSTEM

2007-2018 JEEP JK 3" LIFT STAGE 1 SUSPENSION SYSTEM

The ICON Vehicle Dynamics 3" Lift Suspension System is designed for Jeep JK owner's demanding the ultimate in performance and ride quality, without the larger stance you find in bigger lift systems on today's market. ICON's Jeep Wrangler JK 3" lift system is engineered with front and rear dual rate progressive wound springs which is the foundation for on and off road performance and suspension articulation. The dual rate design gives you a softer initial rate for superb on road comfort and a firmer secondary rate that increases during compression for excellent bottom out control. ICON V.S. 2.0 Aluminum Series shocks add the finishing touch with OE mounting, aircraft grade components, and vehicle specific valving. Together the combination of ICON dual rate coils and V.S. 2.0 Aluminum Series shocks adds 30% more wheel travel over stock, helping you rock crawl safer or soak up larger terrain at higher speeds keeping those wheels on the ground. This ICON 3" JK lift system is designed from the ground up to give the 07-18 Jeep Wrangler JK's the best performance, suspension handling / ride quality, and clearance for 33" tall tires (35" tall with installation of aftermarket high-clearance fenders).

Features

• Dual Rate Coil Springs Front and Rear
• Adds 30% More Wheel Travel over Stock
• No Welding or Cutting
• Vehicle can be Returned Back to Stock
• Includes High Performance Re-buildable / Re-valvable IFP 2.0 Aluminum Series Shocks
• Level Stance Front to Rear
• Out Articulates Most Long Arm Kits of Comparable Height
• Lifetime Guarantee that Coil Springs Won’t Sag

Specifications

Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle. Ships in Multiple Boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended) APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH APPLICATION NOTE #63: 2012-UP JK MODELS REQUIRE THE USE OF ICON PART #22011 EXHAUST EXTENSION SPACER OR AFTERMARKET DRIVESHAFT PART #22014 APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE

Short Description: JK 3" SUSP SYSTEM

Invoice Description: 07-18 JK 3" STAGE 1 SUSP SYS

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Warranty: 1 Year-Shocks, Limited Lifetime-Coil springs and Box Kit
