ICON Vehicle Dynamics K22012 - 18-UP JEEP JL 2.5" STAGE 2 SUSPENSION SYSTEM
Regular price
$1,852.70 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability

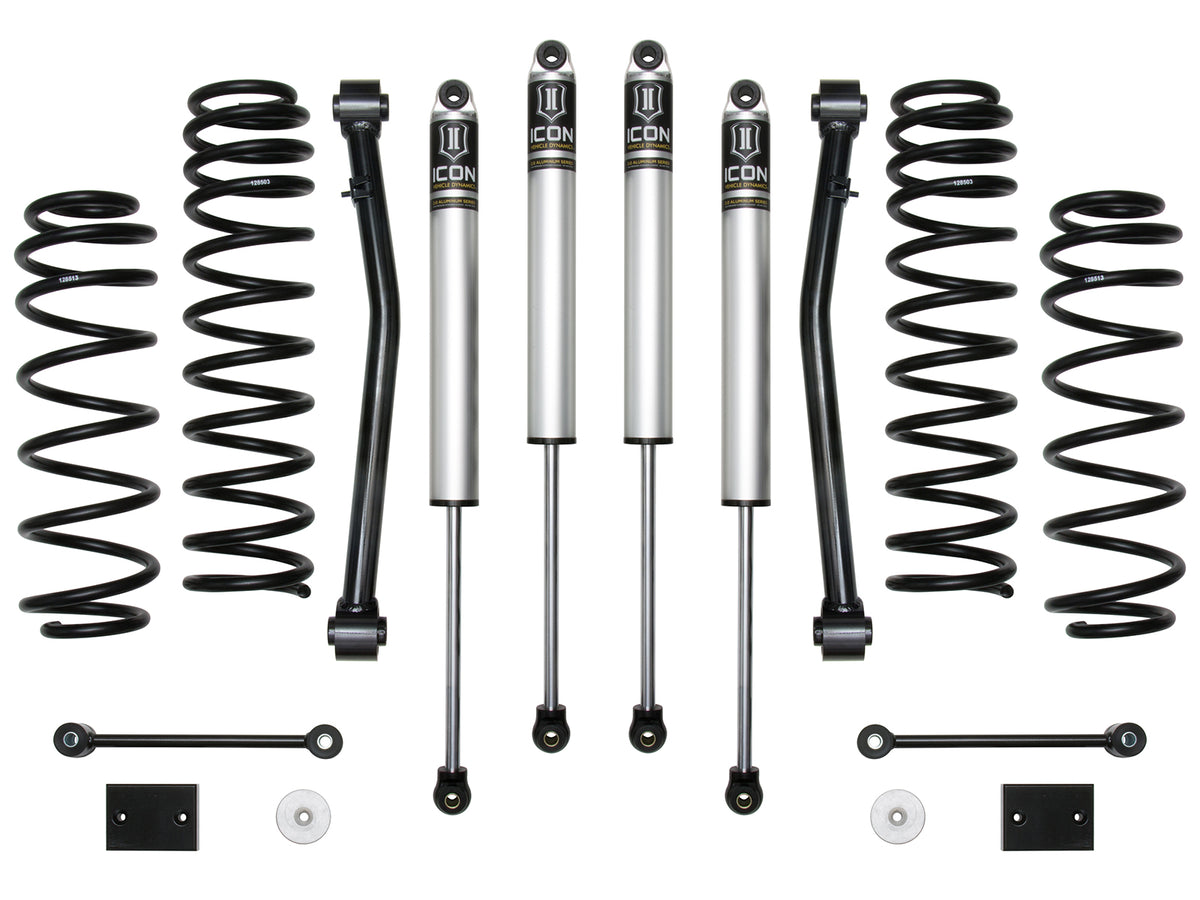

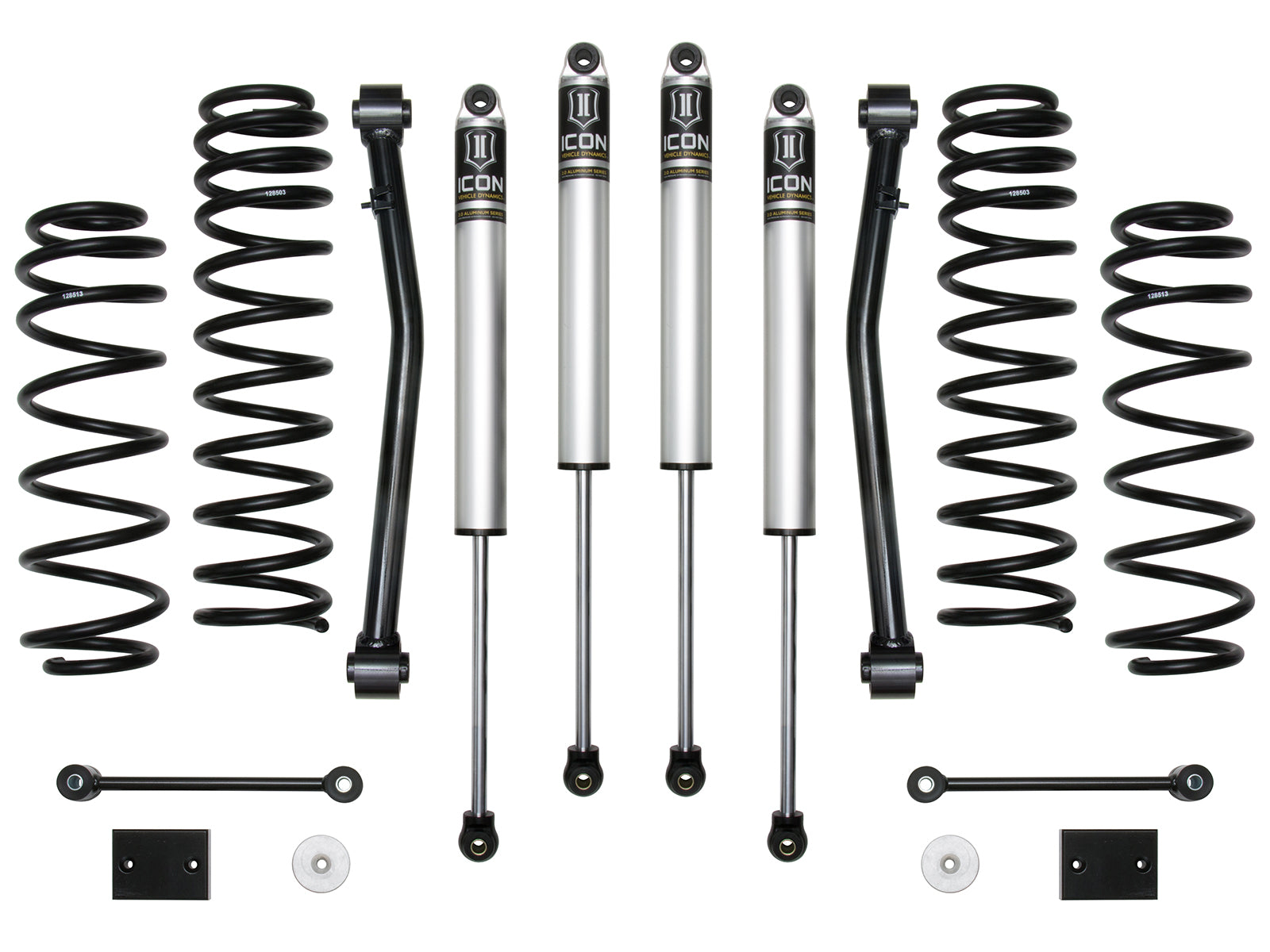

2018-UP JEEP JL 2.5" LIFT STAGE 2 SUSPENSION SYSTEM
Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has logged over a thousand miles in the dirt pushing the JL to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2.5” suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running.
Features & Benefits
- 2.5" lift height
- Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
- 3" front, 2" rear increase in wheel travel
- Improves on and off-road ride quality over stocK
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- 2.0 Aluminum Series shocks with vehicle specific valving
- Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Title | 18-UP JEEP JL 2.5" STAGE 2 SUSPENSION SYSTEM |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Maximum Lift | 2.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22029) |
| Spring Color | Black |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | (Non-Rubicon) ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels | (Rubicon) ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels | (Non-Rubicon) ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels | (Rubicon) ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels | (Rubicon) ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (Non-Rubicon) ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset |
Installation Guide: Download PDF
