ICON Vehicle Dynamics K22101 - 20-23 GLADIATOR 2" STAGE 1 SUSPENSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.
2020-UP JEEP GLADIATOR JT 2.5" STAGE 1 SUSPENSION SYSTEM

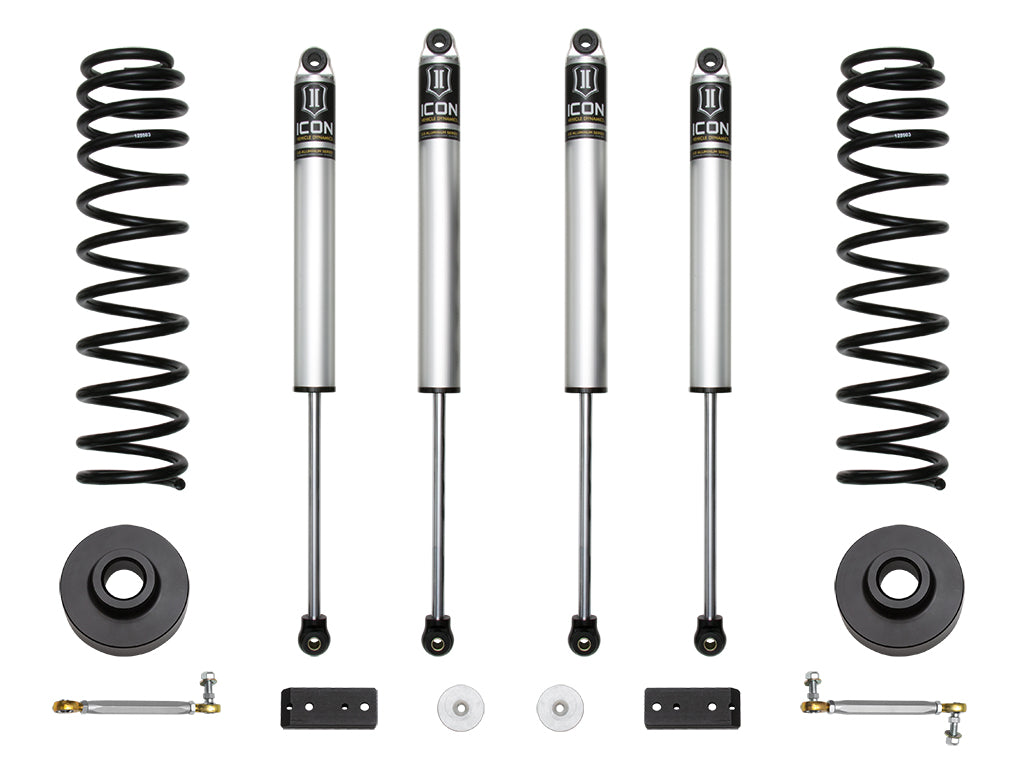

Aimed at drastically improving (not just maintaining) on and off-road ride quality the ICON Jeep Gladiator JT Stage 1 system includes front dual rate coil springs, rear billet aluminum coil spacers, 2.0 Aluminum Series shocks, front bump stops, adjustable sway bar end links, and all necessary hardware for a complete install. The JT is a very capable vehicle off of the showroom floor and with the addition of an ICON suspension system this capability is only expanded upon with improved suspension geometry and more robust components resulting in significant performance gains. Through an accelerated testing process dubbed the βICON1Kβ R&D program, ICON has logged over a thousand miles in the dirt pushing the JT to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2β suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running. By removing the aforementioned βlimiting factorsβ this ICON suspension system completely redefines the potential of the 2020-2023 Jeep Gladiator with wheel travel gains over 30%!
Features
- 2" front lift height over stock
- βICON 1Kβ tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Fits 35" tires (37" with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- Billet aluminum rear 1.375" coil spacers eliminate the factory rake
- 2.0 Aluminum Series shocks with vehicle specific valving
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Damping | No |
| Bushings Included | Yes |
| Add-On Part | 22071 - 20-UP JT EXTENDED BUMP STOP SPACER KIT |
| Maximum Lift Rear | 1.38 IN |
| Coils Quantity Front | 2 |
| Maximum Lift Front | 2 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071) |
| Spring Color | Black |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Grade Type | Performance |
| Front Spring Rate Type | Progressive Dual Rate |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 22042 - 20-23 JT/18-23 JL/07-18 JK FRONT 2.0 HYD BUMP STOP KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5 w/ 4.5" Backspace / -6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9 w/ 4.5" Backspace / -12mm Offset |
Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: ICONβs advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5β Backspace / -6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5β Backspace / -12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 4.5β Backspace / -12mm Offset Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071) APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim APPLICATION NOTE #150: Shocks Are Fully Serviceable TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
Short Description: SUSPENSION SYSTEM
Invoice Description: K22101
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs, Coil Spacers, Sway Bar Links, Sway Bar Bracket
