ICON Vehicle Dynamics K22105T - 20-UP JEEP GLADIATOR 2.5" STAGE 5 SUSPENSION SYSTEM (TUBULAR)

2020-UP JEEP GLADIATOR JT 2.5" STAGE 5 SUSPENSION SYSTEM WITH TUBULAR LINKS

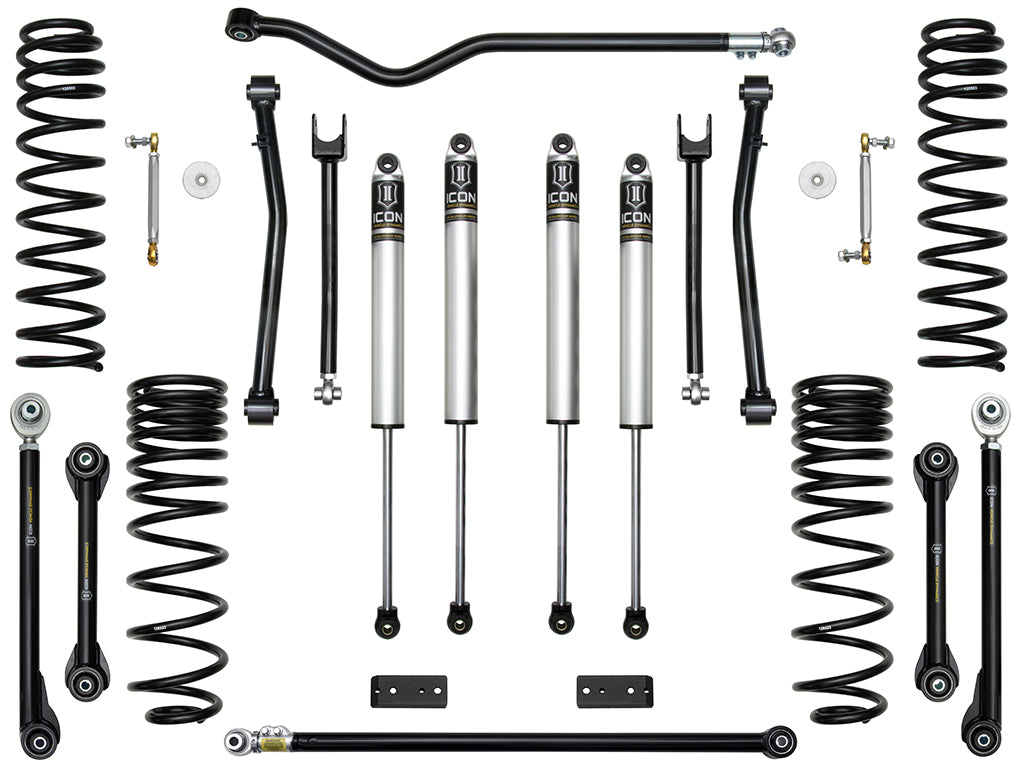

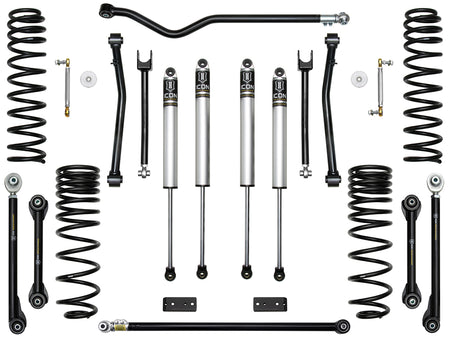

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

Features

• 2.5" lift height
• Front and rear track bars ensure proper alignment and improved articulation
• Adjustable, billet aluminum front sway bar links
• 100% bolt-on system makes for an easy install
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Fits 35" tires (37" with extended bump stop spacer kit)
• 33% front, 23% rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Front upper and lower links included for caster angle correction and improved front end articulation
• Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• 2.0 Aluminum Series shocks with vehicle specific valving

Specifications

Note: OEM Wheels & Tires Fitment: Yes Ships In Multiple Boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071) APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #127: WILL NOT FIT GLADIATOR MOJAVE TRIM APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle. TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.

Short Description: SUSPENSION SYSTEM

Invoice Description: 20-UP JT 2.5" STAGE 5 SUSP SYS TUBULAR

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Warranty: No Warranty
