ICON Vehicle Dynamics K24002 - 07-18 JEEP JK 4.5" STAGE 2 SUSPENSION SYSTEM

2007-2018 JEEP JK 4.5" LIFT STAGE 2 SUSPENSION SYSTEM

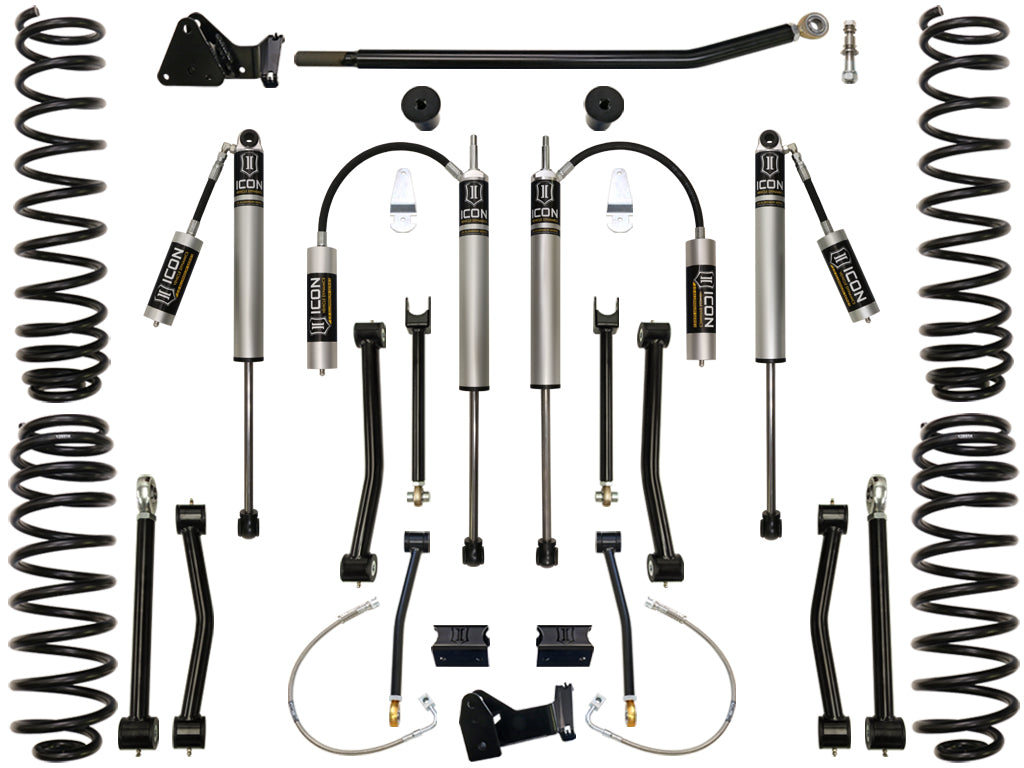

ICON’s 4.5” Jeep JK Performance Suspension Systems aims to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics. With these goals met, ICON-equipped JK’s can take on rolling desert whoops, crawl over obstacle-riddled trails, and drive back home in comfort all in the same day. One of the major benefits of the ICON 4.5” JK system (or any ICON system) is that they are comprehensive suspension solutions, not just “lift kits”. As a complete manufacturer ICON is able to engineer & create shock absorbers, coil springs, link arms, track bars, and all associated parts to work in conjunction with each other and extract maximum performance out of the Jeep JK. The ICON Stage 2 Jeep JK 4.5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bump stop spacers, rear brake lines, rear sway bar links, complete set of front and rear links, and 2.0 Aluminum Series remote reservoir shocks. Tested and tuned, the ICON JK Stage 2 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving. Adding the remote reservoirs to the 2.0 shocks keeps them at a cooler operating temperature during heavy use for more consistent shock damping and overall performance. Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.

Features

• Dual-rate coil springs front and rear guaranteed never to sag
• High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
• Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
• All links utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
• Includes high-performance rebuildable and revalvable remote reservoir 2.0 Aluminum Series shocks
• Increased wheel travel and articulation over stock
• No welding or cutting required
• 100% returnable to stock

Specifications

Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle. Ships In Multiple Boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger 37" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended) APPLICATION NOTE #62: FRONT DRIVESHAFT CAN HIT CERTAIN MODEL SKID PLATES AT FULL DROOP AND MAY NEED TO BE TRIMMED FOR FULL ARTICULATION APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED APPLICATION NOTE #80: Front Drive Shaft Required For Proper Front Driveline Clearance (ICON Part #22014 [12-Up] / #22016 [07-11] APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE

Short Description: JK STG 2 4.5 SUSP

Invoice Description: 07-18 JEEP JK 4.5" STAGE 2 SUSP SYS

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Warranty: No Warranty
