ICON Vehicle Dynamics K40012 - 21-23 BRONCO HOSS 2.0 PKG 0-2" LIFT STAGE 2 SUSPENSION SYSTEM BILLET
Couldn't load pickup availability
ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021-2023 Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable ride height adjustment from 0-2” of front lift and 0-1.75" of rear lift over stock on Bronco’s equipped with the OE HOSS 2.0 suspension package.
Features & Benefits
- Vehicle specific design for 2021-2023 Ford Bronco with HOSS 2.0 Suspension Package
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Vehicle specific tuned shocks for superior shock damping and vehicle control

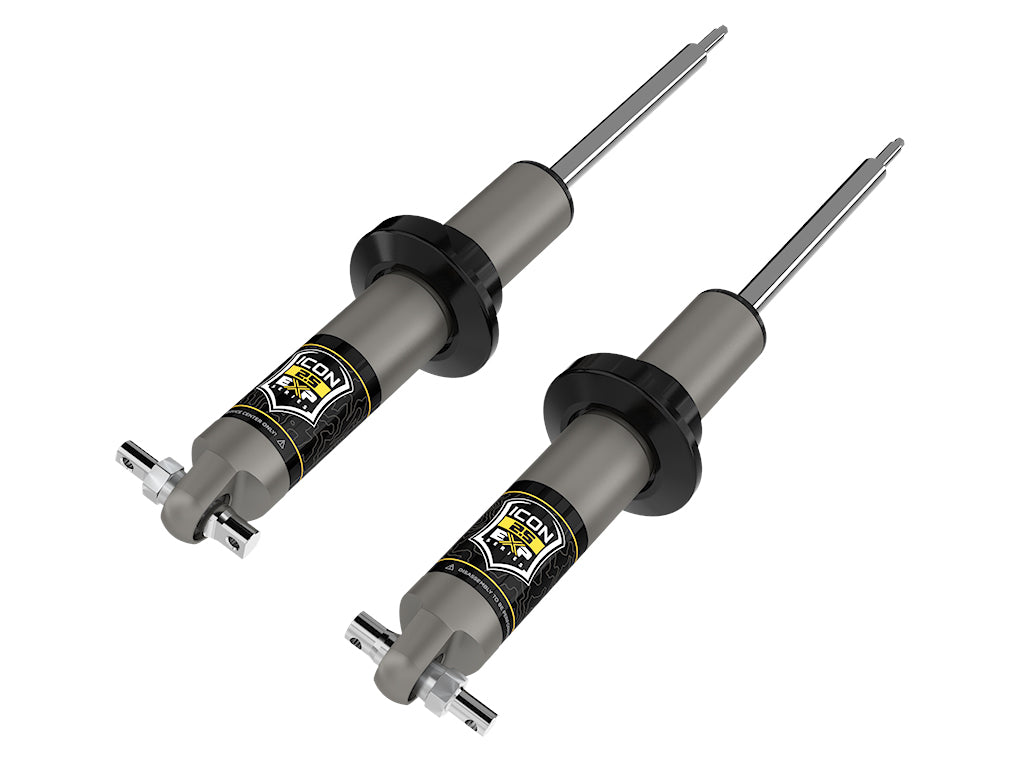

- Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
- Adjustable ride heights from 0-2” of front lift and 0-1.75" of rear lift over stock with the use of snap rings
- Utilizes factory coils and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
- One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Recommended Aftermarket Tires | (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packagesrequire coilover bump stop spacers along with trimming and modifications) |
| Minimum Lift Front | 0 IN |
| Minimum Lift Rear | 0 IN |
| Maximum Lift Rear | 1.75 IN |
| Maximum Lift | 2 IN |
| Maximum Lift Front | 2 IN |
| Front Shock Body Diameter | 2.5 IN |
| Rear Shock Body Diameter | 2.5 IN |
| Title | ICON 2021-2023 Ford Bronco, HOSS 2.0 Pkg, 0-2" Lift, Stage 2 Suspension System, Billet |
| Reservoir Style | Internal |
| Adjustable Compression | No |
| Adjustable Damping | No |
| OEM Wheels & Tires Fitment | No |
| Active or Passive Suspension | Passive |
| Grade Type | Performance |
| Recommended Aftermarket Tires | Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tire packages require coilover bump stop spacers and may also require fender trimming and modifications) |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Adjustable Control Arm | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" with 5" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" with 5" Backspace / 0mm Offset |
| Add-On Part | 611082 - EXP 1" SHAFT BUMP EXTENSION |
| Add-On Part | 45212 - 21-23 BRONCO XD TIE ROD KIT |
| Add-On Part | 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
