ICON Vehicle Dynamics K53013 - 95.5-04 TACOMA 0-3" STAGE 3 SUSPENSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.
ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.

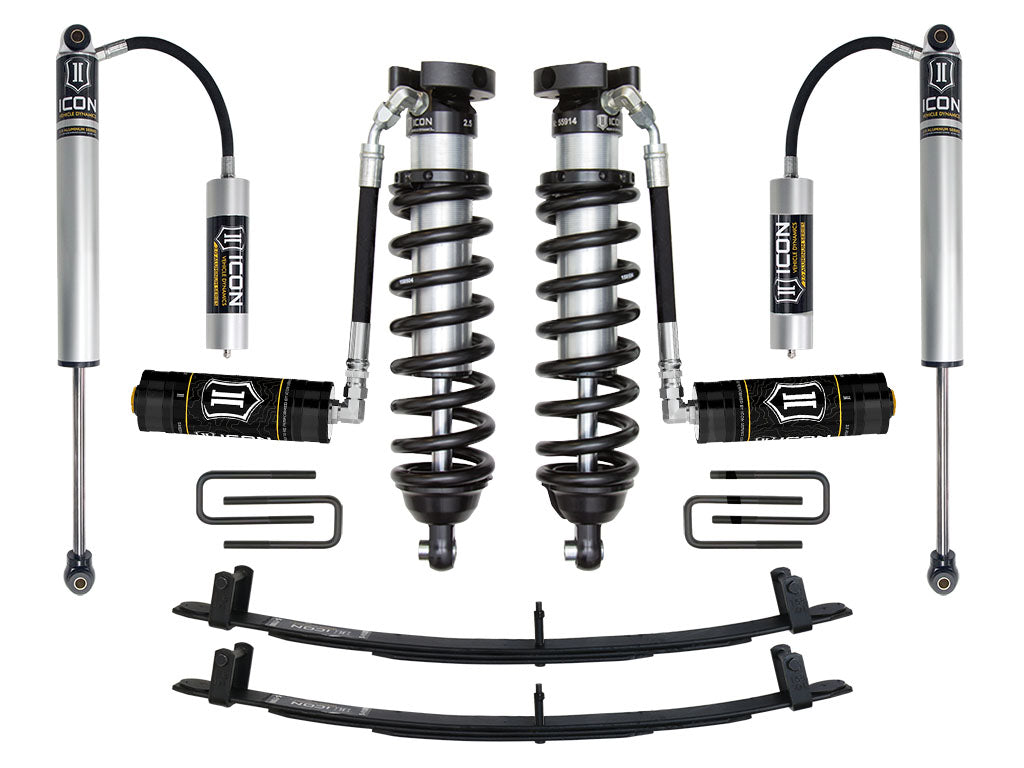

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable remote reservoir coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" hardened chrome shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear remote reservoir shock with 5/8" polished chrome plated steel shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Minimum Lift Front | 0 IN |
| Maximum Lift Rear | 1.5 IN |
| Coils Quantity Front | 2 |
| Coil Quantity Front | 2 |
| Rear Shock Body Diameter | 2 IN |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift | 3 IN |
| Leaf Spring Leaf Quantity | 3 |
| Maximum Lift Front | 3 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Spring Rate | 650 PPI |
| Spring Color | Black |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Active or Passive Suspension | Passive |
| Grade Type | Performance |
| Reservoir Style | Remote |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Bushings Included | Yes |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Front Spring Rate Type | Linear |
| Rear Spring Rate Type | Linear |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 with 5” Backspace / 0mm Offset |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 158508 - COIL SPRING 1400.0300.0700 BLACK |
| Add-On Part | 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT |
| Add-On Part | 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9 with 5” Backspace / 0mm Offset |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
Short Description: SUSPENSION SYSTEM
Invoice Description: K53013
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil and Leaf Springs, U-Bolts
