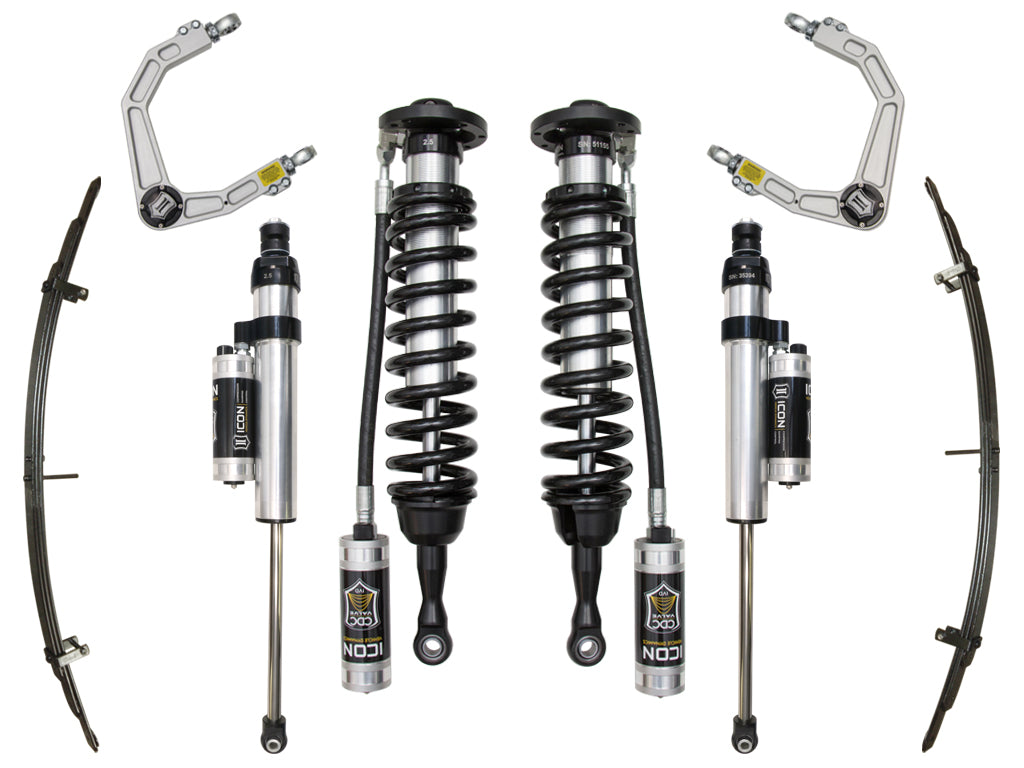

ICON Vehicle Dynamics K53026 - 07-21 TUNDRA 1-3" STAGE 6 SUSPENSION SYSTEM W BILLET UCA
Couldn't load pickup availability
2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 6 SUSPENSION SYSTEM WITH BILLET UCA
ICON Vehicle Dynamics Toyota Tundra Stage 6 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and includes our Compression Damping Control Valve (CDCV) for 10 clicks of tool free adjustment. These coilovers are also height adjustable from 1-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks utilize our CDCV valving that makes your suspension tunable front and rear. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 6 suspension system is an excellent choice for those drivers looking to tune the capabilities of their pickup on the road as well as in the dirt.
Features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- CDC tuned front and rear shocks for a custom tuneable ride
- Adjustable coilovers from 1-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK rod end bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Rear expansion pack for 1.5” of lift and better ride quality
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Title | 07-21 TUNDRA 1-3" STAGE 6 SUSPENSION SYSTEM W BILLET UCA |
| Coils Quantity Front | 2 |
| Maximum Lift | 3 IN |
| Leaf Spring Leaf Quantity | 3 |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Spring Color | Black |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset |
| Dual Rate Coil Springs | NO |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
