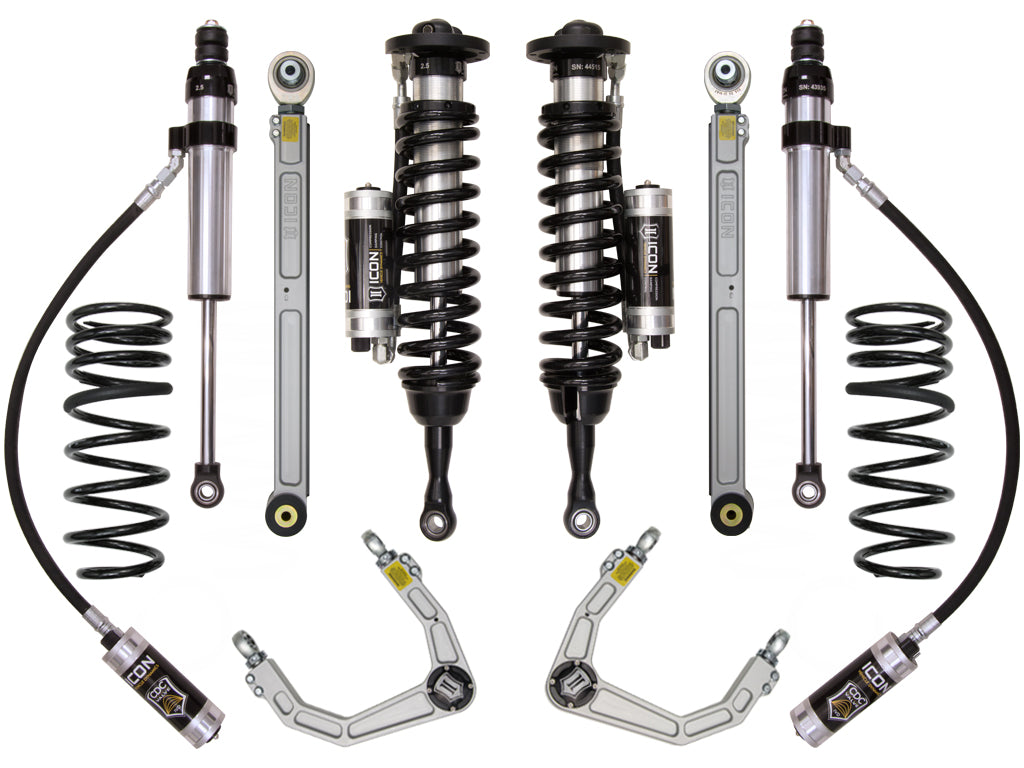

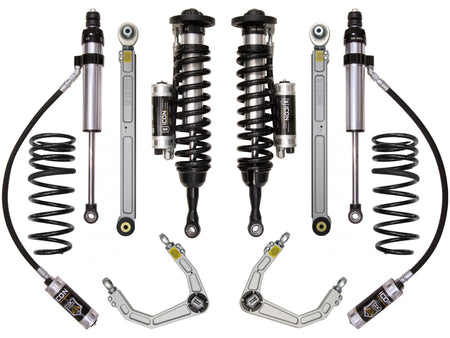

ICON Vehicle Dynamics K53075 - 08-UP LAND CRUISER 200 SERIES 1.5-3.5" STAGE 5 SUSPENSION SYSTEM

2008-UP TOYOTA LAND CRUISER 200 SERIES 1.5-3.5" LIFT STAGE 5 SUSPENSION SYSTEM

The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.

Features

• Increased wheel travel and ride quality over stock
• Shocks are fully rebuildable and revalveable
• Bolt-on design means no cutting or welding necessary for install
• Improved vehicle dynamics and decreased body roll
• Height adjustable coilovers provide 1.5-3.5" of lift height
• ICON engineered dual rate rear coil springs

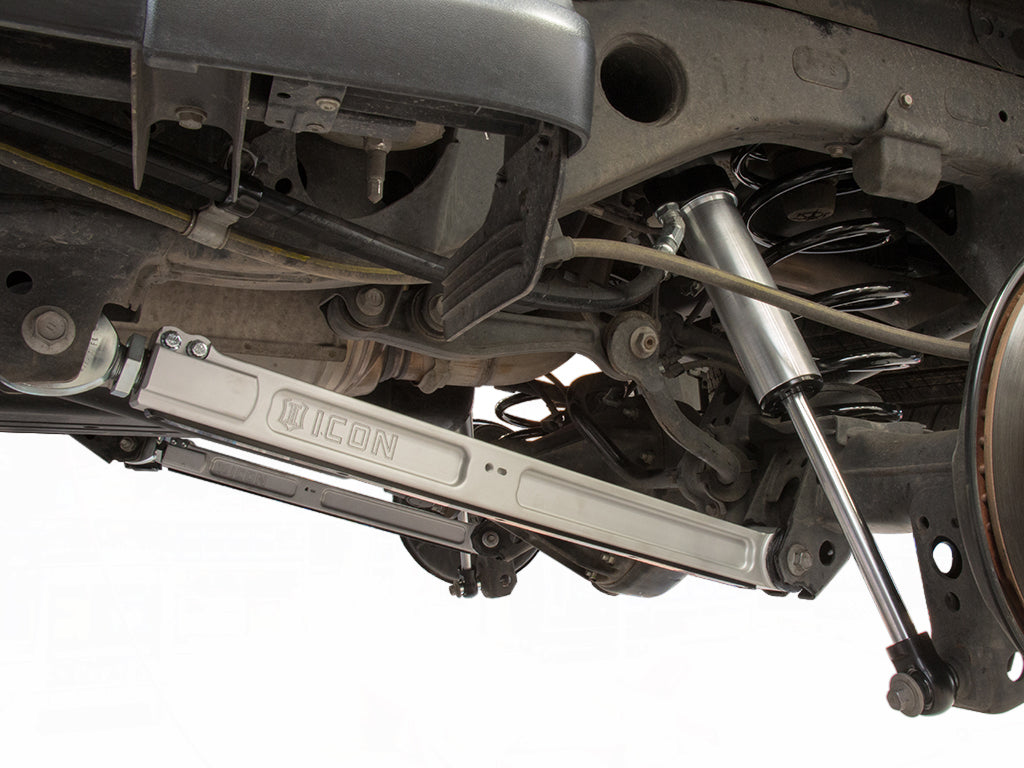

• Billet Aluminum rear lower links offer on-vehicle pinion angle adjustment
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• CDCV technology allows for quick and easy compression damping adjustment without the need for tools

Specifications

Note: OEM Wheels & Tires Fitment: Yes Ships in multiple boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT. APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.

Short Description: SUSPENSION SYSTEM

Invoice Description: 08-UP LC200 SERIES STAGE 5 SUSP SYSTEM

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: No Warranty
