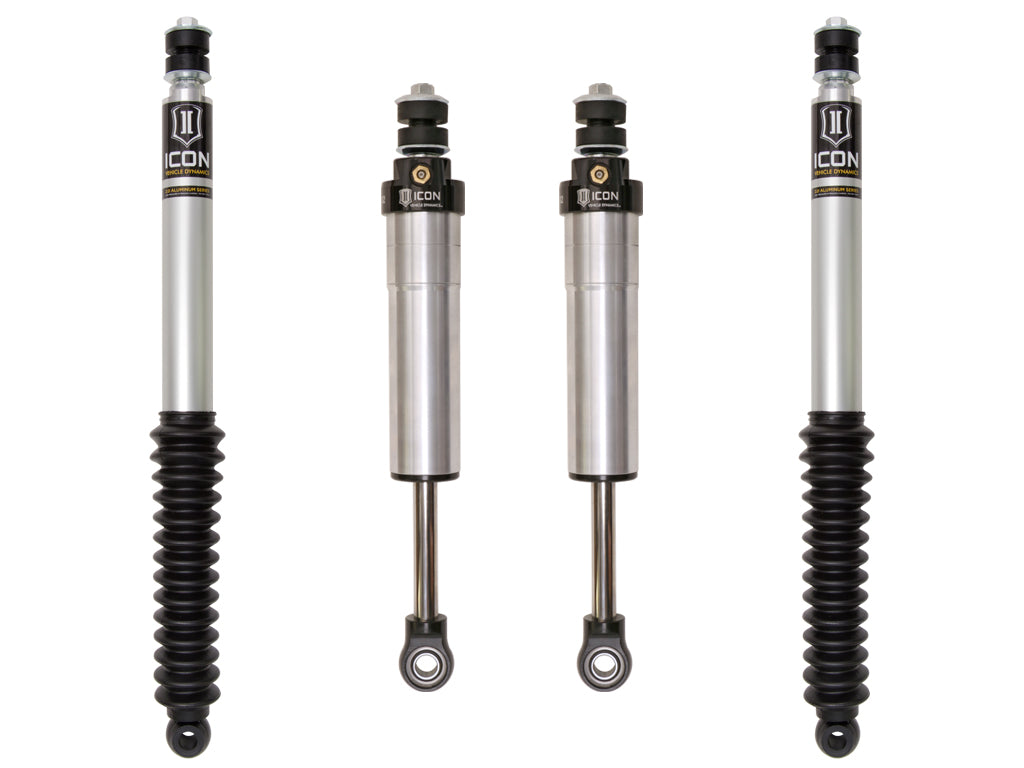

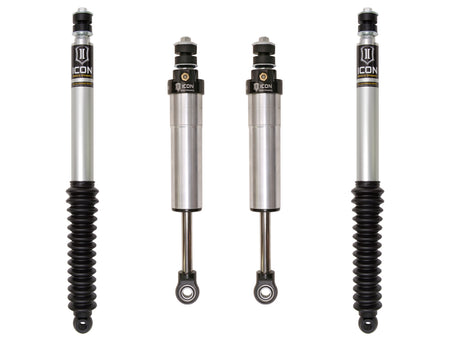

ICON Vehicle Dynamics K53081 - 98-07 LAND CRUISER 100 / LEXUS LX470 SERIES 0-2" STAGE 1 SUSPENSION SYSTEM
Couldn't load pickup availability
ICON 2.5” suspension systems lift your Toyota LC100 while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Understanding this, ICON engineers have developed a unique 2.5 Aluminum Series front shock that can handle these demands. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. 2.0 Aluminum Series rear shocks are included in this stage to offer balanced damping front to rear.
Features & Benefits
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 6061 Aircraft grade aluminum CNC machined components
- 2.5 Aluminum Series front shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear IFP shock with 5/8" shaft
- 100% Bolt-on - no drilling, cutting or welding necessary for install
Specifications
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | No |
| Recommended Aftermarket Wheels | 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Lower Mount Type | Eyelet |
| OEM Wheels & Tires Fitment | Yes |
| Title | ICON 1998-2007 Toyota Land Cruiser/Lexus LX470, 0-2" Lift, Stage 1 Suspension System |
| Damping Type | Oil |
| Grade Type | Performance |
| Cylinder Color | Silver |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Gas Charged | Yes |
| Shaft Material | Chrome |
Installation Guide: Download PDF
