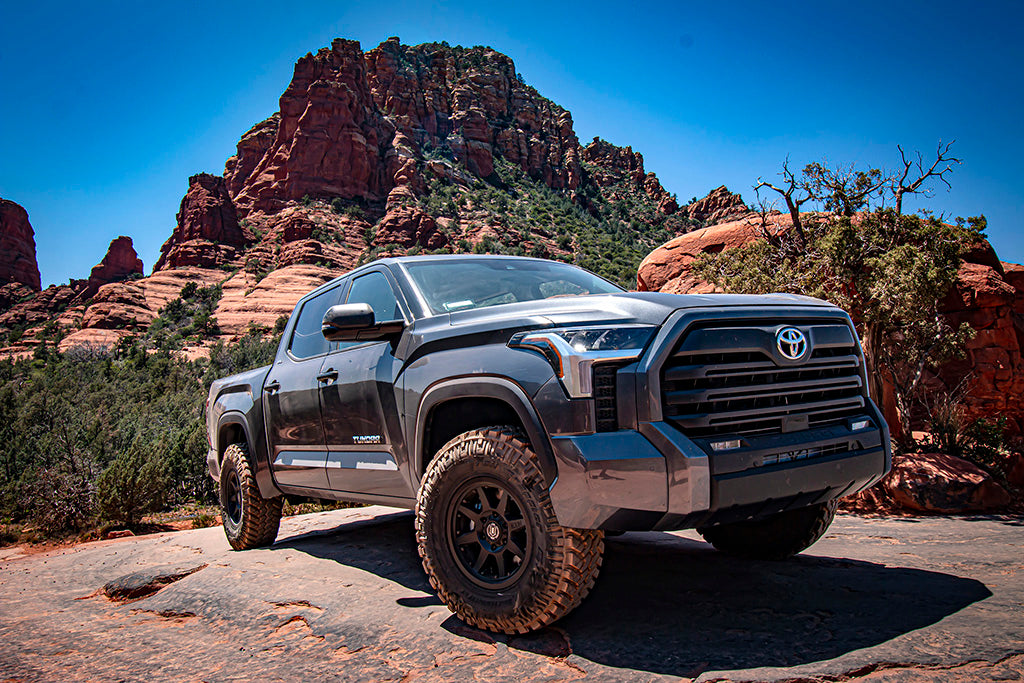

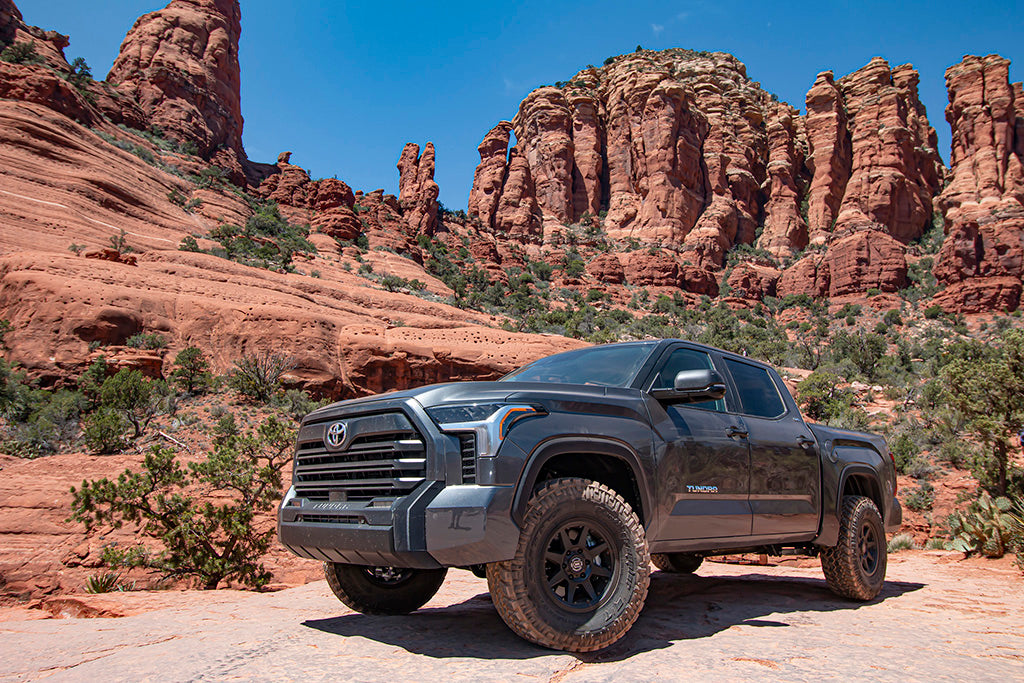

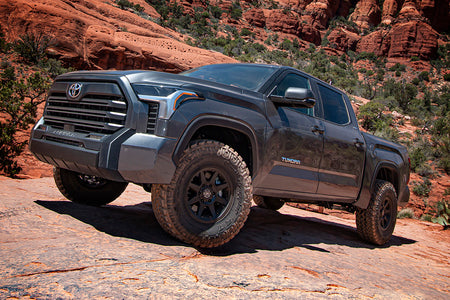

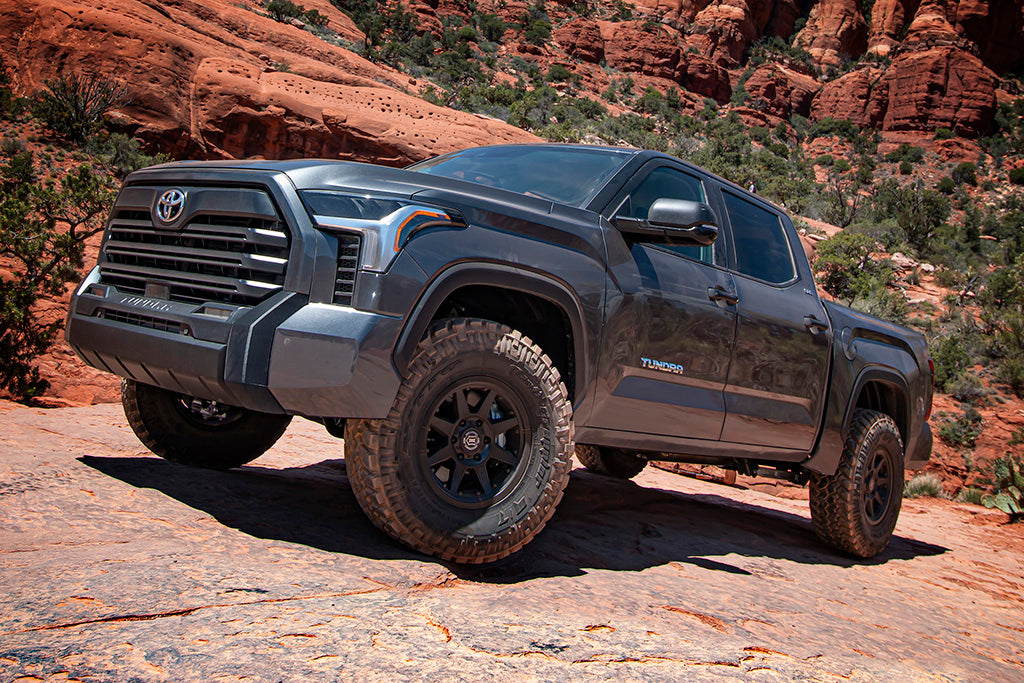

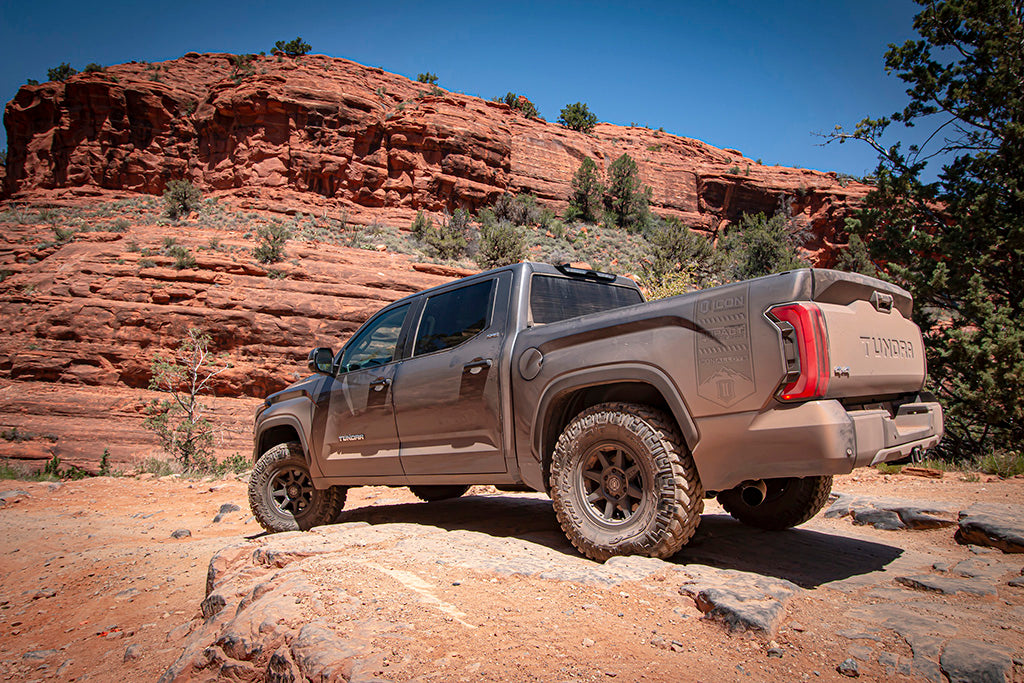

ICON Vehicle Dynamics K53192T - 22-25 TUNDRA 2-3" STAGE 2 SUSPENSION SYSTEM TUBULAR
Couldn't load pickup availability
Stage 2 includes a pair of 2.5 EXP Series coilovers for 2-3” of front lift, improved performance, and 35” tire fitment. Tubular UCAs for alignment correction are included with 2.0 Series rear shocks to balance the tuning from front to rear.
The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2022-2025 Toyota Tundra builds on ICON's 2.5 EXP Shock Kit with the addition of tubular front upper control arms, providing proper alignment at taller ride heights, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.
Features & Benefits
- Vehicle specific design for 2022-2025 Toyota Tundra
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 2-3” of front lift over stock with the use of snap ring and included tubular UCAs
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Control Arm | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Bushings Included | Yes |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Minimum Lift Front | 2 IN |
| Rear Shock Body Diameter | 2 IN |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift | 3 IN |
| Maximum Lift Front | 3 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Title | ICON 2022-2025 Toyota Tundra, 2-3" Lift, Stage 2, 2.5 EXP Suspension System, Tubular |
| Front Reservoir Style | Internal |
| Rear Reservoir Style | Internal |
| Reservoir Style | Internal |
| Grade Type | Performance |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT |
| Add-On Part | 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT |
| Add-On Part | 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT |
| Add-On Part | 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT |
| Add-On Part | 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
Installation Guide: Download PDF
