ICON Vehicle Dynamics K53201TS - 22-25 TUNDRA 2-3.5" STAGE 11 SUSPENSION SYSTEM TUBULAR CDCV (TRD)
Couldn't load pickup availability

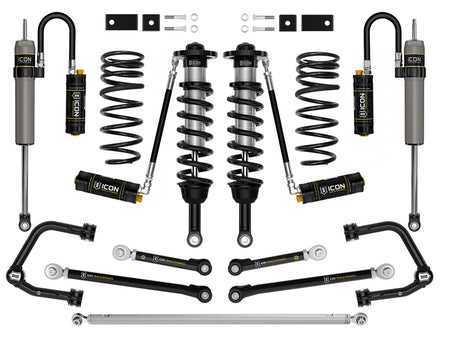

Stage 11 includes remote res coilovers for 1.25-3.5” of lift, better off-road performance and 35” tire fitment. Tubular UCAs, links, 2.5 Series remote reservoir shocks, with triple rate rear coils and track bar. CDCV for damping adjustment.
The ICON Vehicle Dynamics Stage 11 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 10 system with the addition of triple rate rear coils springs and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet aluminum rear links, a 2.5 Series CDCV remote reservoir front coilover shock and tubular front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series CDCV rear remote reservoir shocks.
Features & Benefits
- Vehicle specific design for 2022-2025 Toyota Tundra
- Triple rate rear coil springs improve performance and ride quality while providing .75" of rear lift (TRD models)
- On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Rebound | No |
| Active or Passive Suspension | Passive |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Bushings Included | Yes |
| Adjustable Compression | Yes |
| Adjustable Control Arm | Yes |
| Adjustable Damping | Yes |
| Minimum Lift Rear | .75 IN |
| Maximum Lift Rear | 1.25 IN |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Coil Quantity Front | 2 |
| Minimum Lift Front | 2 IN |
| Front Shock Body Diameter | 2.5 IN |
| Rear Shock Body Diameter | 2.5 IN |
| Maximum Lift | 3.5 IN |
| Maximum Lift Front | 3.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Spring Color | Black |
| Damping Adjustment Type | Manual |
| Grade Type | Performance |
| Rear Spring Rate Type | Progressive Triple Rate |
| Front Reservoir Style | Remote |
| Rear Reservoir Style | Remote |
| Reservoir Style | Remote |
| Spring Material | Steel |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Front Spring Rate Type | Linear |
| Title | ICON 2022-2025 Toyota Tundra, 2-3.5" Lift, Stage 11 (TRD), 2.5 Suspension System, Tubular, CDCV |
| Add-On Part | 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT |
| Add-On Part | 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
