ICON Vehicle Dynamics K53204S - 22-25 TUNDRA 1.25-3.5" STAGE 14 SUSPENSION SYSTEM BILLET (TRD)
Couldn't load pickup availability
Stage 14 includes remote res coilovers for 1.25-3.5” of lift, performance and 35” tire fitment. Billet UCAs, links, rear coils, track bar, and 2.5 Series remote reservoir shocks for balanced shock tuning. CDEV for active damping adjustment.
The ICON Vehicle Dynamics Stage 14 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 13 system with addition of triple rate rear coils springs and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the rear coils and track bar, a 2.5 Series CDEV remote reservoir front coilover shock and billet aluminum front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series CDEV rear remote reservoir shocks with billet upper and lower rear links.
Features & Benefits
- Vehicle specific design for 2022-2025 Toyota Tundra
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Triple rate rear coil springs improve performance and ride quality while providing .75" of rear lift (TRD models)
- On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 1.252-3.5” of front lift over stock when used with included billet aluminum UCAs

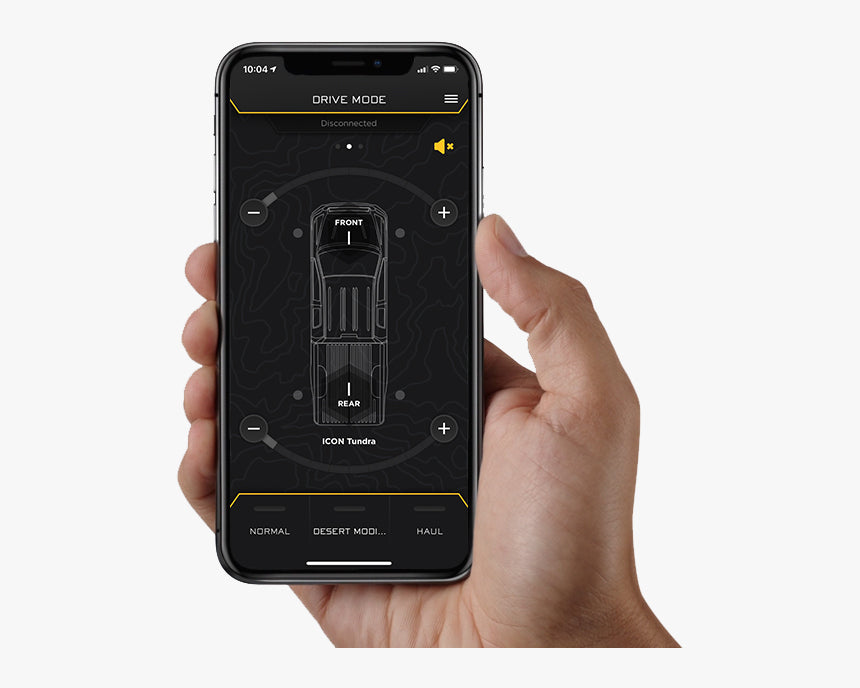

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Active |
| Adjustable Rebound | No |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Bushings Included | Yes |
| Adjustable Compression | Yes |
| Adjustable Control Arm | Yes |
| Adjustable Damping | Yes |
| Minimum Lift Front | .75 IN |
| Minimum Lift Rear | .75 IN |
| Maximum Lift Rear | 1.25 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Coil Quantity Front | 2 |
| Front Shock Body Diameter | 2.5 IN |
| Rear Shock Body Diameter | 2.5 IN |
| Maximum Lift | 3.5 IN |
| Maximum Lift Front | 3.5 IN |
| Spring Color | Black |
| Damping Adjustment Type | Electronic |
| Title | ICON 2022-2025 Toyota Tundra, 1.25-3.5" Lift, Stage 14 (TRD), 2.5 Suspension System, Billet |
| Grade Type | Performance |
| Rear Spring Rate Type | Progressive Triple Rate |
| Front Reservoir Style | Remote |
| Rear Reservoir Style | Remote |
| Reservoir Style | Remote |
| Spring Material | Steel |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Front Spring Rate Type | Linear |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT |
| Add-On Part | 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
