ICON Vehicle Dynamics K53214 - 22-25 TUNDRA 1.25-3.25" STAGE 4 3.0 SUSPENSION SYSTEM BILLET
Couldn't load pickup availability
Stage 4 includes 3.0 remote reservoir coilovers for 1.25-3.25” of lift, max off-road performance and 35” tire fitment. Billet UCAs, links and 2.5 Series remote reservoir shocks for balanced shock tuning. CDEV for active damping adjustment.
The ICON Vehicle Dynamics Stage 4 3.0 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 1 3.0 suspension system with the upgrade to CDEV and ICON Intelligent control (IIC) for in vehicle, active compression damping adjustment. To compliment the 3.0 Series coilover shocks, 2.5 Aluminum Series CDEV rear remote reservoir shocks are included along with billet aluminum front upper control arms and a billet rear upper/lower link combo, and a front sway bar drop kit. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.
Features & Benefits
- Vehicle specific design for 2022-2025 Toyota Tundra
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance, 20% increase in wheel travel, and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
- Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

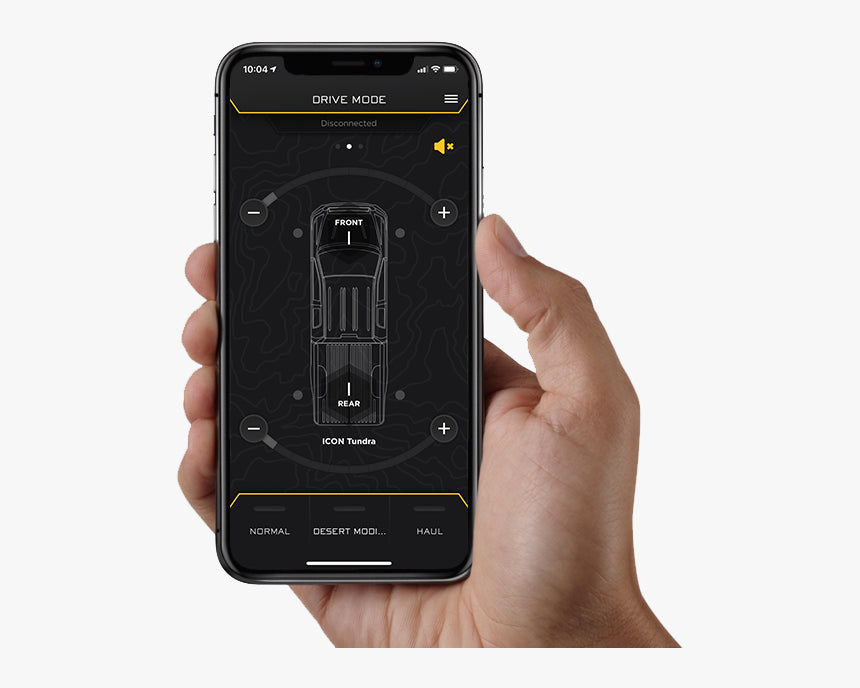

- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Active |
| Adjustable Rebound | No |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Bushings Included | Yes |
| Adjustable Compression | Yes |
| Adjustable Control Arm | Yes |
| Adjustable Damping | Yes |
| Minimum Lift Front | .75 IN |
| Coils Quantity Front | 2 |
| Coil Quantity Front | 2 |
| Rear Shock Body Diameter | 2.5 IN |
| Front Shock Body Diameter | 3 IN |
| Maximum Lift | 3.25 IN |
| Maximum Lift Front | 3.25 IN |
| Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed |
| Damping Adjustment Type | Electronic |
| Title | ICON 2022-2025 Toyota Tundra, 1.25-3.25" Lift, Stage 4, 3.0 Suspension System, Billet |
| Grade Type | Performance |
| Front Reservoir Style | Remote |
| Rear Reservoir Style | Remote |
| Reservoir Style | Remote |
| Spring Material | Steel |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Front Spring Rate Type | Linear |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR |
| Add-On Part | 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT |
| Add-On Part | 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT |
| Add-On Part | 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT |
| Add-On Part | 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
