ICON Vehicle Dynamics K53222T - 05-23 TACOMA 1-2" STAGE 3 EXP SUSPENSION SYSTEM TUBULAR
Couldn't load pickup availability
The ICON EXP suspension system for the Toyota Tacoma represents our entry level performance suspension system providing improved on- and off-road performance as well as front-end lift for a proper stance and fitment of up to 33" tires.

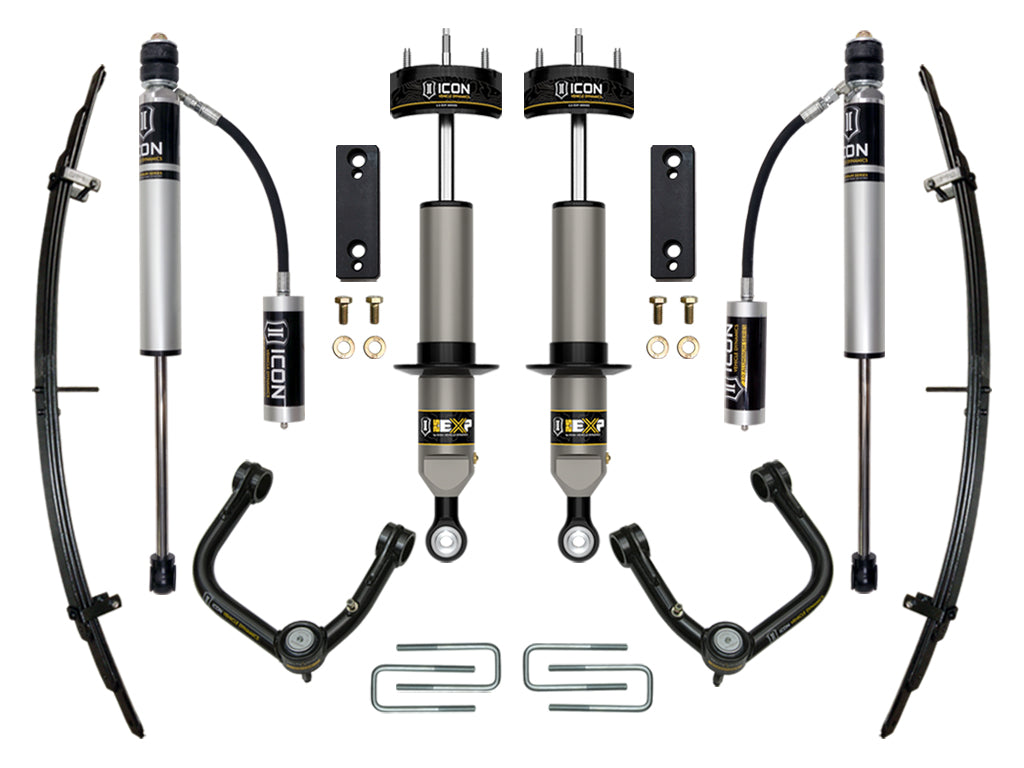

The ICON Vehicle Dynamics Stage 3 EXP suspension system for the 2005-2023 Toyota Tacoma provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33" tires. This system features the innovative new 2.5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf, and our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.
Features & Benefits
- Vehicle specific design for 2005-2023 Toyota Tacoma
- All ICON shock absorbers are fully rebuildable and re-tunable
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 1-2” of front lift over stock with the use of snap ring
- Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
- Allows for full wheel travel without overstressing OE components
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10731700) Delta Joint for extended longevity
- Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
- 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Adjustable Damping | No |
| Minimum Lift Front | 1 IN |
| Maximum Lift Rear | 1.5 IN |
| Maximum Lift Front | 2 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Minor fender trimming may be required) |
| Title | ICON 2005-2023 Toyota Tacoma, 0-2" Lift, Stage 3 EXP Suspension System, Tubular UCA |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset |
| Grade Type | Performance |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Rear Spring Rate Type | Linear |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
