ICON Vehicle Dynamics K53231 - 23-25 SEQUOIA 0-2.13" STAGE 1 SUSPENSION SYSTEM
Couldn't load pickup availability
The ICON Stage 1 suspension system for the Sequoia represents our entry level performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.

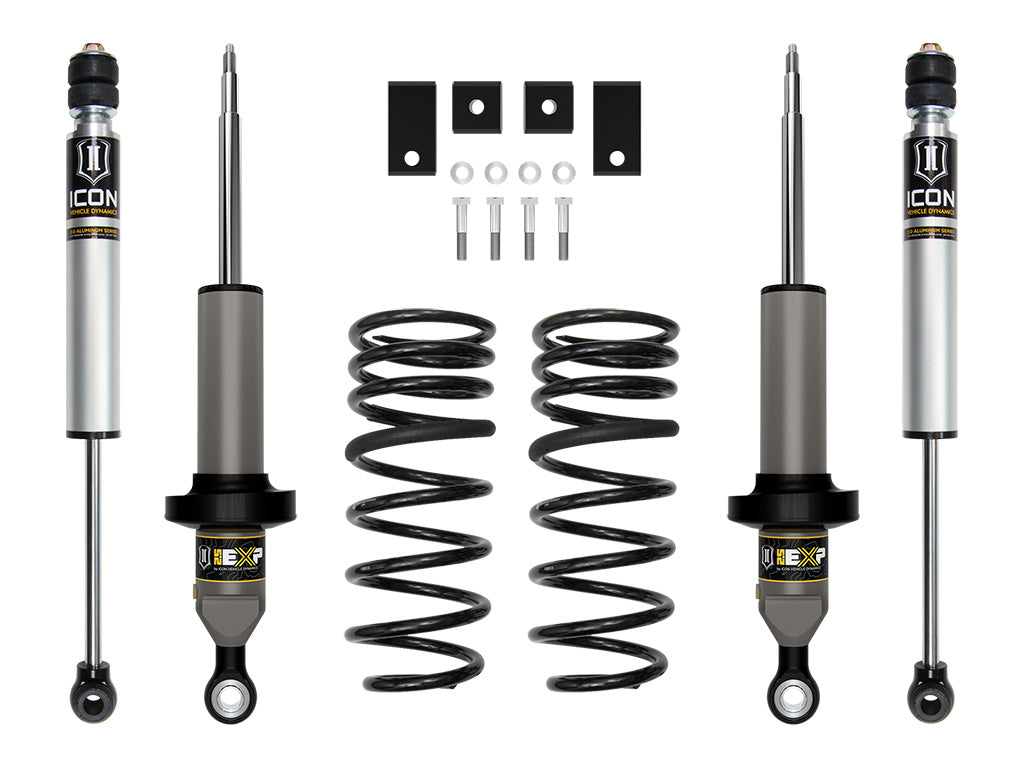

The ICON Vehicle Dynamics Stage 1 complete suspension system for the 2023-2025 Toyota Sequoia represents our entry level performance suspension system, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.
Features & Benefits
- Vehicle specific design for 2023-2025 Toyota Sequoia

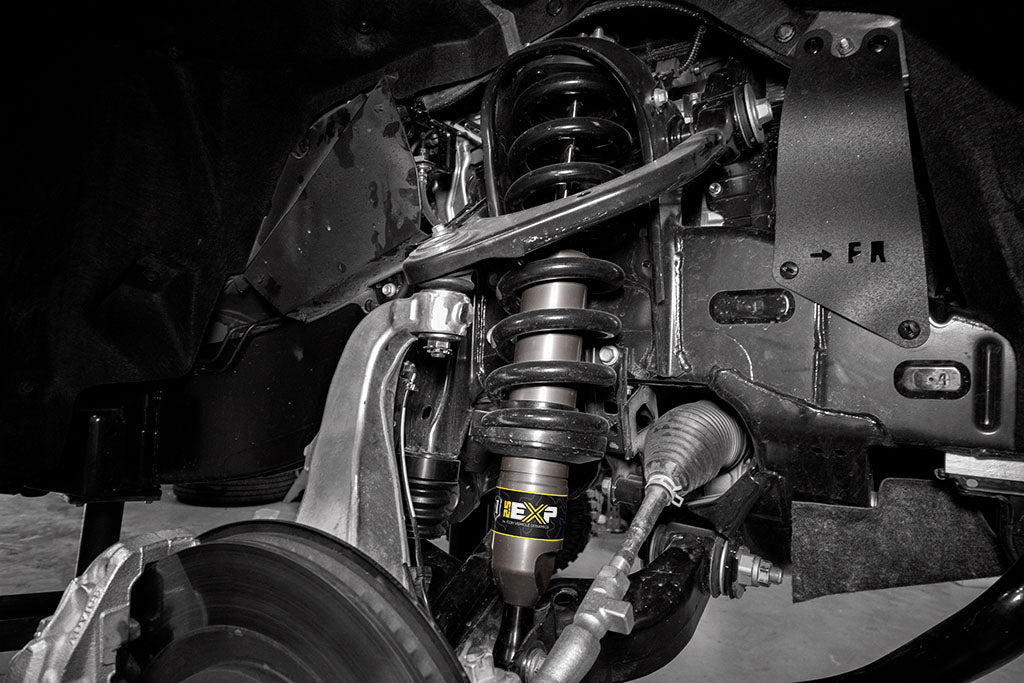

- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2.13” of front lift over stock with the use of snap ring
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package

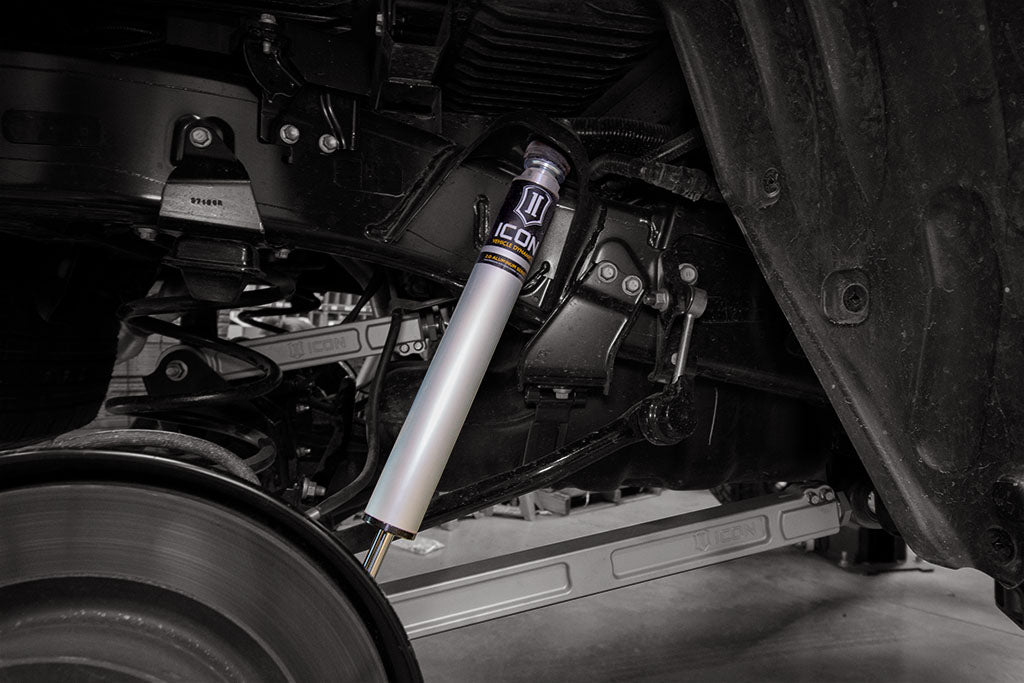

- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Active or Passive Suspension | Passive |
| Coils Quantity Rear | 2 |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Minimum Lift Front | 0 IN |
| Minimum Lift Rear | 0 IN |
| Maximum Lift Rear | 2 IN |
| Rear Shock Body Diameter | 2 IN |
| Maximum Lift | 2.13 IN |
| Maximum Lift Front | 2.13 IN |
| Front Shock Body Diameter | 2.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Spring Color | Black |
| Title | ICON 2023-2025 Toyota Sequoia, 0-2.13" Lift, Stage 1 Suspension System |
| Front Reservoir Style | Internal |
| Rear Reservoir Style | Internal |
| Reservoir Style | Internal |
| Grade Type | Performance |
| Rear Spring Rate Type | Progressive Dual Rate |
| Spring Material | Steel |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 58561DJ - 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT |
| Add-On Part | 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT |
| Add-On Part | 58461DJ - 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT |
| Add-On Part | 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
Installation Guide: Download PDF
