ICON Vehicle Dynamics K53232 - 23-25 SEQUOIA 0-2.13" STAGE 2 SUSPENSION SYSTEM BILLET
Couldn't load pickup availability
The ICON Stage 2 billet suspension system for the Sequoia provides improved performance, better alignment specs as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.

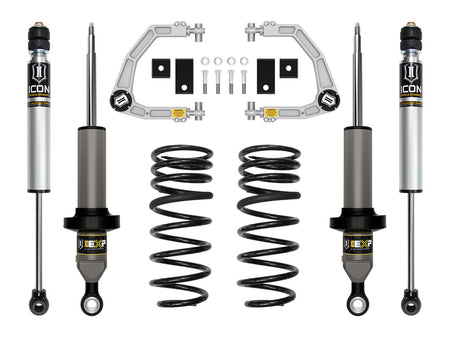

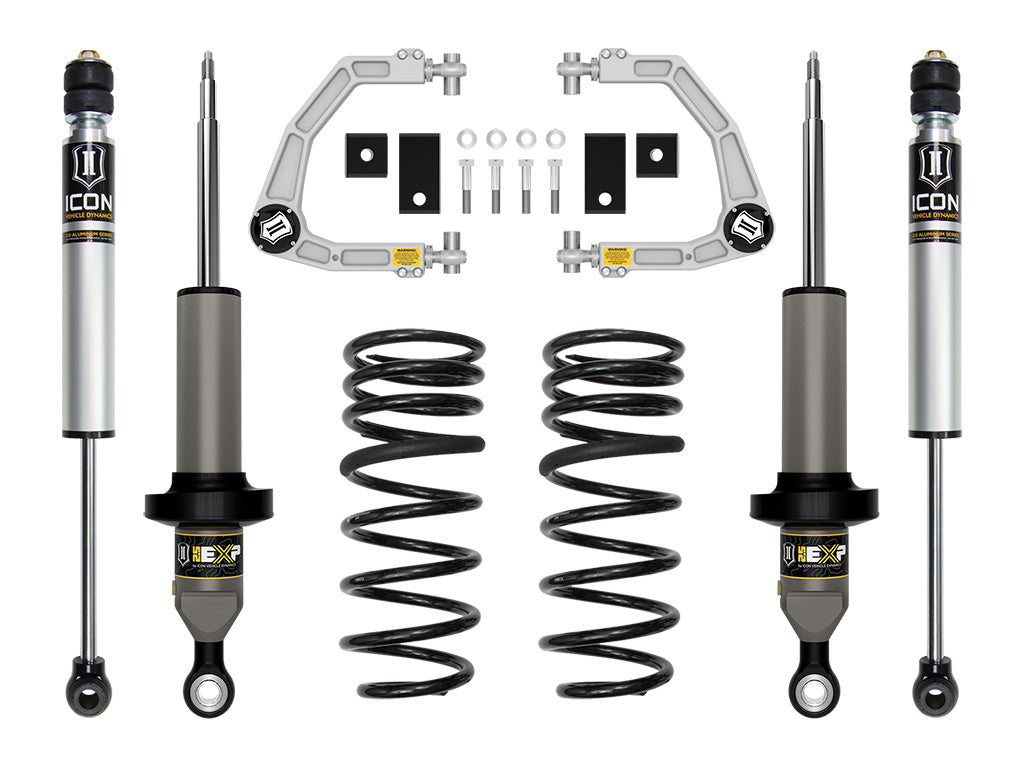

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2023-2025 Toyota Sequoia builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.
Features & Benefits
- Vehicle specific design for 2023-2025 Toyota Sequoia
- All ICON shock absorbers are fully rebuildable and re-tunable
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2.13” of front lift over stock with the use of snap ring
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift

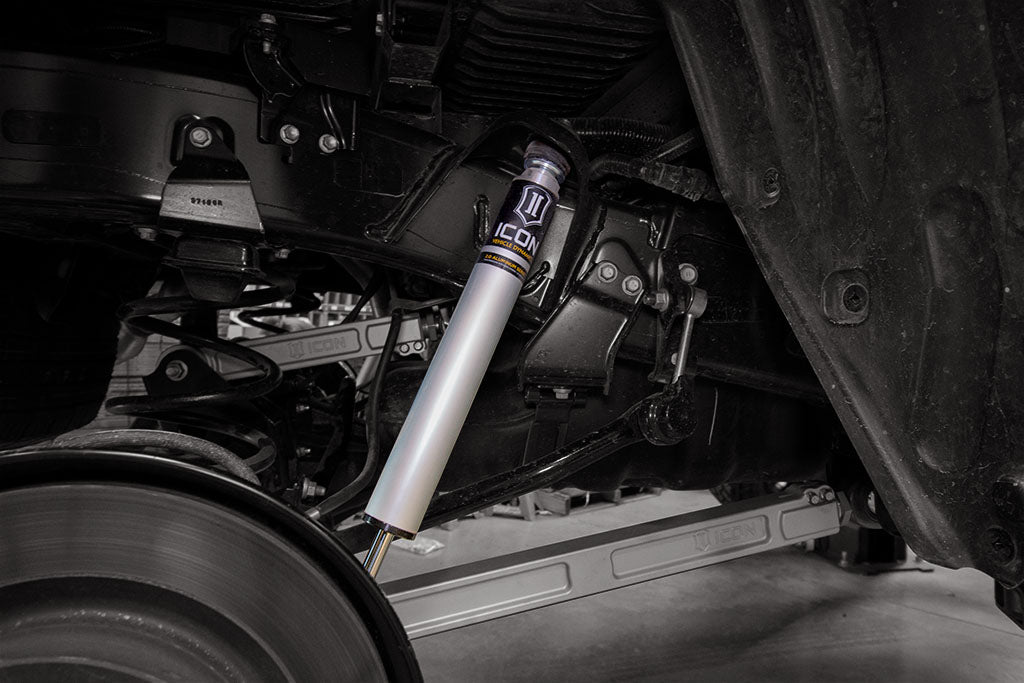

- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Control Arm | Yes |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushings Included | Yes |
| Coils Quantity Rear | 2 |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Minimum Lift Front | 0 IN |
| Minimum Lift Rear | 0 IN |
| Maximum Lift Rear | 2 |
| Rear Shock Body Diameter | 2 IN |
| Maximum Lift | 2.13 IN |
| Maximum Lift Front | 2.13 |
| Front Shock Body Diameter | 2.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Spring Color | Black |
| Title | ICON 2023-2025 Toyota Sequoia, 0-2.13" Lift, Stage 2 Suspension System, Billet UCA |
| Front Reservoir Style | Internal |
| Rear Reservoir Style | Internal |
| Reservoir Style | Internal |
| Grade Type | Performance |
| Rear Spring Rate Type | Progressive Dual Rate |
| Spring Material | Steel |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset |
| Add-On Part | 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT |
| Add-On Part | 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
Installation Guide: Download PDF
