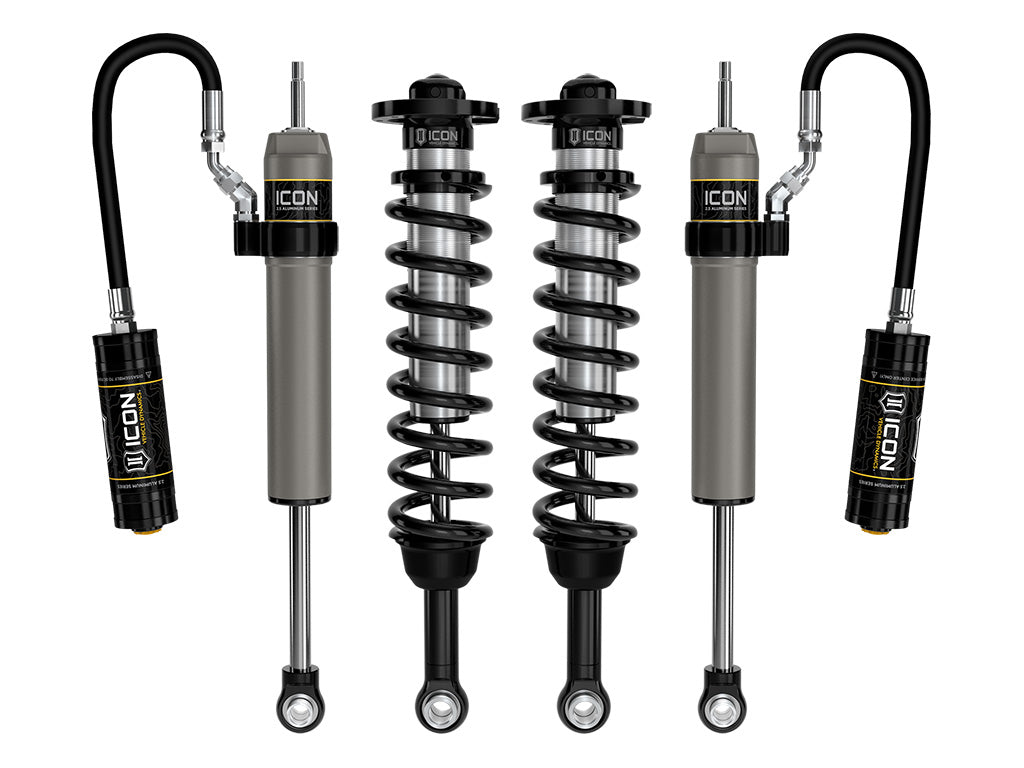

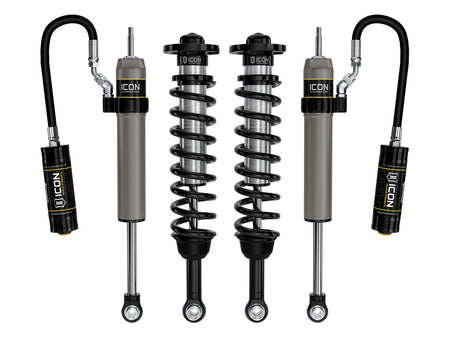

ICON Vehicle Dynamics K53261 - 22-23 LAND CRUISER 300 SERIES 1-3" STAGE 1 SUSPENSION SYSTEM

ICON suspension systems lift your Land Cruiser 300 while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

The 300 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all the sophistication it is still a very capable vehicle that sees use both on and off-road worldwide. While the 300 Series has exceptional ride characteristics in stock form, the suspension needs a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and developed several suspension systems that drastically increase the overall ability of the 2022-2023 Toyota Land Cruiser 300 Series. This Stage 1 system features the 2022-2023 Toyota Land Cruiser 300 Series VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 1-3” of lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Rounding out the Stage 1 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Land Cruiser 300 Series. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Land Cruiser.

Features

• Bolt-on design means no cutting or welding necessary for install
• Increased wheel travel and ride quality over stock
• Improved vehicle dynamics and decreased body roll

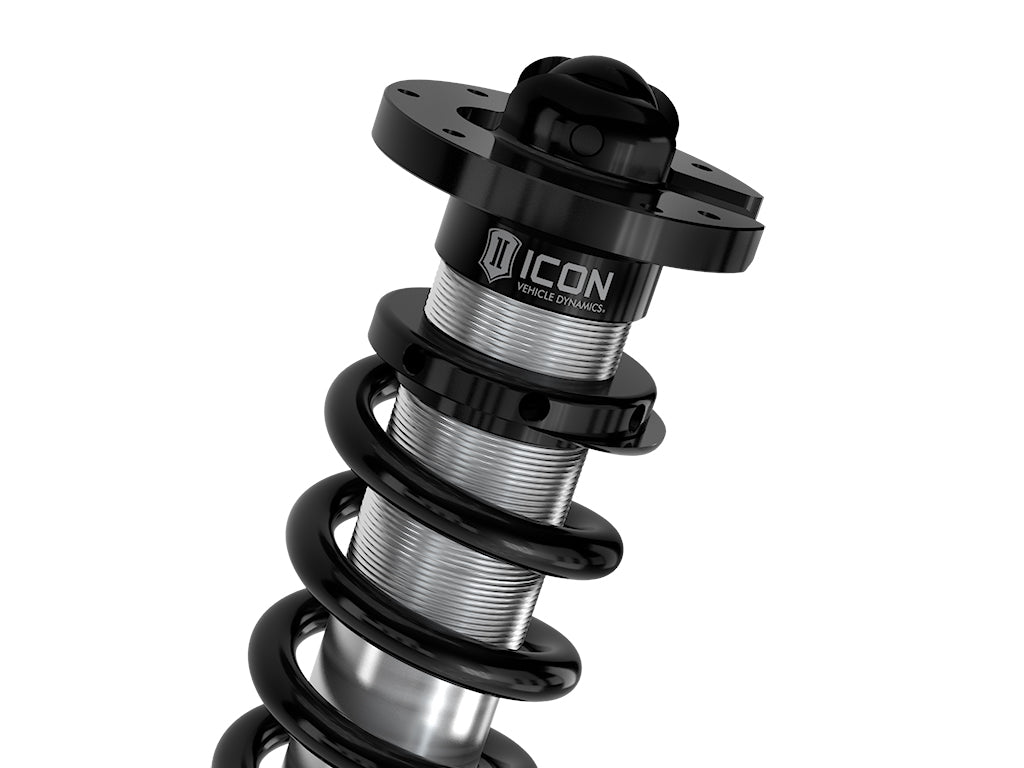

• Height adjustable coilovers provide 1-3" of front lift height
• ICON engineered front coilover springs
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

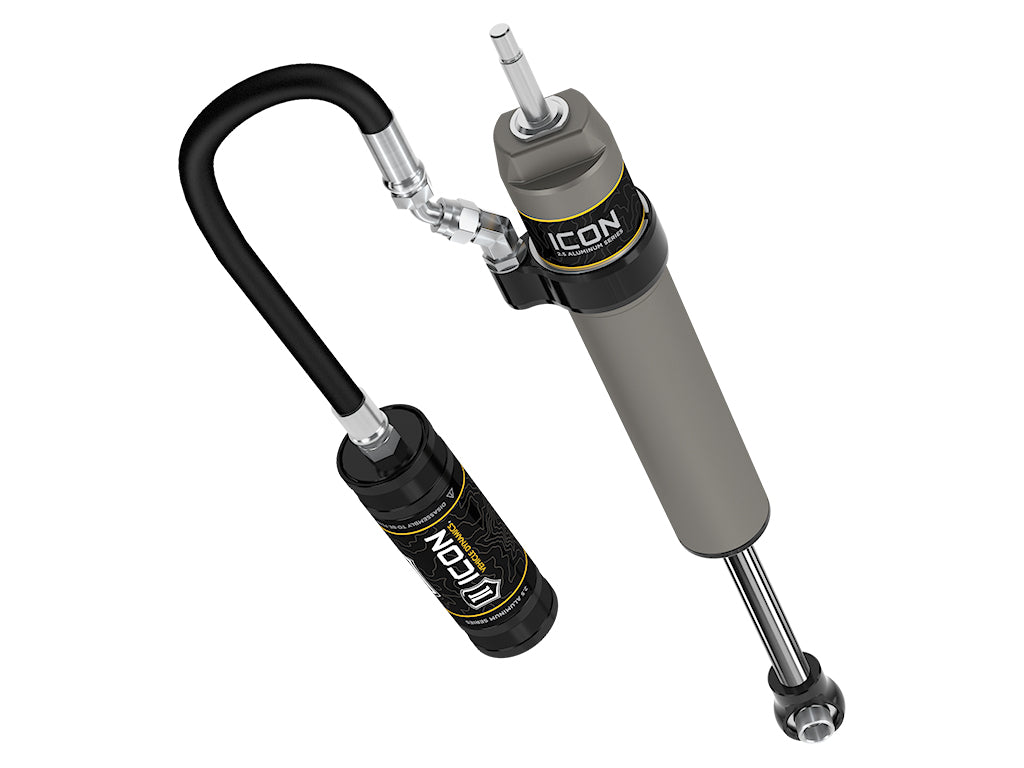

• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Shocks are fully rebuildable and revalveable

Specifications

Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. APPLICATION NOTE #142: NOT COMPATIBLE WITH VEHICLES EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION. TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock

Short Description: SUSPENSION SYSTEM

Invoice Description: K53261

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
