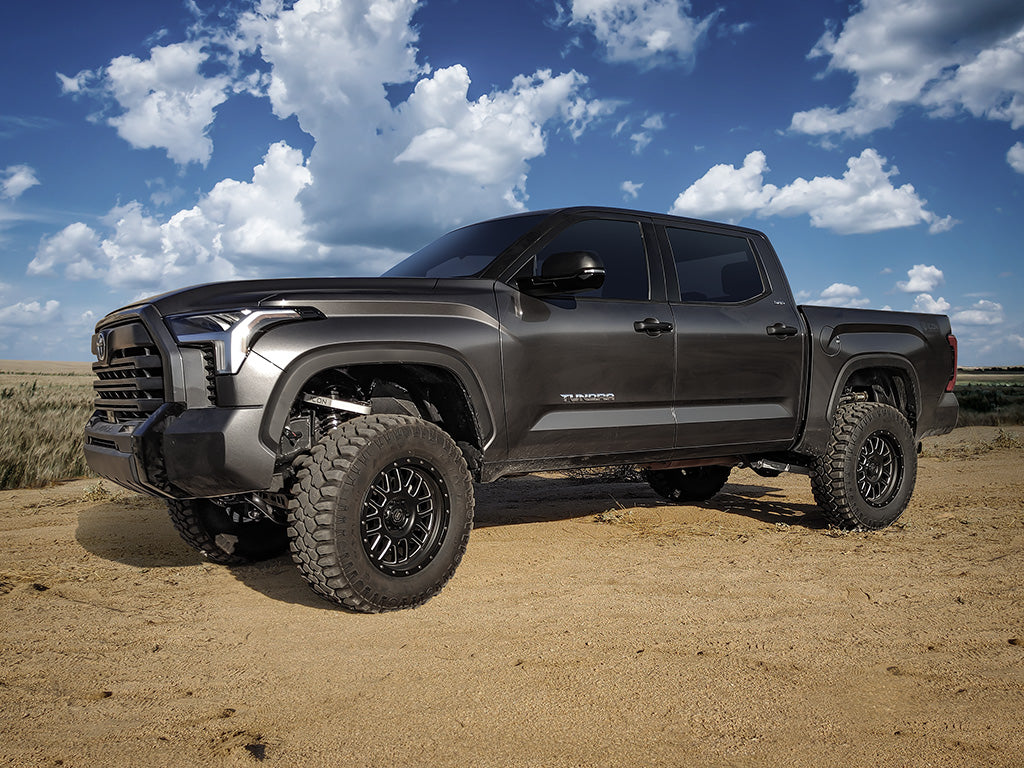

ICON Vehicle Dynamics K53271 - 22-24 TOYOTA TUNDRA 6" STAGE 1 SUSPENSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.
22-26 TOYOTA TUNDRA 6" STAGE 1 SUSPENSION SYSTEM

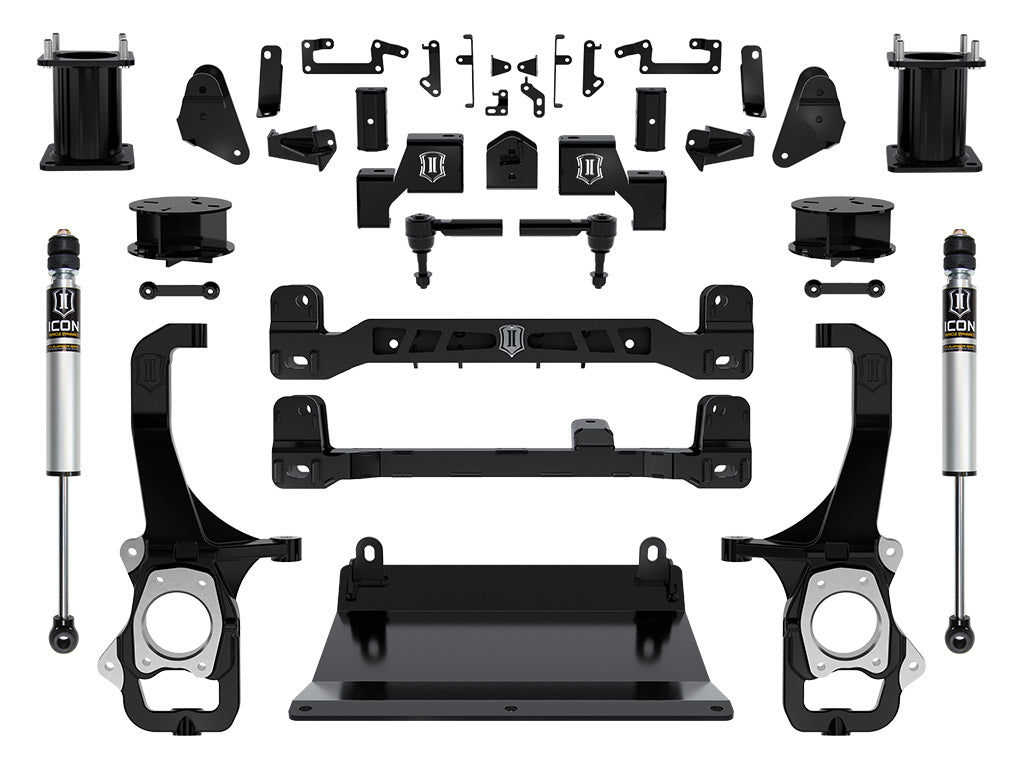

Features
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- 2.0 Aluminum Series rear shocks to improve rear suspension performance
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
- Maintains factory track width
- Front coilover spacer kit with heavy duty steel construction
- Provides 6" front suspension lift with only 4" of crossmember drop
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Maximum Lift | 6 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| Maximum Lift Front | 6 IN |
| Bushings Included | No |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Active or Passive Suspension | Passive |
| Grade Type | Performance |
| Add-On Part | 58561DJ - 22-26 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT |
| Add-On Part | 58461DJ - 22-26 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT |
| Maximum Lift Height Front | 6 IN |
| Maximum Lift Height Rear | 3 IN |
| Maximum Lift Rear | 3 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | No |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625β Backspace / 16mm Offset |
| Shocks Included | Yes |
| Strut(s) Included | No |
Note: OEM Wheels & Tires Fitment: No APPLICATION NOTE #381: Requires minimum of 20" diameter wheels Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625β Backspace / 16mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range. APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension. APPLICATION NOTE #144: Not Compatible With Trd Pro APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles APPLICATION NOTE #154: Not Compatible With Tundra Sr5 Equipped With Trd Sport Package APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Short Description: SUSPENSION SYSTEM
Invoice Description: K53271
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Knuckles, Fabricated Components
