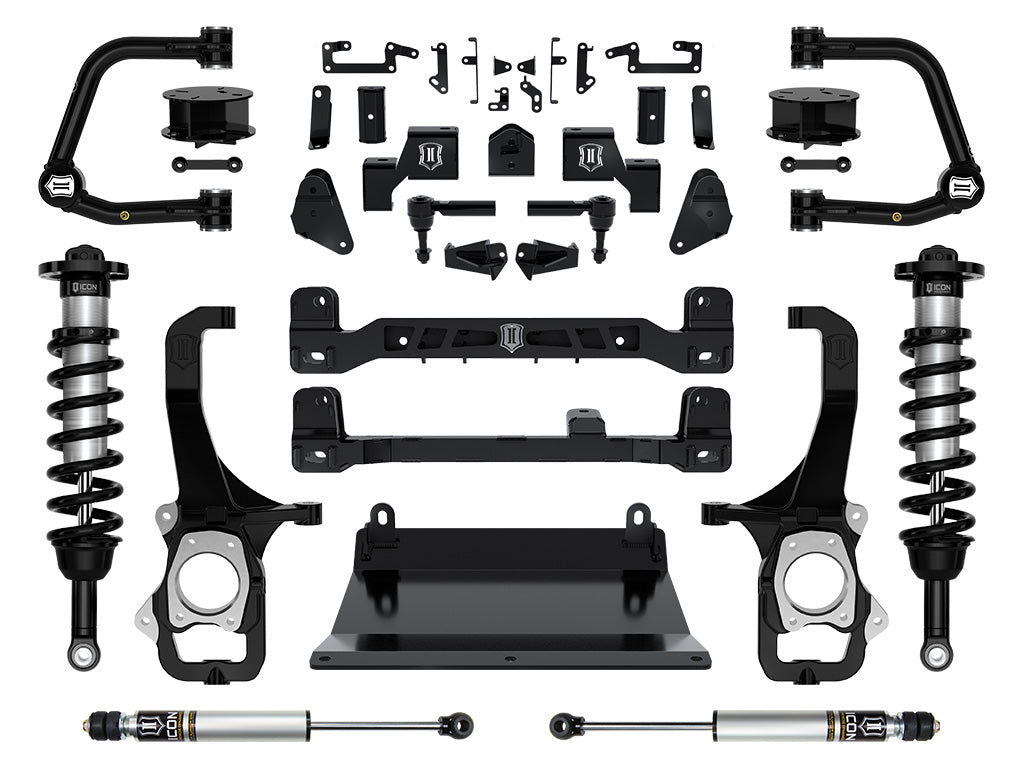

ICON Vehicle Dynamics K53272T - 22-24 TOYOTA TUNDRA 6" STAGE 2 SUSPENSION SYSTEM TUBULAR UCA
Regular price
$6,133.20 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability
Features & Benefits
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- 2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Coils Quantity Front | 2 |
| Rear Shock Body Diameter | 2 IN |
| Front Shock Body Diameter | 2.5 IN |
| Maximum Lift Rear | 3 IN |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Minimum Lift Front | 5 IN |
| Maximum Lift | 6 IN |
| Maximum Lift Front | 6 IN |
| Spring Color | Black |

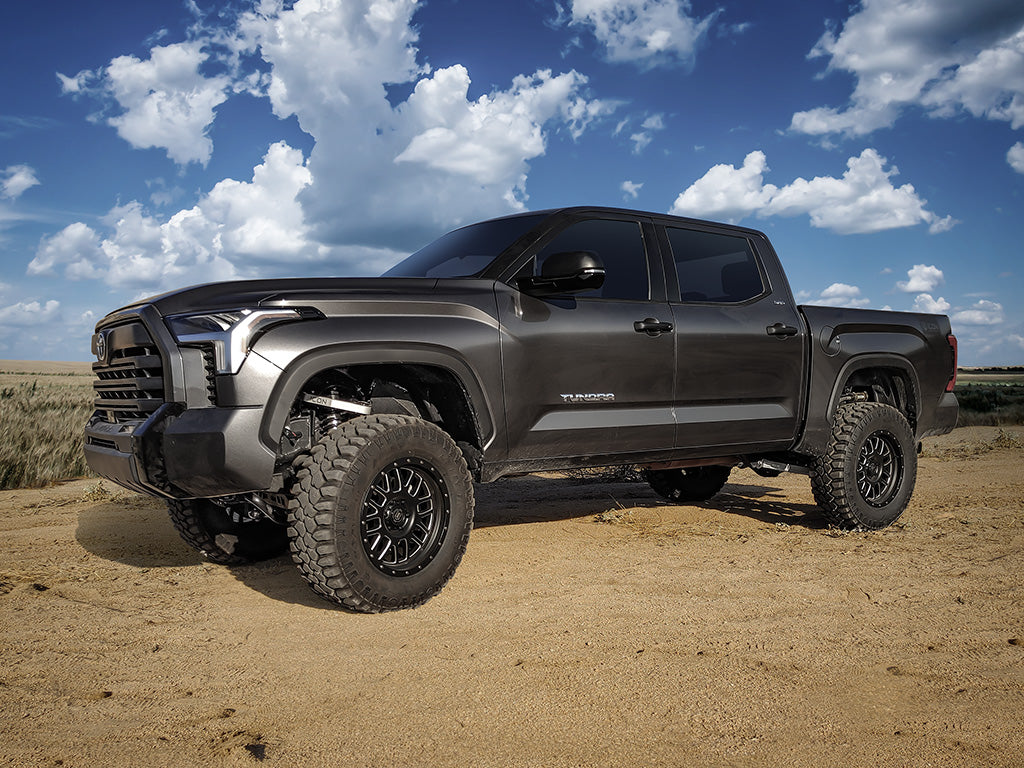

| Title | ICON 2022-2023 Toyota Tundra, 6" Lift Stage 2 Suspension System with Tubular Upper Control Arms |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset |
| Front Reservoir Style | Internal |
| Rear Reservoir Style | Internal |
| Bushings Included | No |
| Strut(s) Included | No |
| Adjustable Compression | No |
| Adjustable Control Arm | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| OEM Wheels & Tires Fitment | No |
| Active or Passive Suspension | Passive |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Front Spring Rate Type | Linear |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
