ICON Vehicle Dynamics K53275T - 22-24 TOYOTA TUNDRA 6" STAGE 5 SUSPENSION SYSTEM TUBULAR UCA
Product Availability Request
Fill the form and our team will contact you.
22-26 TOYOTA TUNDRA 6" STAGE 5 SUSPENSION SYSTEM TUBULAR UCA
Features

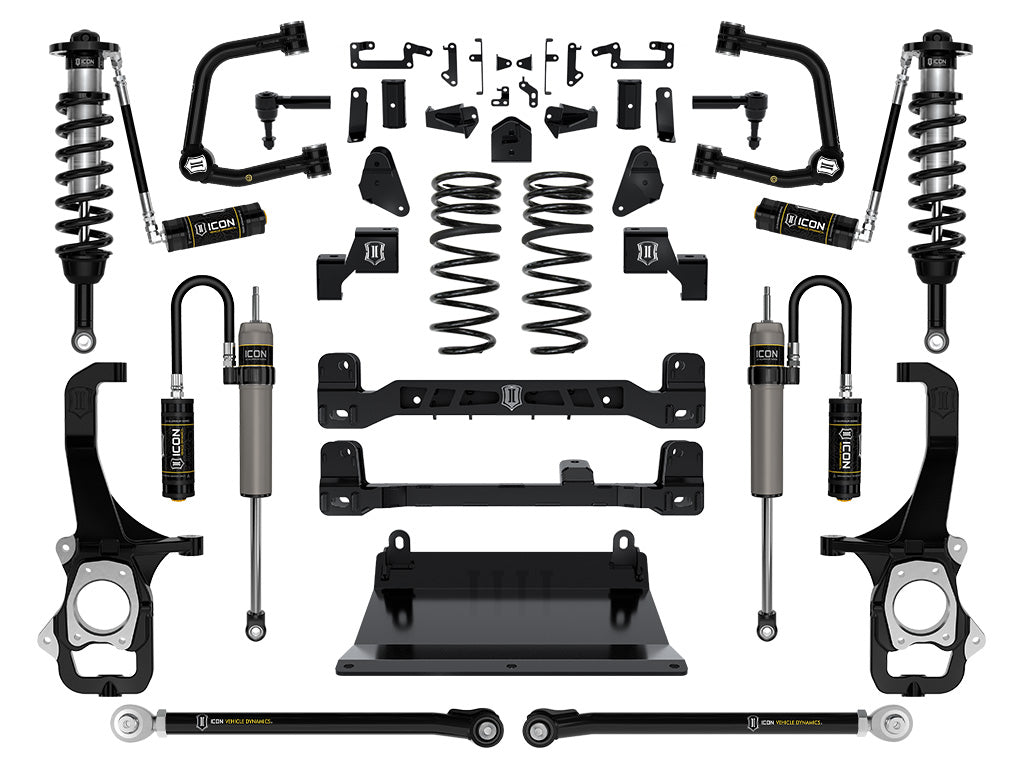

- 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
- Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6β of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Adjustable Control Arm | Yes |
| California Prop 65 Warning | Yes |
| Coil Quantity Front | 2 |
| Bushings Included | No |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Active or Passive Suspension | Passive |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Closed |
| Coil Spring End 2 Type | Closed |
| Coil Spring Material | Steel |
| Coil Spring Maximum Inside Diameter | 3 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate | 700 PPI |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 6 IN |
| Maximum Lift Front | 6 IN |
| Maximum Lift Height Front | 6 IN |
| Maximum Lift Height Rear | 3.5 IN |
| Maximum Lift Rear | 3.5 IN |
| Minimum Lift Front | 5 IN |
| Minimum Lift Rear | 3 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | No |
| Rear Reservoir Style | Remote |
| Rear Shock Body Diameter | 2.5 IN |
| Rear Spring Rate | 330 PPI |
| Rear Spring Rate | 190 PPI |
| Rear Spring Rate | 116 PPI |
| Rear Spring Rate Type | Progressive Triple Rate |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625β Backspace / 16mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Strut(s) Included | No |
Note: OEM Wheels & Tires Fitment: No APPLICATION NOTE #405: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock. APPLICATION NOTE #406: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock. APPLICATION NOTE #407: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock. APPLICATION NOTE #408: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock. APPLICATION NOTE #450:Provides 3" of rear lift on a Tundra equipped with TRD Off-Road, TRD Sport, or TRD Rally suspension packages and TRD Pro. Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625β Backspace / 16mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle. APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range. APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension. APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #381: Requires minimum of 20" diameter wheels
Short Description: SUSPENSION SYSTEM
Invoice Description: K53275T
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Delta Joint Pros, Limited Lifetime-Knuckles, Upper Control Arms, Rear Links, Fabricated Components, Coil Springs
