ICON Vehicle Dynamics K6216 - 05-16 FORD F250/F350 STAGE 6 ULTIMATE FRONT END KIT
Couldn't load pickup availability
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components.
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components. Partnering with our friends at Dynatrac, ICON is happy to pair our suspension components with Dynatrac HD BallJoints to provide a complete front-end suspension solution to solve common steering problems that can lead to loose steering feel, decreased stability, erratic tracking down the road, uneven tire wear, and even death-wobble.
Features & Benefits

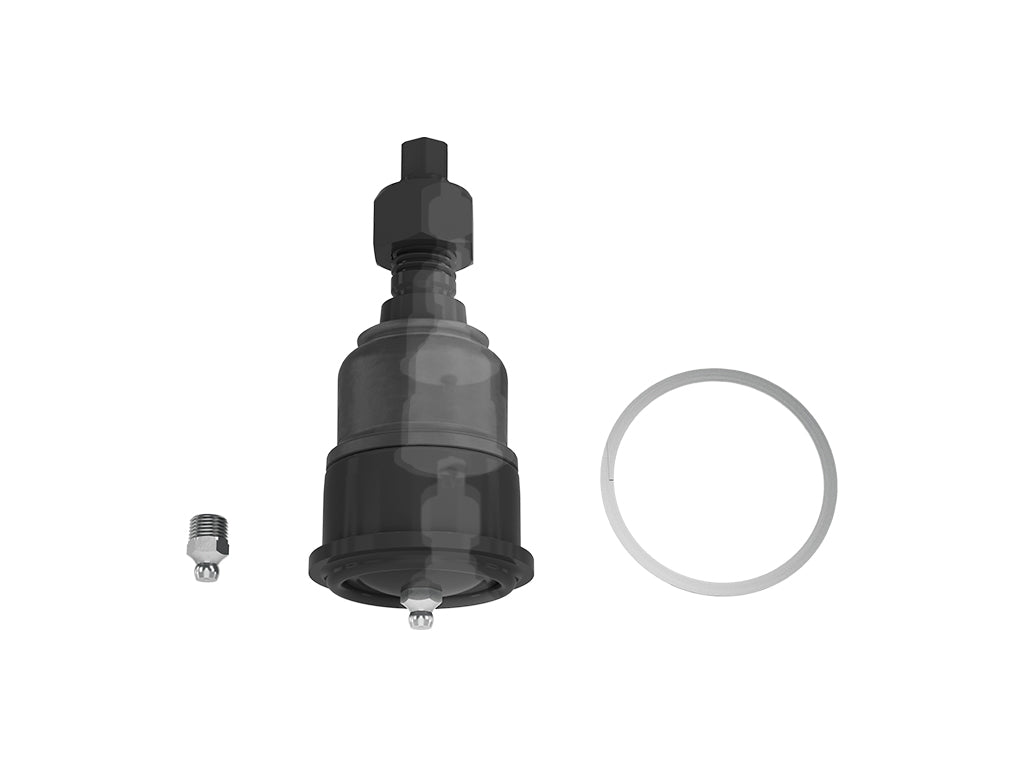

- Full set of genuine Dynatrac front upper and lower ball joints

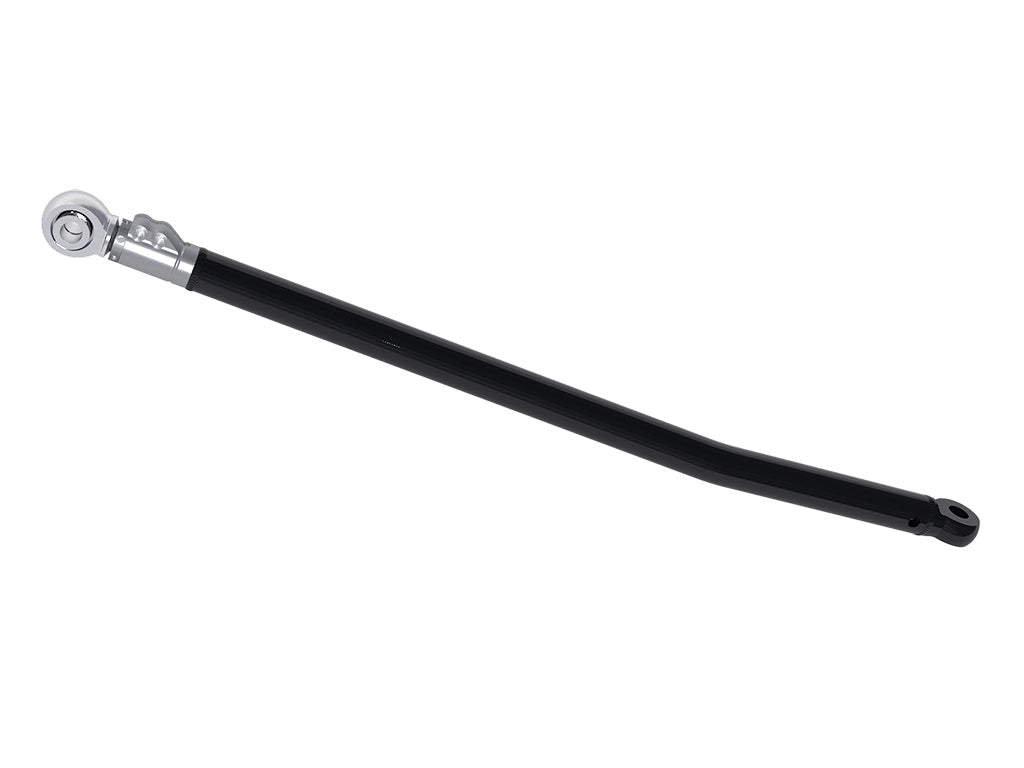

- On-vehicle adjustable track bar for precise track alignment using ICON’s double adjuster
- CNC machined and bent 1.625" X .250" wall 1026 DOM tubing

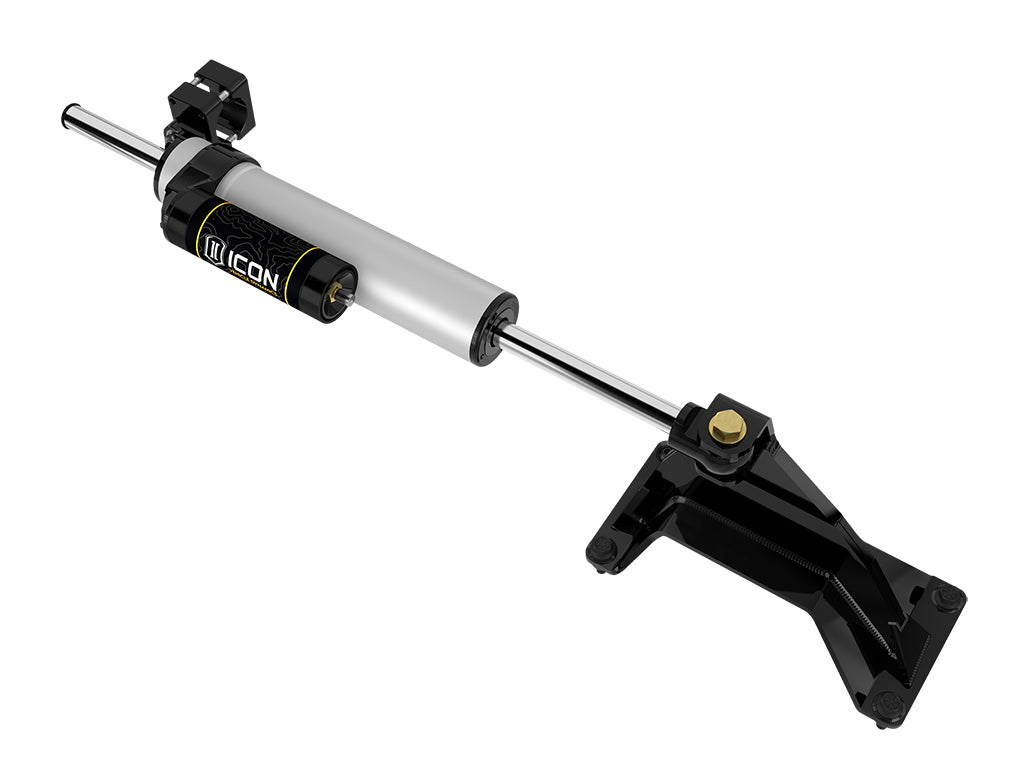

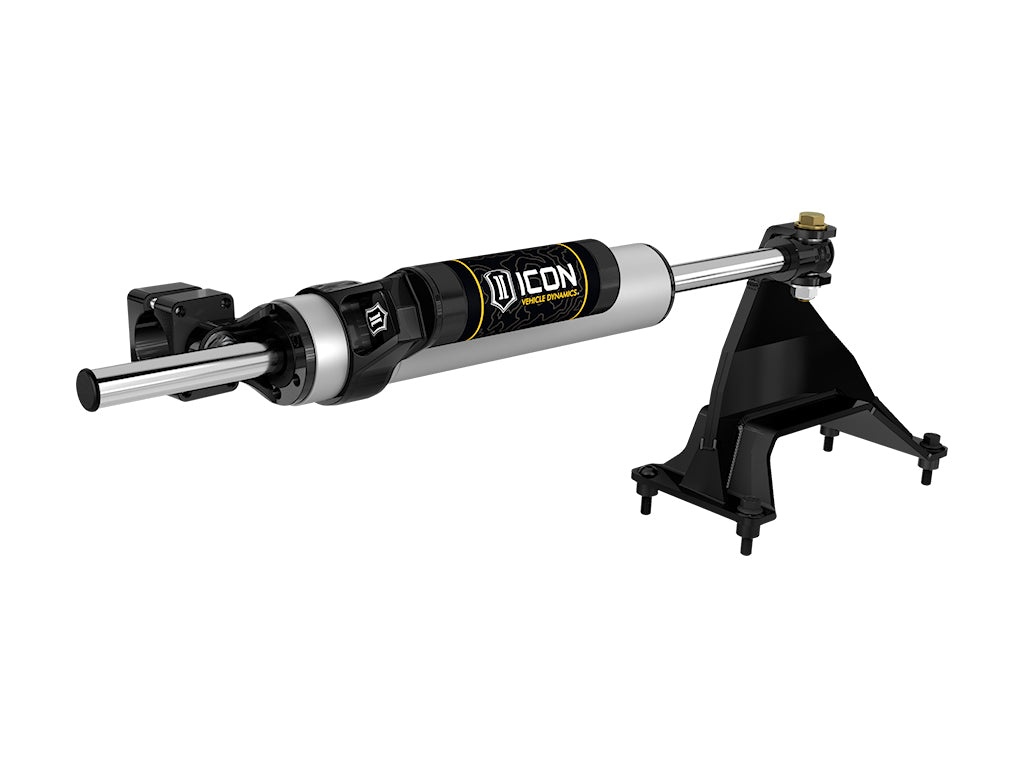

- Through shaft steering stabilizer design eliminates the push/pull sensation associated with traditional stabilizers
- Provides symmetrical steering feel throughout input range
- Drastically increased steering damping over stock unit
- Offers increased wheel travel compared to ICON's dual steering stabilizer kit
- Fully rebuildable ICON Vehicle Dynamics 2.5 Series shock
- Piggyback reservoir design
- 6061 hard anodized aluminum shock body provides excellent corrosion resistance
- Track bar ball joint is a direct press in replacement for OE axle or ICON track bars
- Improves steering feel and vehicle control
- Greaseable design ensures long service life
- Sealed dust boot prevents contamination
- Improved strength and rigidity over OEM track bar ball joint

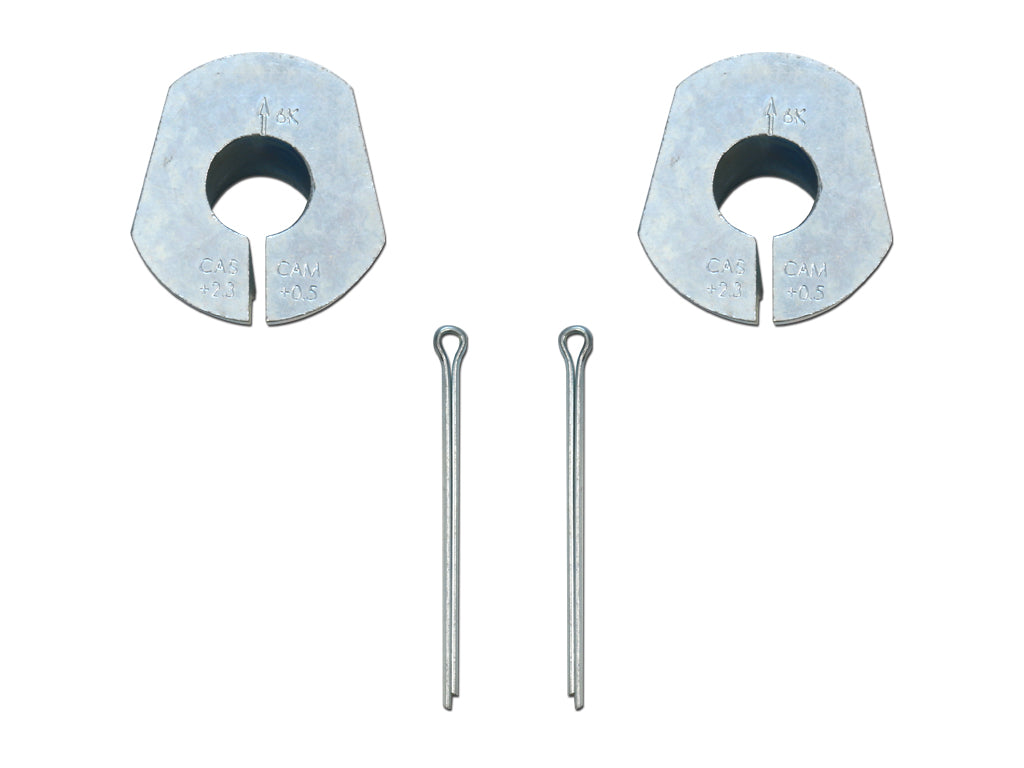

- Alignment cams add 2.3° of caster and .5° of camber over stock
- Ensures proper front-end alignment when installed in conjunction with compatible suspension lifts
- Zinc plated cams for corrosion resistance
- Includes new ball joint cotter pins
- CNC machined, high-strength components
- Heat-treated, high-strength billet bodies with chromoly stems
- Heat-treated, precision-ground stainless-steel ball
- Sealed, greaseable design and PTFE coated wear points ensure long service life
- On-vehicle rebuildable design
- Adjustable track bar helps to free up bind during front suspension travel and articulation
- Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
Specifications
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Adjustable | Yes |
| Adjustable Damping | No |
| Grade Type | Heavy Duty |
| Title | ICON 2005-2016 Ford F-250/F-350 Super Duty 4WD, Ultimate Front End Kit, Stage 6 |
| Mount Type | Press In |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Cotter Pin Hole | Yes |
| Dust Boot Included | Yes |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
