ICON Vehicle Dynamics K62504 - 05-16 FORD F250/F350 2.5" STAGE 5 SUSPENSION SYSTEM
Couldn't load pickup availability
ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

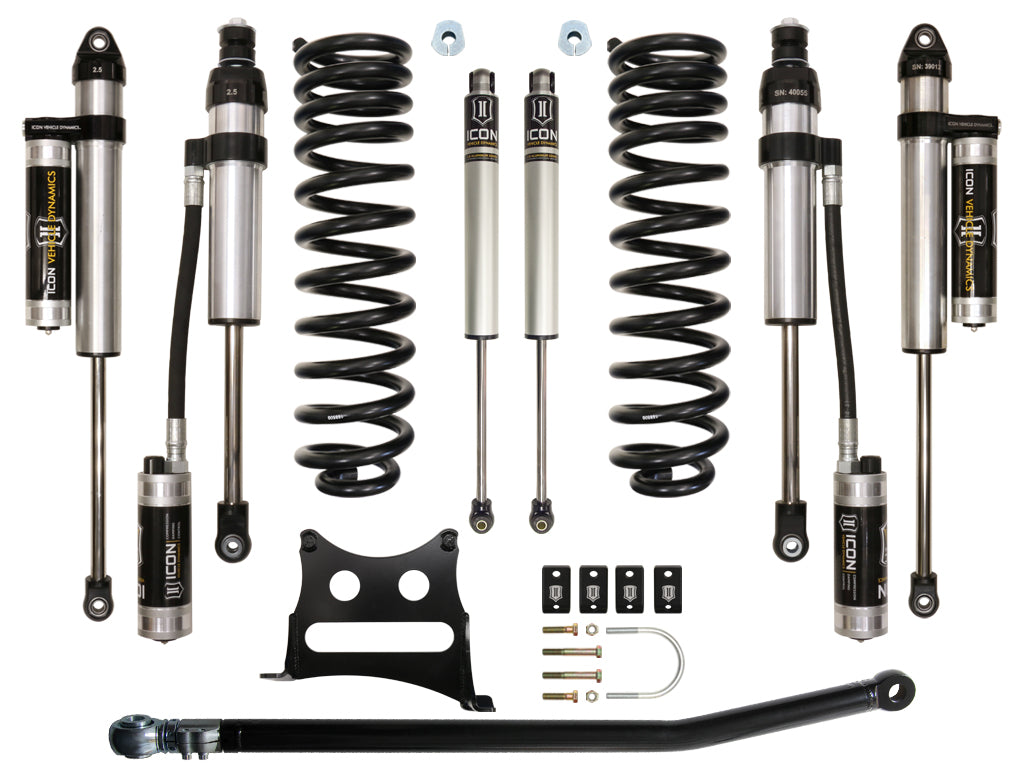

The ICON 2.5” suspension system is a great way to level your 4WD 2005-2016 Ford F250/350 Super Duty while improving ride quality and performance. This Stage 5 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage is ICON's CDC Valve front to back for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. ICON's Stage 5 System is comprised of dual rate coil springs, alignment cams for adding caster, adjustable track bar w/ bearing, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, and ICON 2.5 Aluminum Series remote reservoir shocks front and rear w/ CDCV. ICON 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Features & Benefits
- ICON engineered dual rate coil springs with match tuned performance shocks
- No drive shaft modifications required
- Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
- 100% Bolt-on system -no cutting or welding necessary for install
- Remote reservoir with easy to adjust compression tune-ability
- Application Specific Alignment Cams ensure proper Caster alignment
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Adjustable trackbar for optimum front axle centering and minimizing deflection
- Dual steering stabilizer kit for smooth wheel control while driving
- Less body-roll than stock
- Lifetime guarantee that coil springs won’t sag
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Bushings Included | Yes |
| Coils Quantity Front | 2 |
| Maximum Lift | 2.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Spring Color | Black |
| Title | ICON 2005-2016 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 5 Suspension System |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
Installation Guide: Download PDF
