ICON Vehicle Dynamics K62511 - 17-19 FORD F250/F350 2.5" STAGE 1 SUSPENSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.
ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

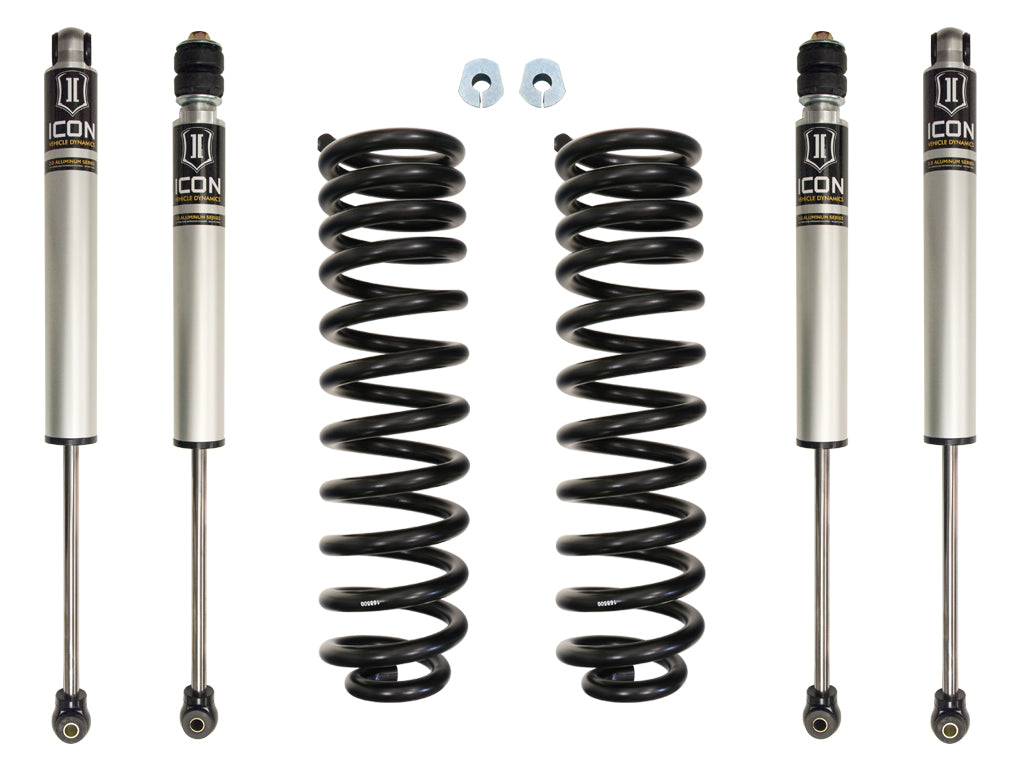

This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2017-2019 Ford F250/350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's Stage 1 System is comprised of dual rate coil springs, alignment cams, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Features
- Fits 2017-2019 F250 / F350 4WD applications
- Approximately 25% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and revalvable
- Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Coils Quantity Front | 2 |
| Maximum Lift | 2.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Spring Color | Black |
| Grade Type | Performance |
| Front Spring Rate Type | Progressive Dual Rate |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Add-On Part | 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Add-On Part | 64038 - 17-25 FSD ADJ TRACKBAR KIT |
Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: Compatible with 4WD models only TECH NOTE: Not compatible with F-350 Cab & Chassis models TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #119: RARE CASES REQUIRE A 2.6 DEGREE ALIGNMENT CAM ON ONE SIDE OF VEHICLE FOR PROPER CASTER SPLIT
Short Description: SUSPENSION SYSTEM
Invoice Description: K62511
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: No Warranty
Shipping Information
Free shipping is available for eligible orders.
Shipping: For USA - Up to 50lbs.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
