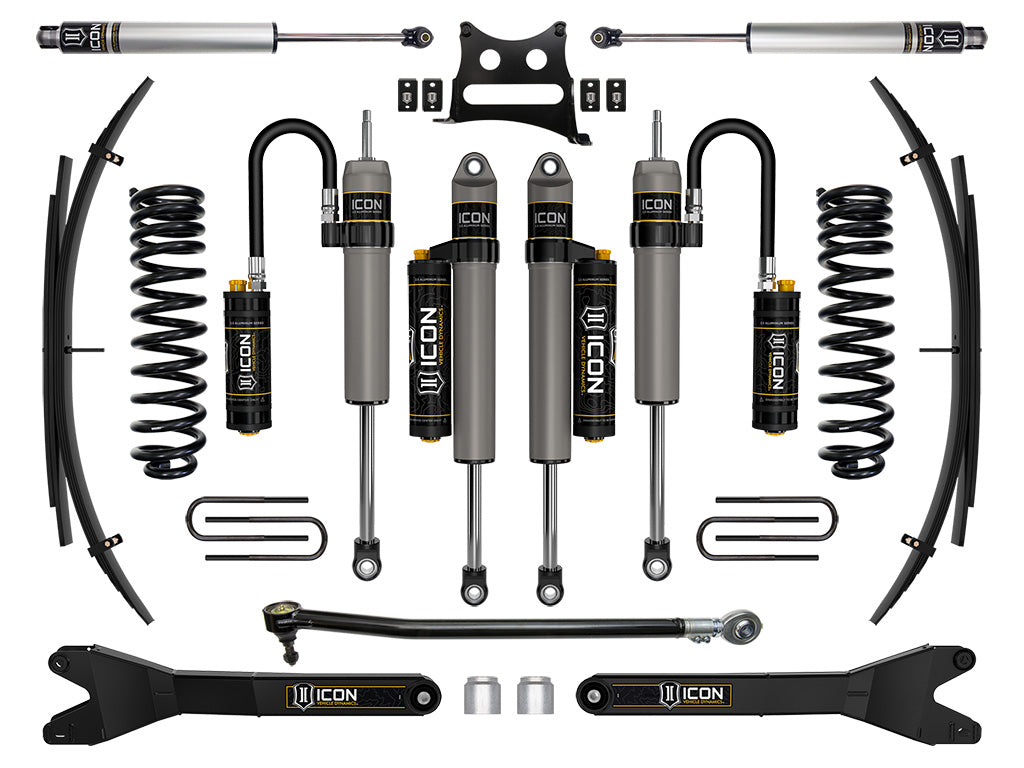

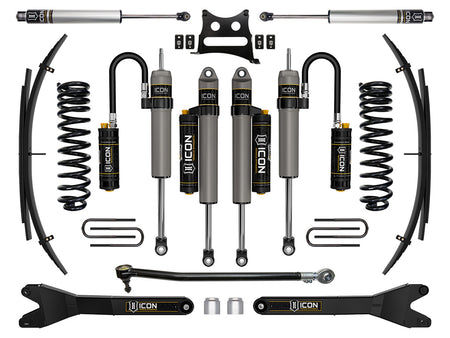

ICON Vehicle Dynamics K62526L - 20-22 FORD F250/F350 2.5" STAGE 6 SUSPENSION SYSTEM W EXPANSION PACK
Couldn't load pickup availability

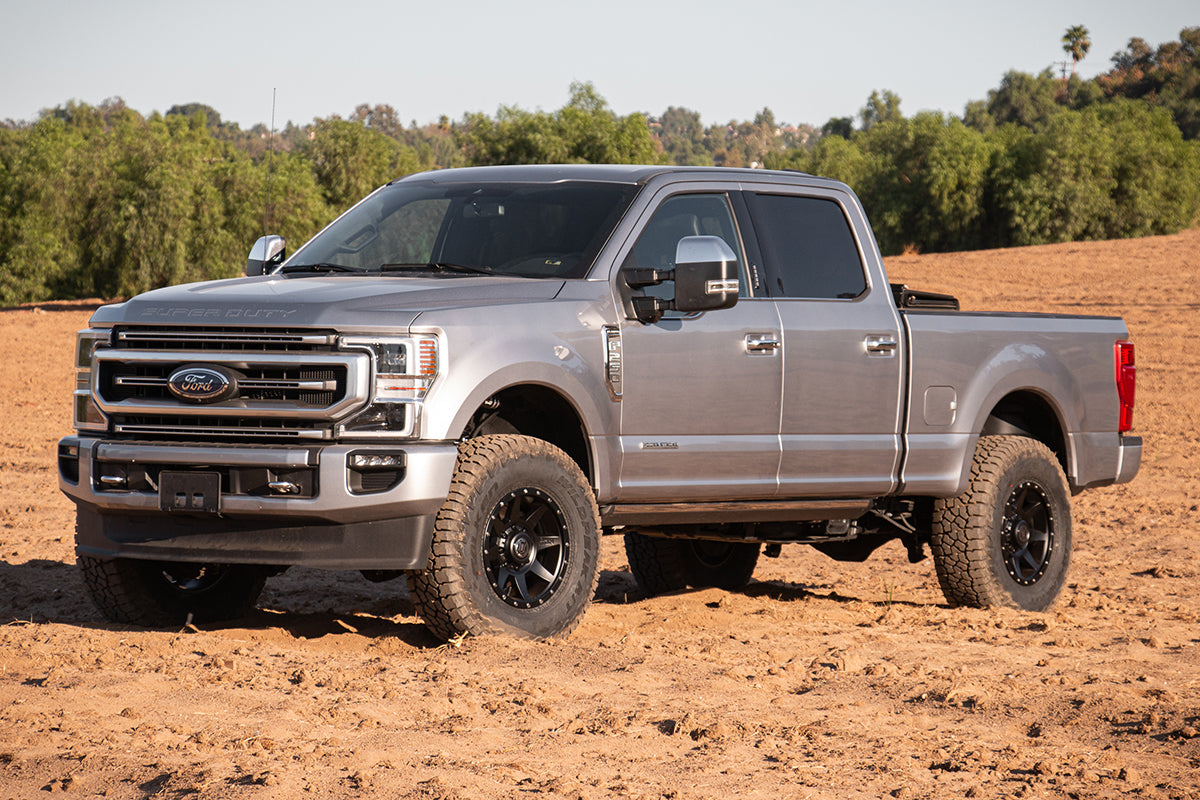

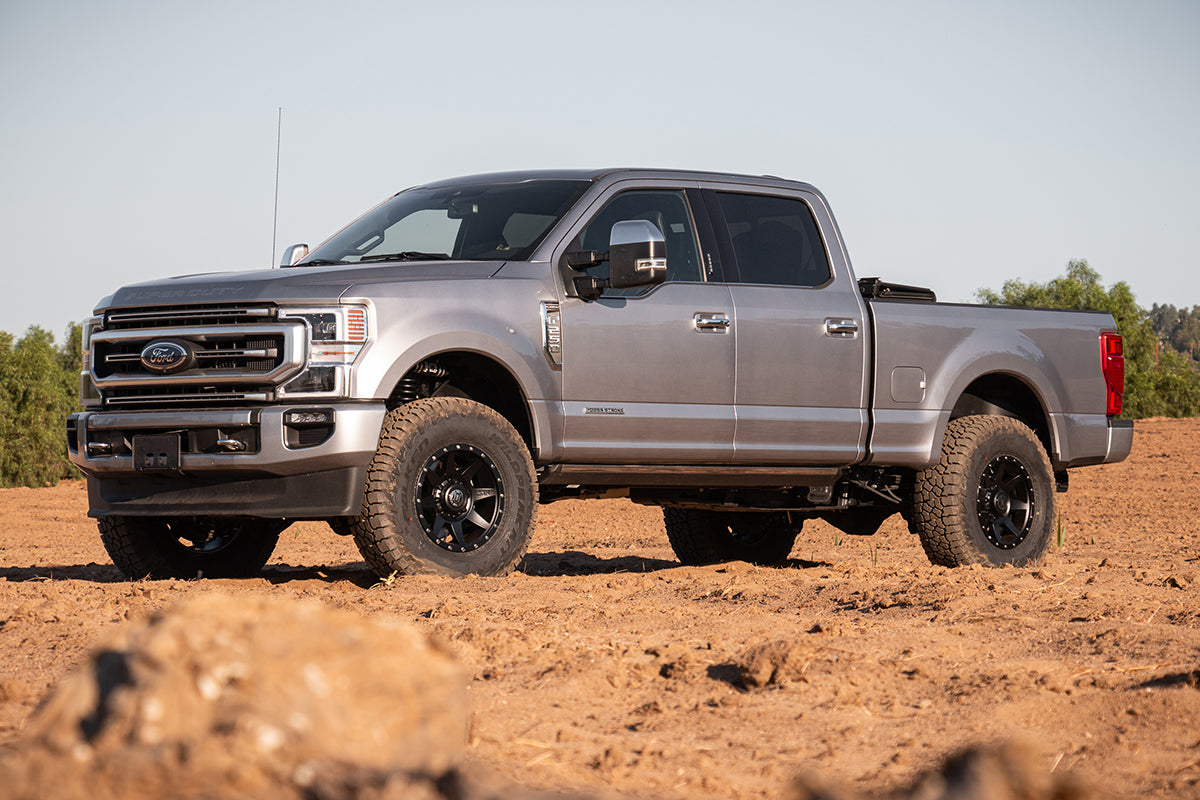

ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The 2020-2022 Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020-2022 models, the resulting ride height is often taller than desired. So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.
Features & Benefits
- ICON engineered dual rate coil springs provide 2.5” of front lift over stock
- Lifetime guarantee that springs won’t sag or break
- No drive shaft modifications required
- Shocks are fully rebuildable and re-tunable
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
- Vehicle specific tuned remote reservoir front and piggyback reservoir rear 2.5 Aluminum Series shocks
- Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
- Dual steering stabilizer kit for smooth wheel control while driving
- Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Increased wheel travel and improved ride quality over stock with no change in towing capacity
- Less body-roll than stock
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Coils Quantity Front | 2 |
| Maximum Lift Rear | 2 IN |
| Maximum Lift Front | 2.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Leaf Spring Leaf Quantity | 7 |
| Spring Color | Black |
| Title | ICON 20-22 Ford F250/F350 4WD, 2.5" Lift, Stage 6 Suspension Sys w/ Leaf Spring |
| Grade Type | Performance |
| Front Spring Rate Type | Progressive Dual Rate |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
