ICON Vehicle Dynamics K62561L - 23 FORD F250/F350 DIESEL 2.5" STAGE 1 SUSPENSION SYSTEM W EXPANSION PACK

ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

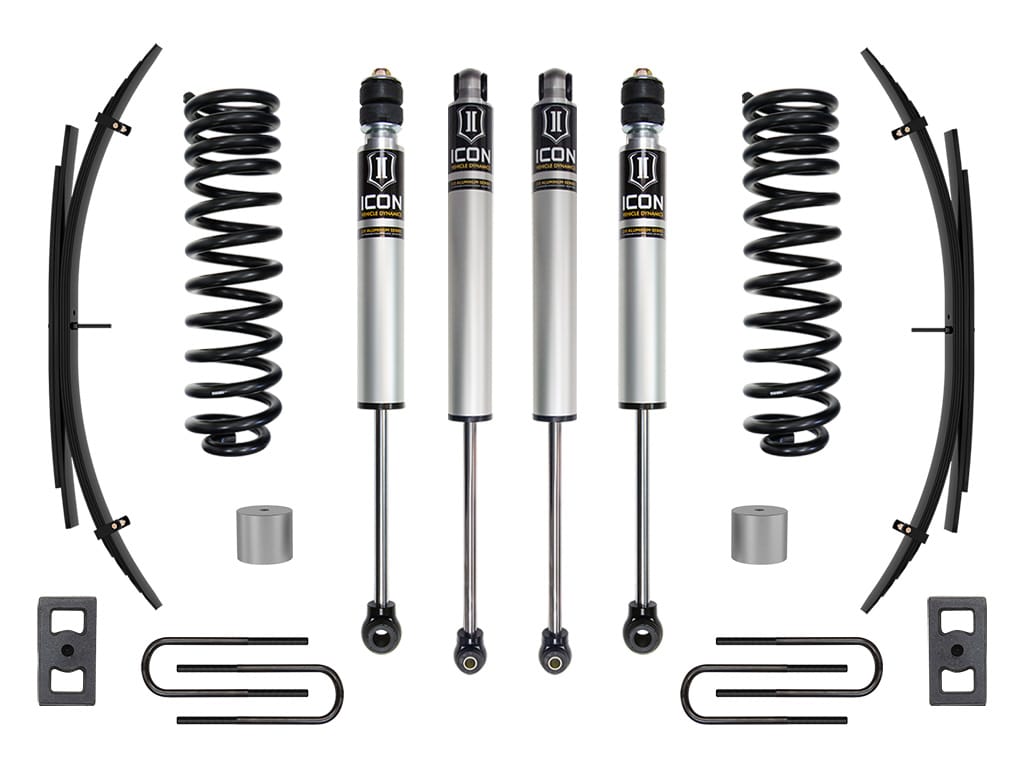

The ICON 2.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 1 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir shocks front and rear. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features

• ICON engineered dual rate coil springs provide 2.5” of front lift over stock
• 100% Bolt-on system - no drilling, cutting or welding necessary for install
• Vehicle specific tuned internal reservoir 2.0 Aluminum Series shocks
• Application specific alignment cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won’t sag or break
• No drive shaft modifications required
• Shocks are fully rebuildable and re-tunable

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #115: Lift Heights Based On 4WD Crew Cab Diesel APPLICATION NOTE #119: Rare Cases Require A 2.6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split APPLICATION NOTE #151: Fits Single Rear Wheel Models Only APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #166: If equipped with Dynamic Bending Headlamps and/or Onboard scales part # 611081 is also required APPLICATION NOTE #209: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped TECH NOTE: Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock. TECH NOTE: Will not fit 2024 models TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.5" over stock TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.) TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #3: Will not fit F-350/F-450 Cab & Chassis models APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength

Short Description: SUSPENSION SYSTEM

Invoice Description: K62561L

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Warranty: 1 Year-Shocks, Limited Lifetime-Springs, Blocks, U-Bolts
