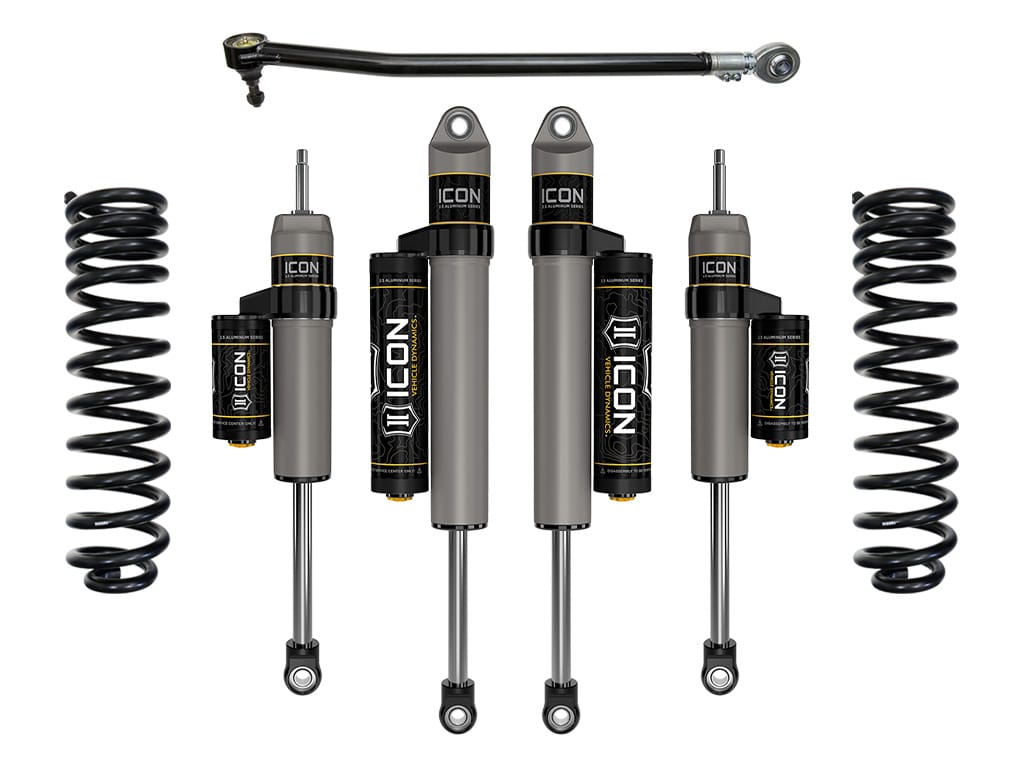

ICON Vehicle Dynamics K62563 - 23 FORD F250/F350 DIESEL 2.5" STAGE 3 SUSPENSION SYSTEM
Couldn't load pickup availability
ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
This ICON Vehicle Dynamics 2.5” suspension system is a great way to level your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 3 system is perfect for on-road and off-road use including towing, job site duty and spirited off-road adventure. ICON's Stage 3 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, alignment cams, ICON 2.5 Aluminum Series front and rear piggyback reservoir shocks, and an adjustable track bar designed specifically for the 2017-2024 Super Duty. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.
Features & Benefits
- Fits 2023 F-250 / F-350 4WD diesel applications
- Approximately 25% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and revalvable
- Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Spring Color | Black |
| Coil Spring Material | Steel |
| Coils Quantity Front | 2 |
| Dual Rate Coil Springs | Yes |
| Front Reservoir Style | Piggyback |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Maximum Lift Front | 2.5 IN |
| Maximum Lift Height Front | 2.5 IN |
| Minimum Lift Front | 1.5 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. |
| Rear Reservoir Style | Piggyback |
| Rear Shock Body Diameter | 2.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Title | ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Stage 3 Suspension System |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Add-On Part | 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
Installation Guide: Download PDF
