ICON Vehicle Dynamics K62591L - 23 FORD F250/F350 GAS 2.5" STAGE 1 SUSPENSION SYSTEM W EXPANSION PACK
Couldn't load pickup availability
ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

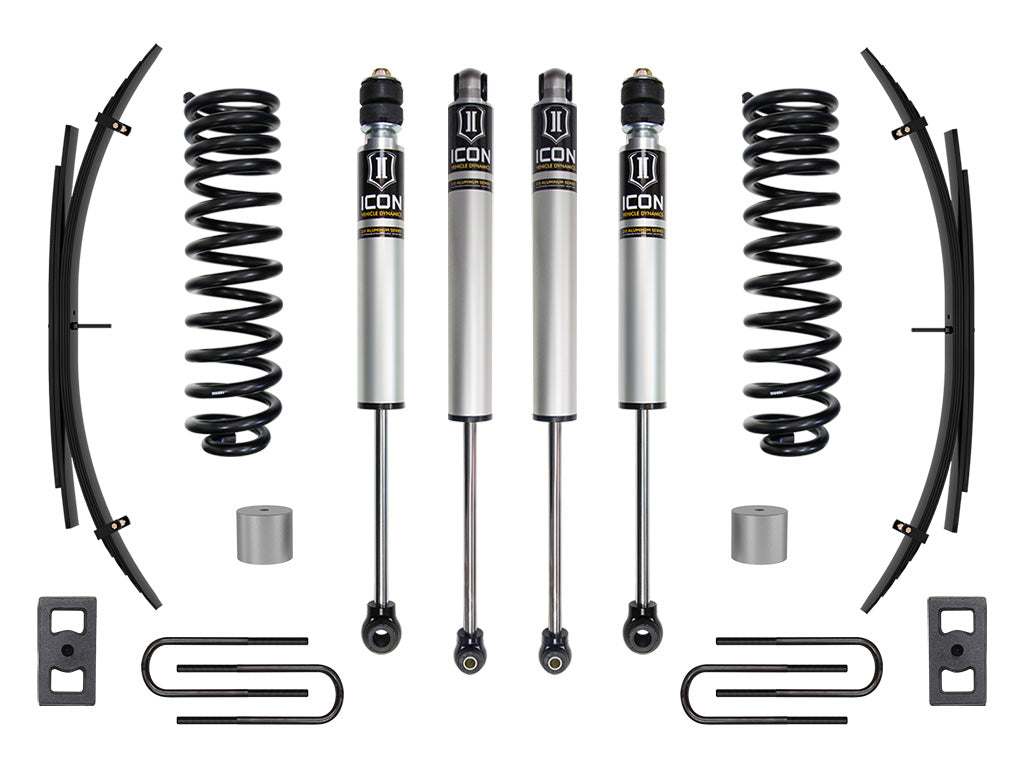

The ICON 2.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 1 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir shocks front and rear. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Features & Benefits
- ICON engineered dual rate coil springs provide 2.5” of front lift over stock
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
- Vehicle specific tuned internal reservoir 2.0 Aluminum Series shocks
- Application specific alignment cams ensure proper caster alignment
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Increased wheel travel and improved ride quality over stock with no change in towing capacity
- Less body-roll than stock
- Lifetime guarantee that springs won’t sag or break
- No drive shaft modifications required
- Shocks are fully rebuildable and re-tunable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 611081 - F-SERIES DYNAMIC HEADLAMP REAR SENSOR KIT |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Spring Color | Black |
| Coil Spring Material | Steel |
| Coils Quantity Front | 2 |
| Dual Rate Coil Springs | Yes |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2 IN |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Leaf Spring Color | Black |
| Leaf Spring Leaf Quantity | 7 |
| Leaf Spring Material | Steel |
| Maximum Lift | 2.5 IN |
| Maximum Lift Front | 2.5 IN |
| Maximum Lift Height Front | 2.5 IN |
| Maximum Lift Height Rear | .5 IN |
| Maximum Lift Rear | 2 IN |
| Minimum Lift Front | 1.5 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Title | ICON 2023 Ford F-250/F-350 Super Duty 4WD Gas, 2.5" Lift, Stage 1 Suspension System w/ Expansion Packs |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Add-On Part | 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT |
| Add-On Part | 64038 - 17-25 FSD ADJ TRACK BAR KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
Installation Guide: Download PDF
