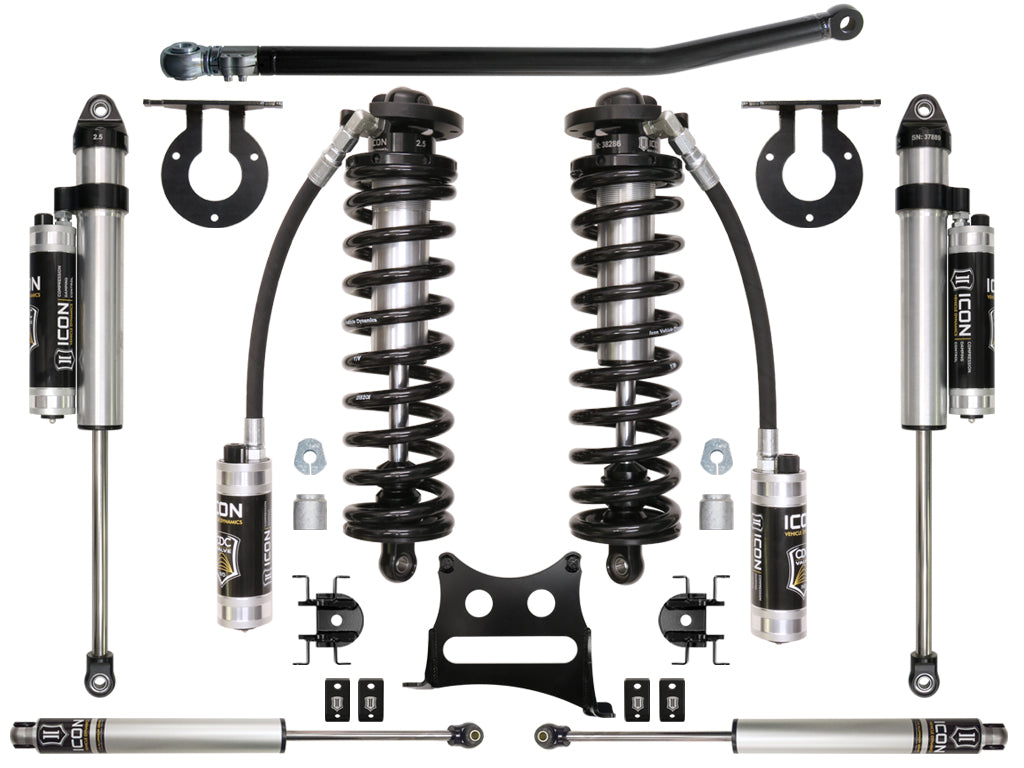

2005-2016 FORD F-250/F-350 2.5-3" LIFT STAGE 4 COILOVER CONVERSION SYSTEM
ICON's 2.5 Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICONβs 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
Features

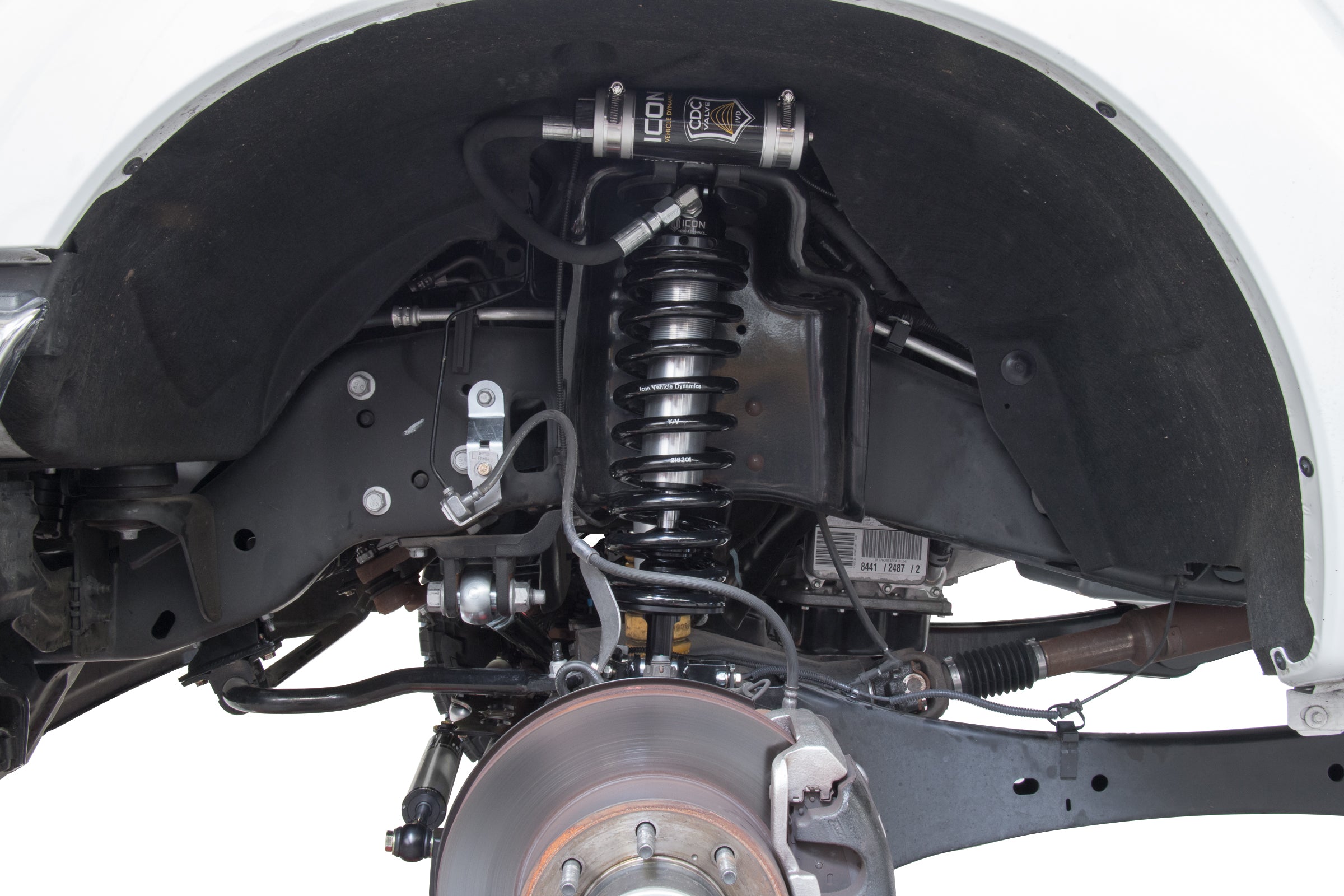

- Bolt-in system fits in OE coil bucket location
- FK Rod End bearings for extended longevity and minimal deflection
- Ride height adjustable coilovers (2.5-3")
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Corrosion resistant anodized aluminum rear shock bodies with 7/8" shafts
- Eibach coil springs guaranteed for life against sagging or breakage
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | NO |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Spring Material | Steel |
| Grade Type | Performance |
| Spring Color | Black |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Maximum Lift | 3 IN |
| Coils Quantity Front | 2 |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5β Backspace / 6mm Offset |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25β Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25β Backspace / 6mm Offset |
Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: 2005-2016 F-250s require 4β rear blocks with 15β U-bolt kit to sit level with 2.5β lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended. Ships in multiple boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00β Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25β Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25β Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION. APPLICATION NOTE #94: WIDE STEER EQUIPPED TRUCKS REQUIRE STABILIZER PART NUMBER 66515 QTY 2
Short Description: SUSPENSION SYSTEM
Invoice Description: 05-16 FSD 2.5-3" STG 4 CO CONV SYSTEM
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: No Warranty
