ICON Vehicle Dynamics K63122 - 08-10 FORD F-250/F-350 4-5.5" STAGE 2 COILOVER CONVERSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.

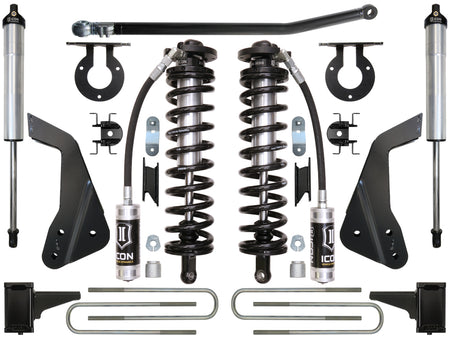

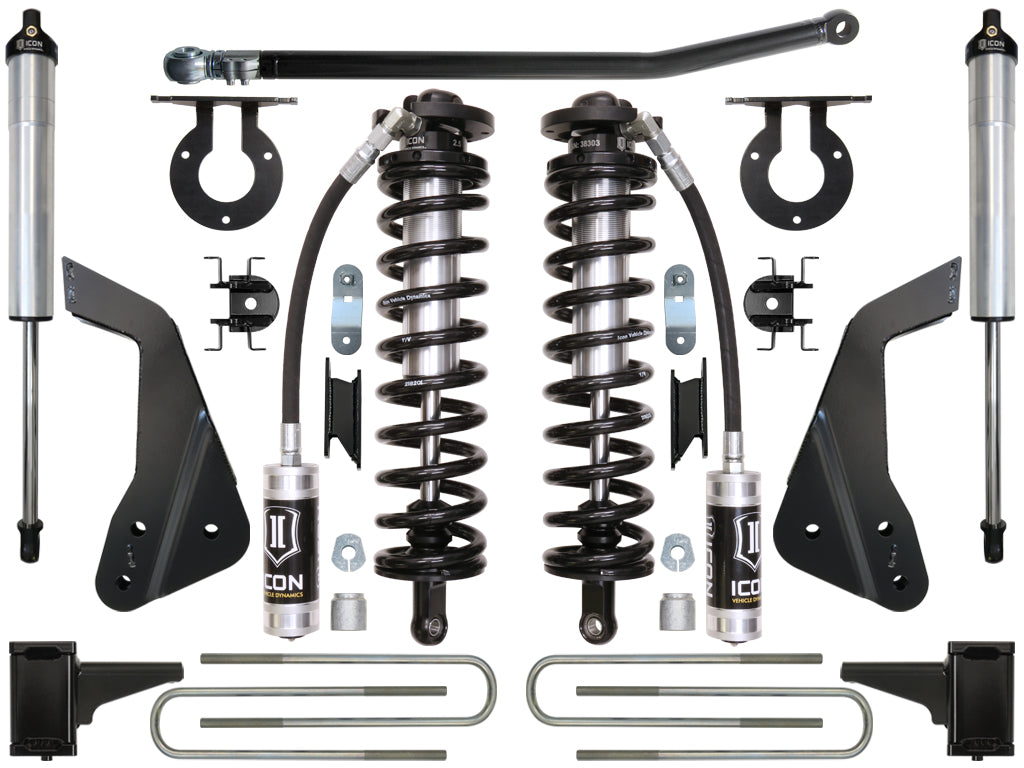

2008-2010 FORD F-250/F-350 4-5.5" LIFT STAGE 2 COILOVER CONVERSION SYSTEM
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
Features
- Bolt-in system fits in OE coil bucket location
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- Ride height adjustable coilovers (4-5.5")
- Increased wheel travel and ride quality over stock
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Coils Quantity Front | 2 |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Maximum Lift | 5.5 IN |
| Spring Color | Black |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 65000 - 05-22 FSD DUAL STABILIZER KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION. Ships in multiple boxes
Short Description: SUSPENSION SYSTEM
Invoice Description: 08-10 FSD 4-5.5" STAGE 2 CO CONV SYSTEM
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: No Warranty
