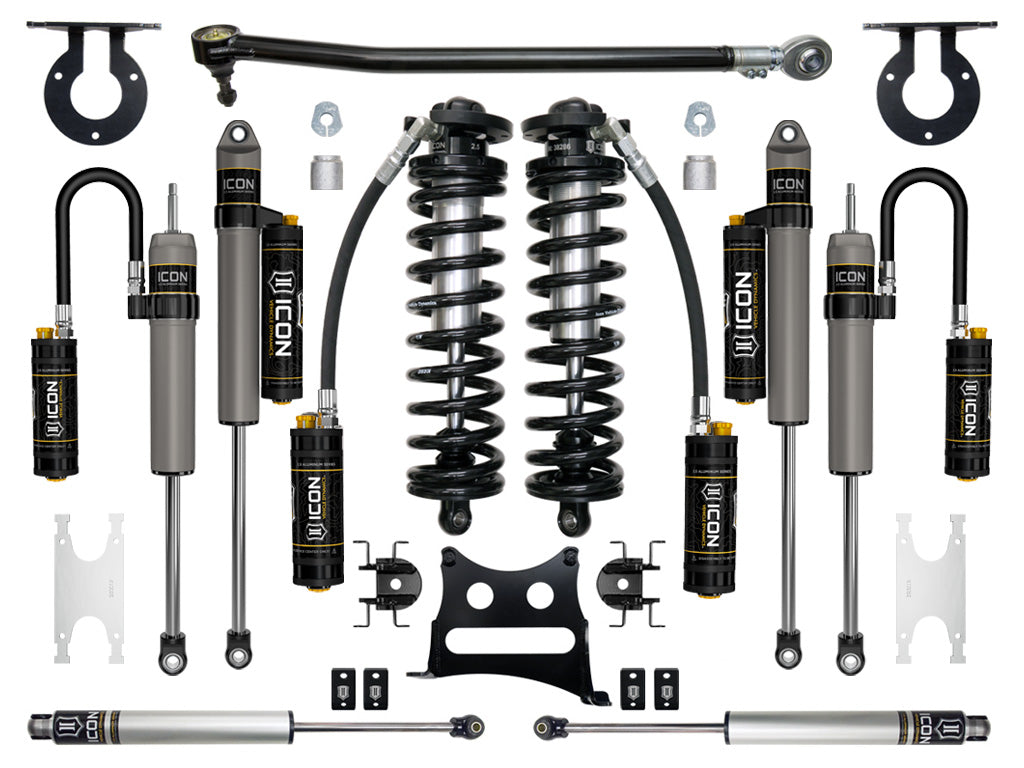

2017-2022 FORD F-250/F-350 2.5-3" LIFT STAGE 5 COILOVER CONVERSION SYSTEM
ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
Features
- Bolt-in system fits in OE coil bucket location
- FK Rod End bearings for extended longevity and minimal deflection
- Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Corrosion resistant anodized aluminum shock bodies on rear and secondary front shocks
- Eibach coil springs guaranteed for life against sagging or breakage
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Bushings Included | Yes |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Quantity Front | 2 |
| Coil Spring Color | Black |
| Coil Spring Material | Steel |
| Coils Quantity Front | 2 |
| Damping Adjustment Type | Manual |
| Front Reservoir Style | Remote |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 3 IN |
| Maximum Lift Front | 3.75 IN |
| Maximum Lift Height Front | 3.75 IN |
| Minimum Lift Front | 1.5 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Reservoir Style | Piggyback |
| Rear Shock Body Diameter | 2.5 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation. APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #3: Will not fit F-350/F-450 Cab & Chassis models APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
Short Description: SUSPENSION SYSTEM
Invoice Description: 17-22 FSD 2.5-3" STG 5 CO CONV SYSTEM
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: No Warranty
