2005-2007 FORD F250/F350 4.5" LIFT STAGE 4 SUSPENSION SYSTEM

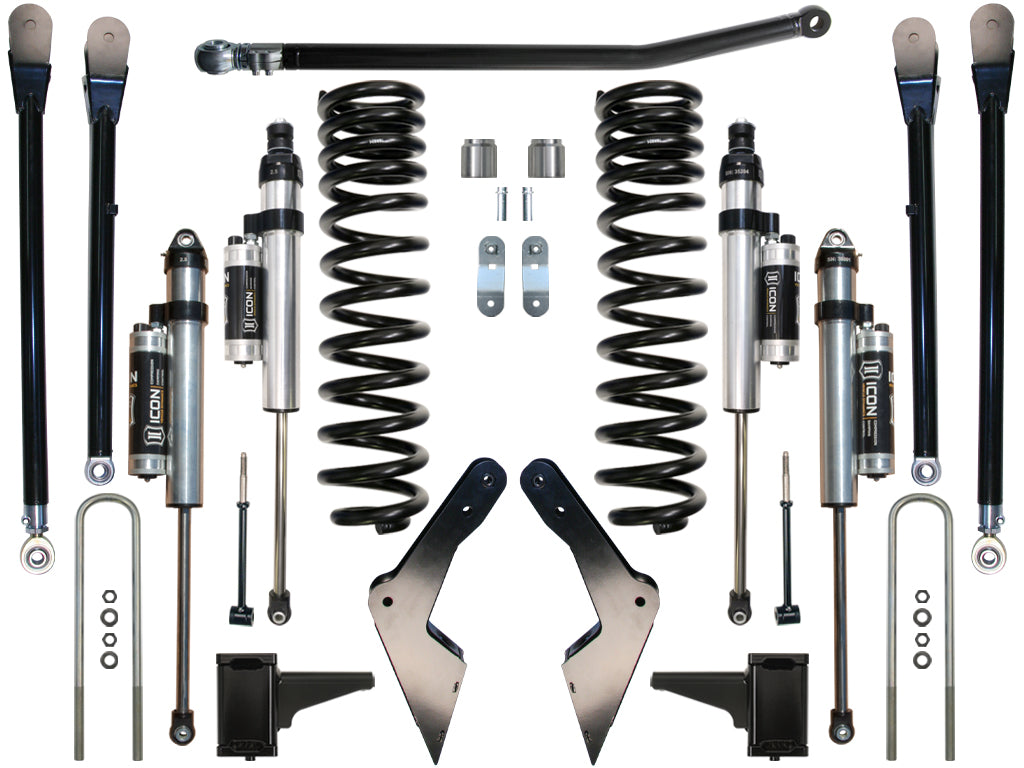

This 4.5" System for the 2005-2007 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The Dual-Rate front coil springs combined with our ICON 2.5 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and u-bolts and our patented adjustable track bar giving the front end of these trucks perfect track alignment. The Stage 4 system also includes our 4-Link kit for the ultimate in shock technology and suspension technology.
Features
- 50% increase in wheel travel
- 100% bolt-on system - no drilling,cutting or welding necessary for install
- Less body roll than stock truck
- 4.5" more travel from ride height to front bump stops
- State-of-the-art dual-rate coil spring
- Lifetime guarantee that coil springs won’t sag
- Clears 35" Tall Tires & 37" Tall Tires w/ Minor Trimming
- No change in towing capacity
- No drive shaft modifications needed
- Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 65000 - 05-22 FSD DUAL STABILIZER KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Bushings Included | Yes |
| Coils Quantity Front | 2 |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Maximum Lift | 4.5 IN |
| Spring Color | Black |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
Note: OEM Wheels & Tires Fitment: Yes Ships in multiple boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Short Description: SUSPENSION SYSTEM
Invoice Description: 05-07 FORD F250/F350 4.5" STG 4 SUSP SYS
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: No Warranty
