ICON Vehicle Dynamics K64511 - 17-19 FORD F-250/F-350 4.5" STAGE 1 SUSPENSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.
2017-2019 FORD F-250/F-350 4.5" LIFT STAGE 1 SUSPENSION SYSTEM

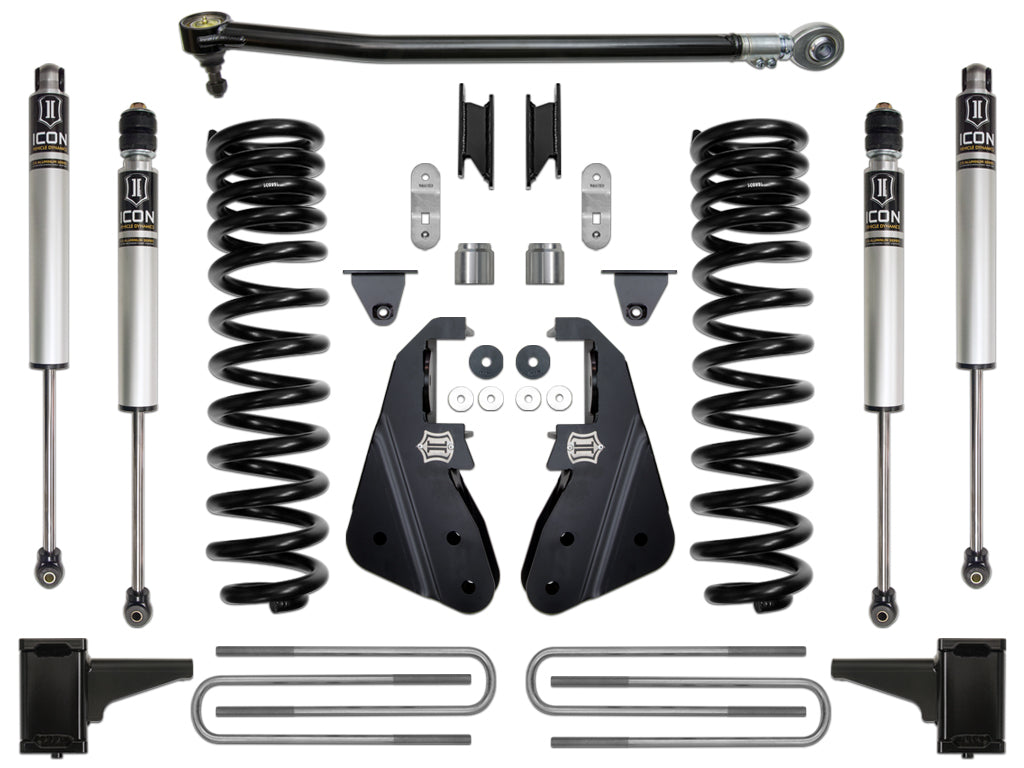

This ICON Vehicle Dynamics 4.5β suspension system is a great way to lift your 4WD 2017-2019 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads. ICON's 4.5" Stage 1 System is comprised of dual rate coil springs, radius arm drop brackets, adjustable track bar, 5" block kit, and ICON 2.0 Aluminum Series front and rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Features
- Fits 2017-2019 F-250 / F-350 4WD applications
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- Approximately 50% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Radius arm drop brackets correct geometry and caster for optimal alignment specs
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and revalvable
- Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
- FK Rod End bearings provide extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Coils Quantity Front | 2 |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Maximum Lift | 4.5 IN |
| Spring Color | Black |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5β Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25β Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25β Backspace / 6mm Offset |
Note: OEM Wheels & Tires Fitment: Yes TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) Ships in multiple boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5β Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25β Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25β Backspace / 6mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700) APPLICATION NOTE #31: β08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Short Description: SUSPENSION SYSTEM
Invoice Description: 17-19 FORD F-250/F-350 4.5 STG 1 SUSP
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: No Warranty
