ICON Vehicle Dynamics K67113 - 17-22 FORD F-250/F-350 7" STAGE 3 SUSPENSION SYSTEM

2017-2022 FORD F-250/F-350 7" LIFT STAGE 3 SUSPENSION SYSTEM

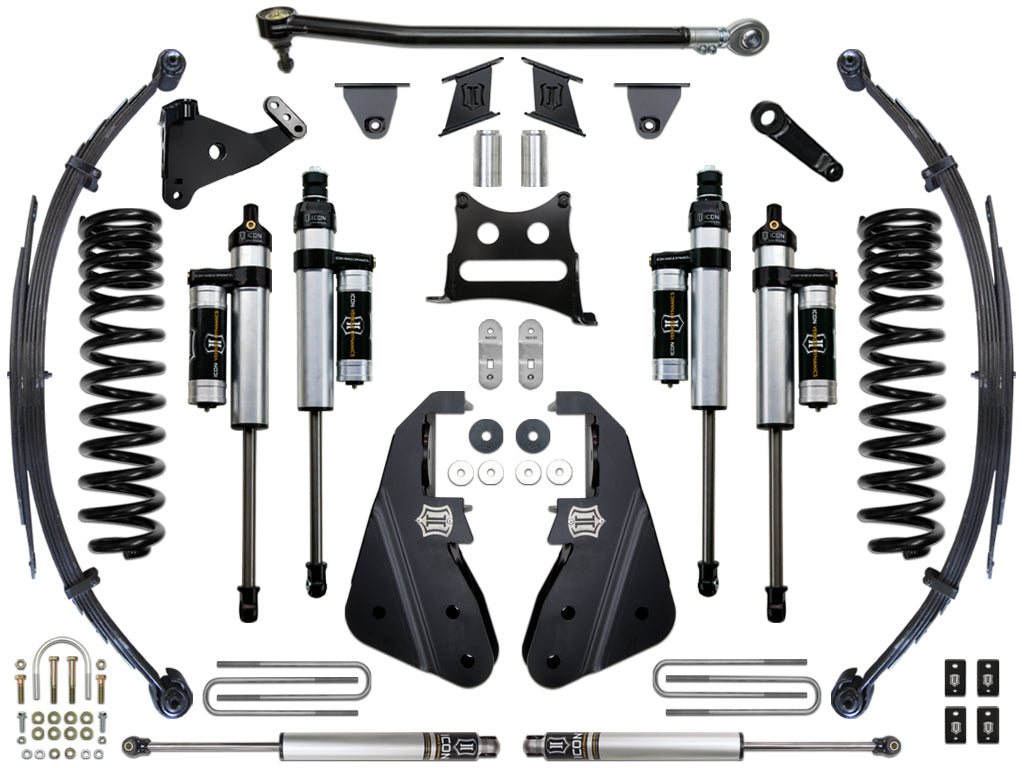

This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2017-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and spirited off-road adventure. ICON's 7" Stage 3 System is comprised of dual rate coil springs, progressive leaf springs, radius arm drop brackets, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features

• Fits 2017-2022 F-250 / F-350 4WD applications
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Approximately 50% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Progressive leaf springs improve ride quality without reducing towing capacity
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK Rod End bearings provide extended longevity and minimal deflection

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #57: FACTORY BLOCK MUST BE USED IN CONJUNCTION WITH ICON LEAF SPRINGS FOR TRUCK TO SIT LEVEL APPLICATION NOTE #118: OEM STABILIZER DOES NOT WORK WITH REQUIRED DRAG LINK FLIP ON THIS KIT TECH NOTE: 2017-2019 Super Duty models will have front lift height of 7" over stock. TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height of 7.75" over stock. May require taller rear blocks with springs to sit level. TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height of 6.75" over stock. May require taller rear blocks with springs to sit level. TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) Ships in multiple boxes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: 2020-UP Super Duty models have a lower ride height from the factory than 2017-2019 trucks. This results in an increase of approximately .75" of additional lift height over ICON's advertised numbers. APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700) APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft

Short Description: SUSPENSION SYSTEM

Invoice Description: 17-22 FORD F-250/F-350 7" STG 3 SUSP SYS

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Warranty: No Warranty
