ICON Vehicle Dynamics K73073T - 19-23 GM 1500 2.38-3.75" STAGE 3 EXP SUSPENSION SYSTEM W TUBULAR UCA
Couldn't load pickup availability

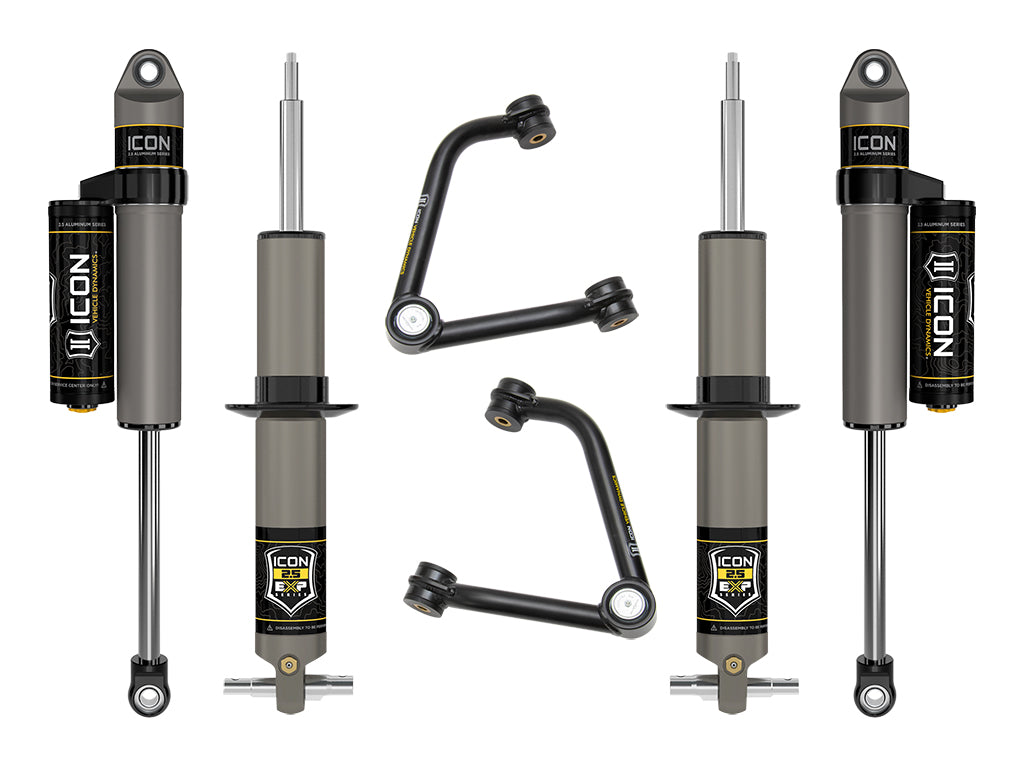

Stage 3 includes a pair of 2.5 EXP Series coilovers for 2.375-3.75” of front lift, improved performance, and 35” tire fitment. Tubular UCAs improve alignment and 2.5 Series rear shocks to balance the tuning from front to rear.
The ICON Vehicle Dynamics Stage 3 EXP complete suspension system for the 2019-2023 GM 1500 pickup builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.5 Aluminum Series shocks with piggyback reservoirs for the rear.
Features & Benefits
- Vehicle specific design for 2019-2023 GM 1500 pickups
- All ICON shock absorbers are fully rebuildable and re-tunable
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 2.375-3.75” of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
- One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- 7/8” diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
- 2.5 Aluminum Series rear piggyback reservoir shocks provide increased performance and balanced tune with coilovers
- CNC machined 6061 aluminum components with a black anodized finish
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Minimum Lift Front | 2.375 IN |
| Maximum Lift Front | 3.75 IN |
| Title | ICON 19-23 GM 1500, 2.375-3.75" Lift, Stage 3 EXP Suspension System, Tubular |
| Grade Type | Performance |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Add-On Part | 191012 - UCA CAP ADHESIVE KIT - DELTA JOINT/UNIBALL |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
