ICON Vehicle Dynamics K78352T - 20-UP GM 2500HD/3500 0-2" STAGE 2 SUSPENSION SYSTEM (TUBULAR)
Couldn't load pickup availability
2020-UP GM 2500HD/3500 0-2" LIFT STAGE 2 SUSPENSION SYSTEM WITH TUBULAR UCA

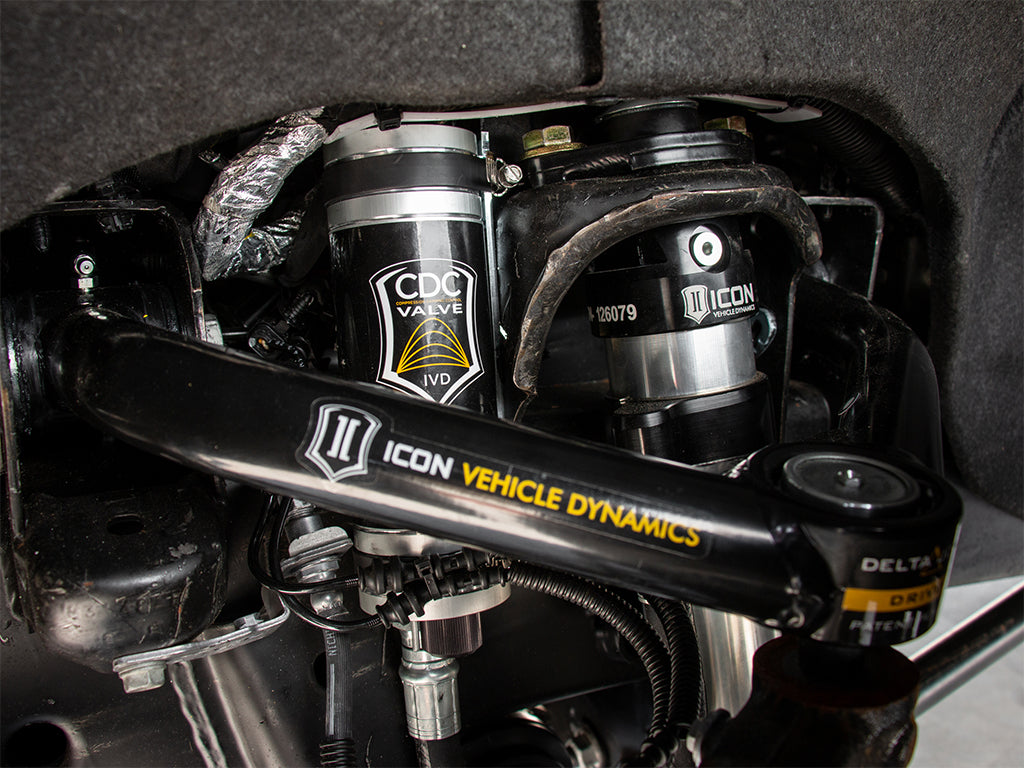

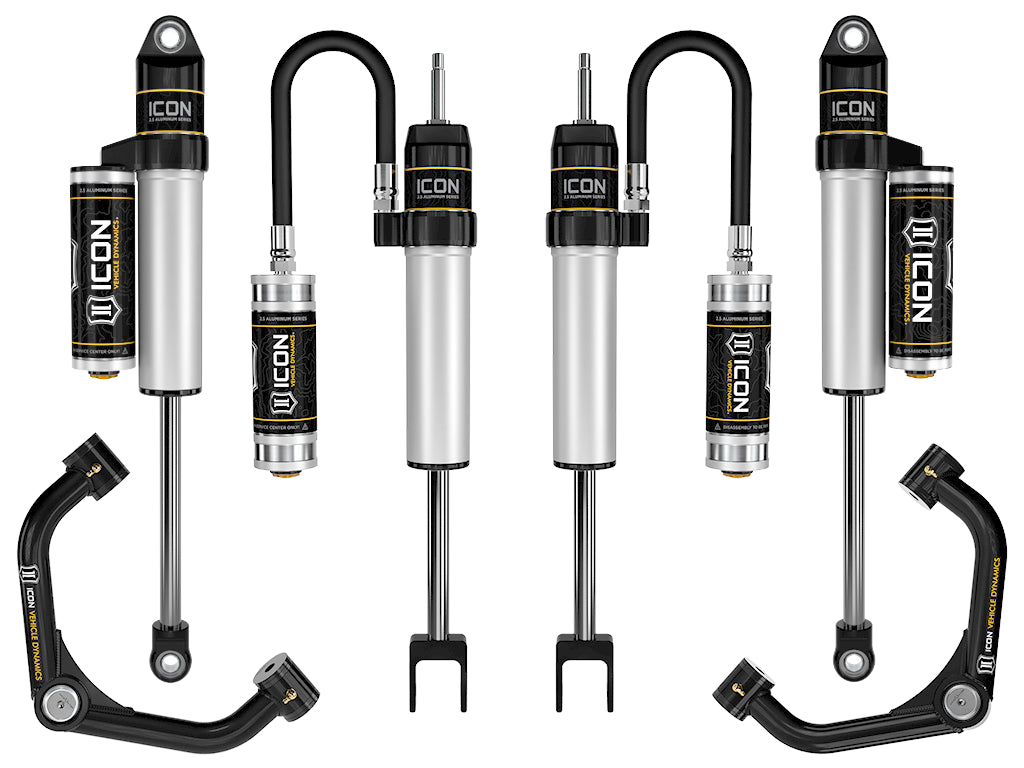

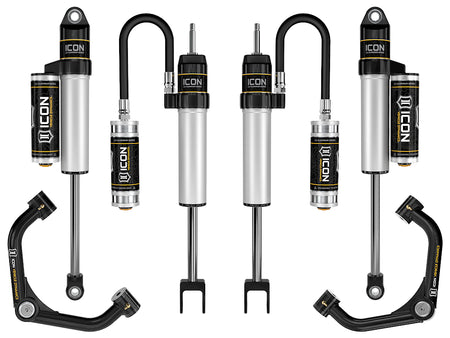

Tougher, stronger and more capable - That's the motto that General Motors used when debuting the all-new fleet of heavy-duty trucks in 2020. ICON Vehicle Dynamics stayed true to GM engineers' thought process with the development of our suspension systems for the 2020-UP GM HD 2500/3500 trucks. Using ICON's holistic engineering philosophy, our R&D team went above and beyond to develop several stages of complete suspension systems that provide varying levels of adjustability, capability, and overall vehicle performance. ICON's Stage 2 system is comprised of V.S. 2.5 Aluminum Series remote reservoir front and rear shocks, and tubular Delta Joint upper control arms. The ICON vehicle specific tuned 2.5" shocks are the key to attaining optimum ride quality and getting that desired comfort with the 3/4 & 1-ton working capability. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Additionally, ICON upper control arms improve alignmemt specs, add strength, durability, and when paired with extended travel shocks increases wheel travel 2" over the OEM configuration. While driving the construction site or trails to your favorite dirt bike location, ICON wants you to get there in comfort just like your drive to work.
Features & Benefits
- 0-2” Adjustable lift height over stock
- Vehicle specific tuned 2.5 Aluminum Series remote reservoir front and rear shocks for superior shock damping and control
- Improved ride quality over stock with no change in towing capacity
- Wheel travel increase of 2" over stock
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant anodized aluminum shock bodies
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Maximum Lift | 2 IN |
| Title | 20-UP GM 2500HD/3500 0-2" STAGE 2 SUSPENSION SYSTEM (TUBULAR) |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Grade Type | Performance |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.5" Backspace / 12mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.5" Backspace / 12mm Offset |
| Add-On Part | 77202 - 20-UP GM HD FRONT SPLASH GUARD KIT |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
Installation Guide: Download PDF
