ICON Vehicle Dynamics K83002 - 04-15 NISSAN TITAN 2/4WD 0-3" STAGE 2 SUSPENSION SYSTEM
Couldn't load pickup availability
2004-2015 NISSAN TITAN 2/4WD 0-3" LIFT STAGE 2 SUSPENSION SYSTEM

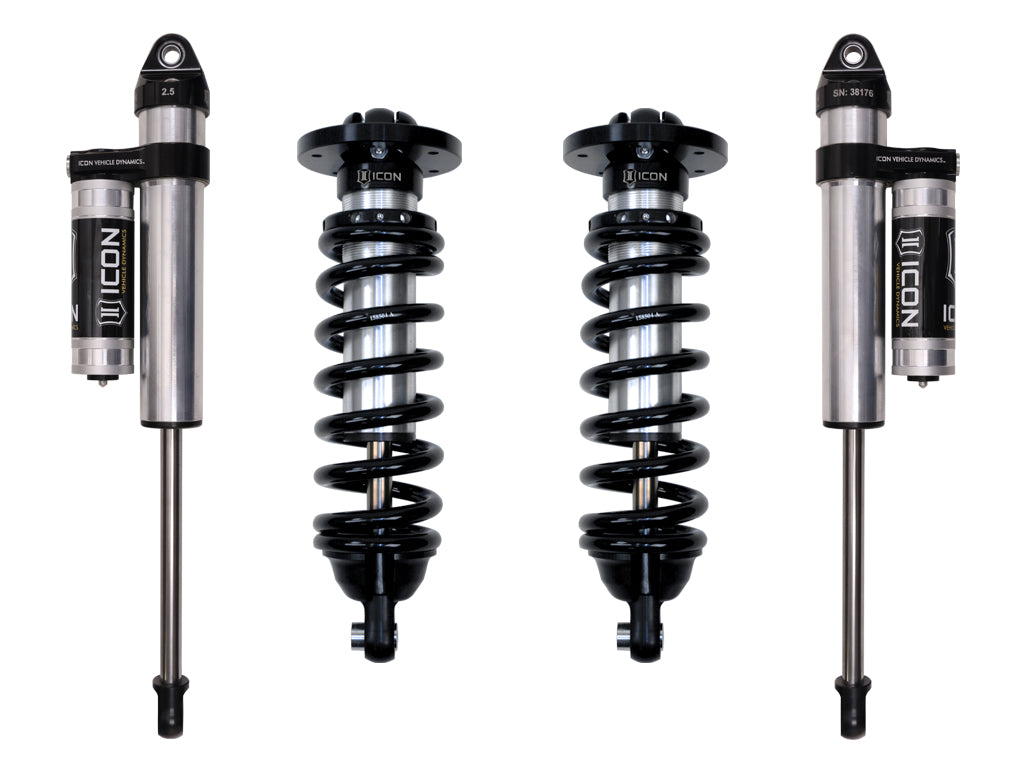

ICON Vehicle Dynamics 2004-2015 Nissan Titan suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2004-2015 Nissan Titan Stage 2 suspension system is an excellent choice for those drivers looking to drastically improve the capabilities of their pickup on the road as well as in the dirt.
Features & Benefits
- Fits 2WD and 4WD applications
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Series piggyback reservoir rear shock with 7/8" shaft
- 100% bolt-on system means no drilling, cutting, or welding necessary for install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Bushings Included | NO |
| Title | 04-15 NISSAN TITAN 2/4WD 0-3" STAGE 2 SUSPENSION SYSTEM |
| Coils Quantity Front | 2 |
| Maximum Lift | 3 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Spring Color | Black |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
Installation Guide: Download PDF
