ICON Vehicle Dynamics K83031 - 16-23 NISSAN TITAN XD 3" STAGE 1 SUSPENSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.
ICON 2.5-3” suspension systems lift your Nissan Titan XD while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

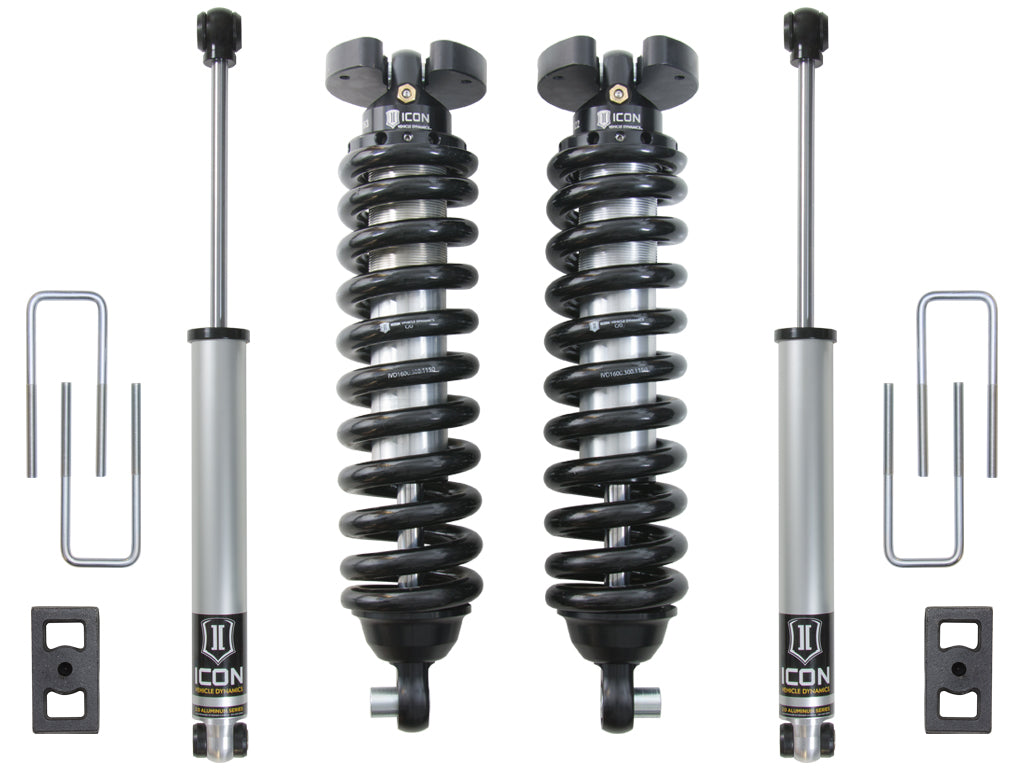

The 2016-2023 Nissan Titan XD is a truck with a heavy-duty build that’s aimed to blend the lines between ½ ton efficiency and ¾ ton capability. With this in mind, ICON Vehicle Dynamics has developed a complete suspension system designed from the ground up for improved performance on and off-road, increased wheel travel over stock, and the best ride quality on the market. The Stage 1 system includes ICON 2.5 Series coilovers, 2.0 Aluminum Series rear shocks, rear lift blocks, and u-bolts. These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none. The ICON Vehicle Dynamics 2016-2023 Nissan Titan XD Stage 1 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features
- Fits 2WD / 4WD applications
- 100% bolt-on system
- Increased ride quality over stock with no change in towing capacity
- Approximately 32% increased front wheel travel over stock
- Adjustable coilovers provide 2.5-3" of lift height
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
- FK Rod End bearings for extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Bushings Included | Yes |
| Coils Quantity Front | 2 |
| Maximum Lift | 3 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Spring Color | Black |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #115: LIFT HEIGHTS BASED ON 4WD CREW CAB DIESEL Ships in multiple boxes
Short Description: SUSPENSION SYSTEM
Invoice Description: K83031
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs, Blocks, U-Bolts
