ICON Vehicle Dynamics K93112 - 21-25 FORD F150 4WD 0-2.75" STAGE 2 SUSPENSION SYSTEM
Couldn't load pickup availability

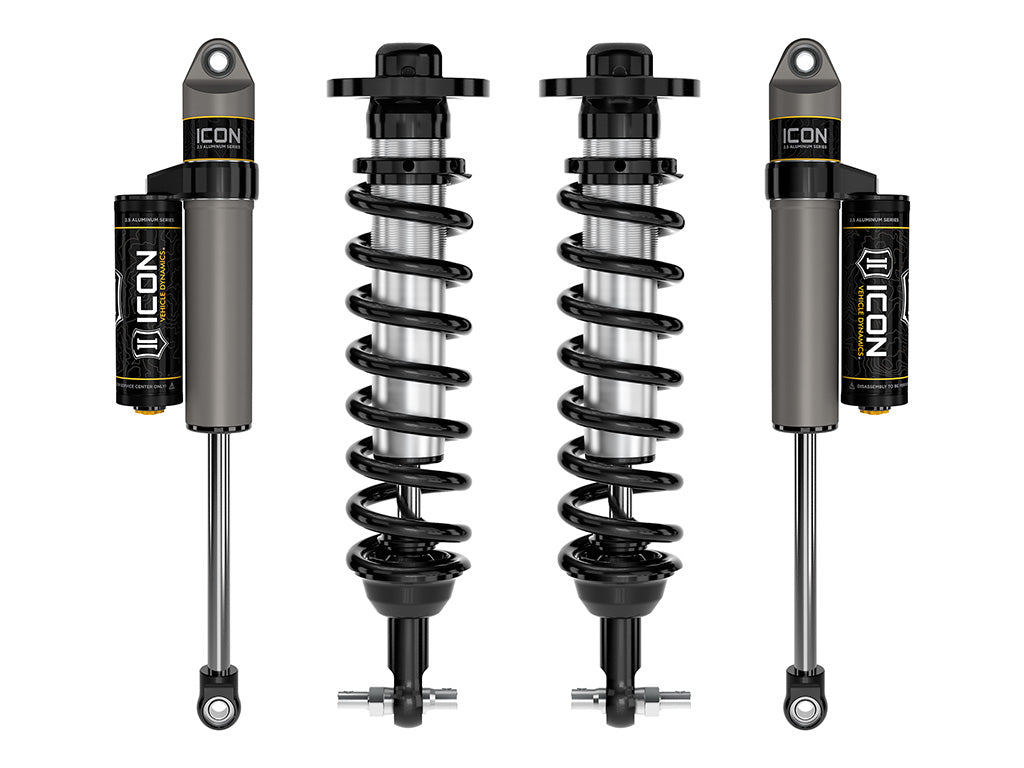

Stage 2 includes 2.5” coilovers with internal reservoirs with height adjustability from 0-2.75” of lift. ICON 2.5 Aluminum Series piggyback reservoir rear shocks balance the performance of the truck from front to rear.
ICON Vehicle Dynamics 2021-2025 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.75” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2025 F-150 4WD Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Adjustable coilovers from 0-2.75" of lift height
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- 6061 Aircraft grade aluminum CNC machined components
- High strength alloy CNC machined lower bar pins
- FK rod end bearings for extended longevity and minimal deflection
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Coils Quantity Front | 2 |
| Front Shock Body Diameter | 2.5 IN |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Active or Passive Suspension | Passive |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Bushings Included | Yes |
| Front Shock Diameter | 2.5 IN |
| Grade Type | Performance |
| Maximum Lift | 2.75 IN |
| Maximum Lift Front | 2.75 IN |
| Minimum Lift Front | 0 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Shock Body Diameter | 2 IN |
| Rear Shock Diameter | 2.5 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Reservoir Style | Internal |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Front Spring Rate Type | Linear |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Title | ICON 2021-2025 Ford F-150 4WD, 0-2.75" Lift, Stage 2 Suspension System |
