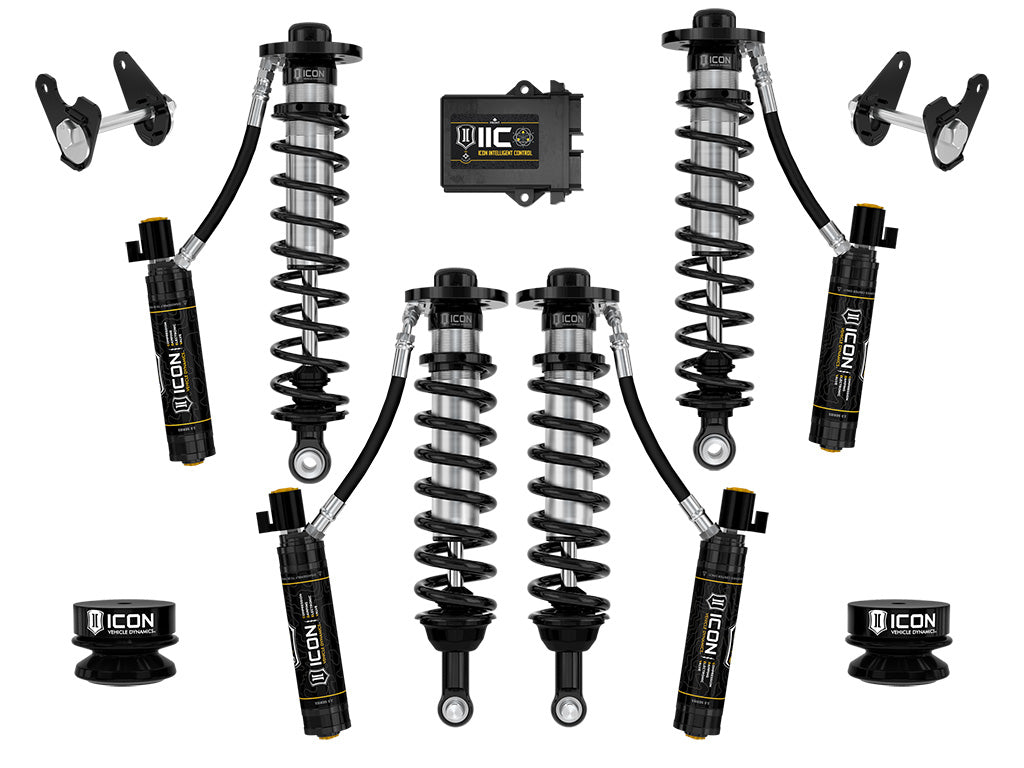

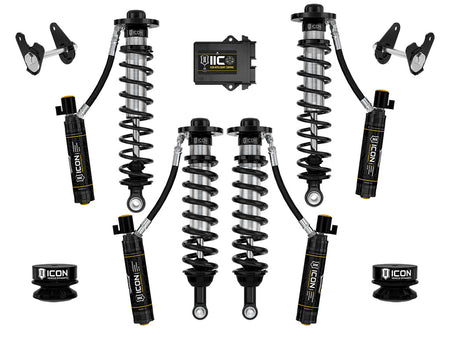

ICON Vehicle Dynamics K93254 - 22-23 FORD F150 LIGHTNING -3.5"-0" STAGE 4 LOWERING SUSPENSION SYSTEM
Couldn't load pickup availability
Embrace the future of automotive electrification while upholding the high performance legacy of the F-150 Lightning with the ICON Stage 4 Lowered Suspension System featuring CDEV, powered by ICON Intelligent Control.
Marking a groundbreaking advancement for ICON Vehicle Dynamics and in keeping with the F-150 Lightning's legacy as a high-performance street truck, ICON proudly presents the first addition to its lineup of lowering suspension systems specifically designed for the 2022-2023 Ford F-150 Lightning. This Stage 4 Suspension System offers lowered front right height adjustment from 0-2” and rear ride height adjustment from 0-4” below stock, lowering the center of gravity, providing a level stance, and enhancing handling characteristics to improve upon the F-150 Lightning's renowned reputation. Embracing the future and the electrification of the F-150 Lightning, this Stage 4 system features ICON Compression Damping Electronic Valve (CDEV) front and rear coilovers, powered by ICON Intelligent Control (IIC), providing active, electronic compression damping adjustment. The ICON CDEV technology sets new standards for suspension performance, allowing for precise, on-the-fly damping adjustments to adapt to varying terrain and driving conditions. Experience unparalleled control and comfort as the CDEV/IIC system utilizes advanced algorithms and data from onboard sensors along with user defined settings to make lightning-fast adjustments, optimizing the suspension response for maximum traction, stability, and overall driving enjoyment. Additional features such as ride quality optimized coilover spring rates, rear camber correction kit, and compliant micro cellular foam bump stops round out the suspension package. With the Stage 4 suspension system, ICON Vehicle Dynamics empowers you to explore the limits of your F-150 Lightning while embracing the future of automotive electrification.
Features & Benefits
- Improved suspension performance and ride quality over stock
- High strength alloy CNC machined coilover lower bar pins
- Rear camber correction kit for proper wheel alignment
- Compliant micro cellular foam rear bump stop kit softens bottom outs
- Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Adjustable coilovers yield up to 0-2" of front lowered height and 0-4” of rear lowered height below stock
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
- ICON engineered coil springs with optimized spring rates for improved ride quality
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Minimum Drop Front | 0 IN |
| Minimum Drop Rear | 0 IN |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Maximum Drop Front | 2 IN |
| Vehicle Ride Height Reduction | 4 IN |
| Maximum Drop Rear | 4 IN |
| Spring Color | Black |
| Title | ICON 2022-2023 Ford F-150 Lightning, 3.5-0" Drop, Stage 4 Suspension System |
| Front Spring Rate Type | Linear |
| Rear Spring Rate Type | Linear |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
