ICON Vehicle Dynamics K93301 - 2014-2020 FORD EXPEDITION 4WD .75-2.25" STAGE 1 SUSPENSION SYSTEM

2014-2020 FORD EXPEDITION 4WD .75-2.25" LIFT STAGE 1 SUSPENSION SYSTEM

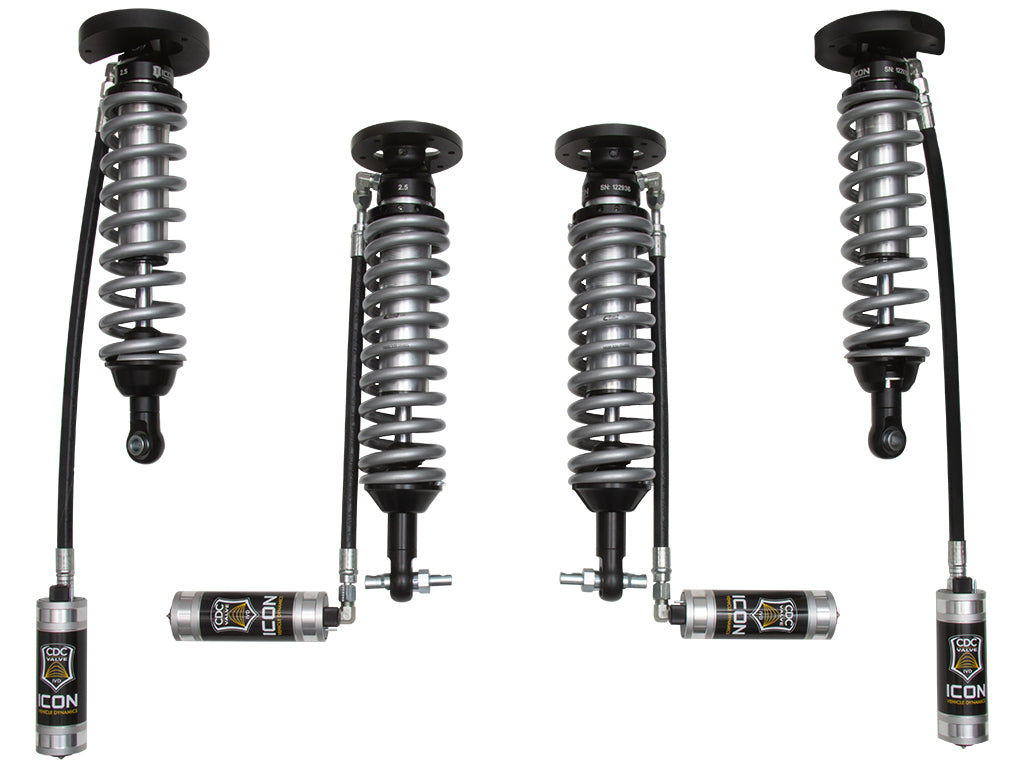

Like any application that makes its way into ICON’s research and development department, the Ford Expedition was examined thoroughly in stock form in an attempt to find where the OE components were limiting performance or could be improved upon. After hours of in-house R&D and thousands of miles of real-world testing a collection of ICON components including front and rear coilovers and upper control arms were organized into two staged suspension systems that each delivers a unique level of performance to the Expedition. A remarkable level of performance is established with the 2.5 Series remote reservoir CDC Valve shocks included in ICON’s Stage 1 system, and only improves with the addition of upper control arms (tubular steel or billet aluminum) in the Stage 2 systems. These systems drastically increase the vehicle’s ride quality, reduce body roll, maximize wheel travel, and provide a lift height range of .75-2.25” to allow for the fitment of larger, more aggressive wheel and tire combinations. A bolt-on design also makes for an easy install with the ability for the vehicle to be returned to stock if needed.

Features

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Unique valving developed specifically for the 2014-2020 Expedition
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from .75-2.25" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no cutting, or welding necessary for install

Specifications

Note: Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #124: REAR LIFT HEIGHTS OVER 1" INCREASE ADVANCETRAC SENSITIVITY Ships in multiple boxes

Short Description: SUSPENSION SYSTEM

Invoice Description: 14-20 EXPEDITION 4WD STAGE 1 SUSP SYS

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Warranty: 1 Year
