Industrial Injection PDM-CB-1413HC - 1989-2002 Cummins 12v/24v H Series Coated Rod Bearings (std)
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.

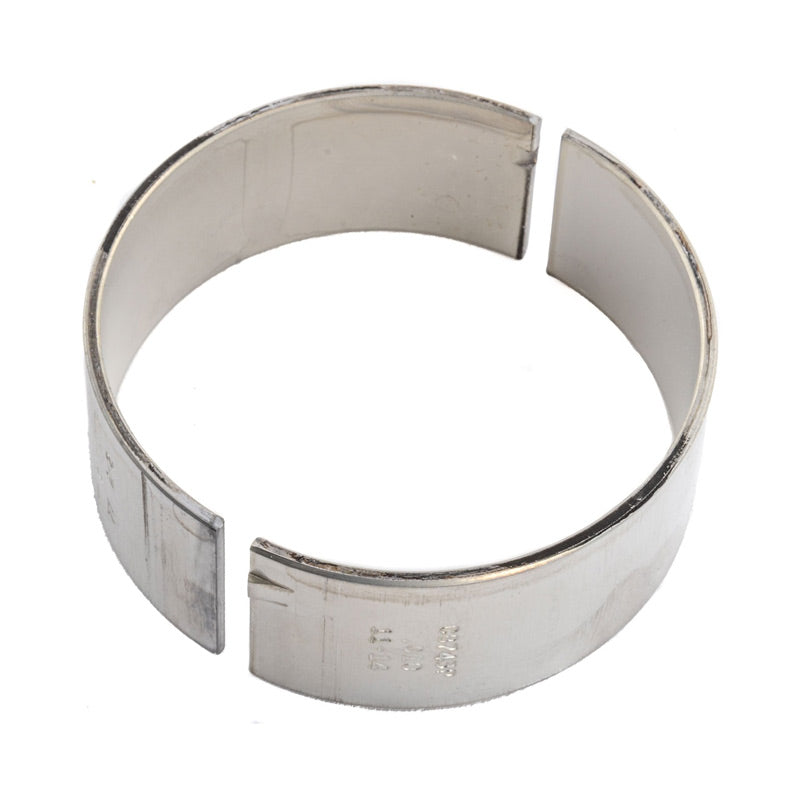

These coated rod bearings are made by Industrial Injection under part number PDM-CB-1413HC. Fits the 1994-2002 Dodge Ram 2500 and Ram 3500, and the 1989-1993 Dodge D250, D350, W250 and W350. They feature Clevite H and HX series construction with a hardened steel back and thin overlay, designed for high-performance applications. A dry film lubricant coating reduces friction and protects bearing surfaces during cold starts and oil starvation events by creating a barrier between the bearing and crank journal; the coating contains moly and other ingredients that retain oil.
- Voltage: 12v
- Series: H and HX
- Bearing type: rod bearings
- Construction: hardened steel back with thin overlay
- Eccentricity: medium level
- Crush: high
- Chamfers: enlarged for greater crankshaft fillet clearance
- Finish: no flash plating for better seating
- HX series clearance:.001" extra
- Coating: dry film lubricant with moly
Weight: 1 lb
Country of Origin: United States
