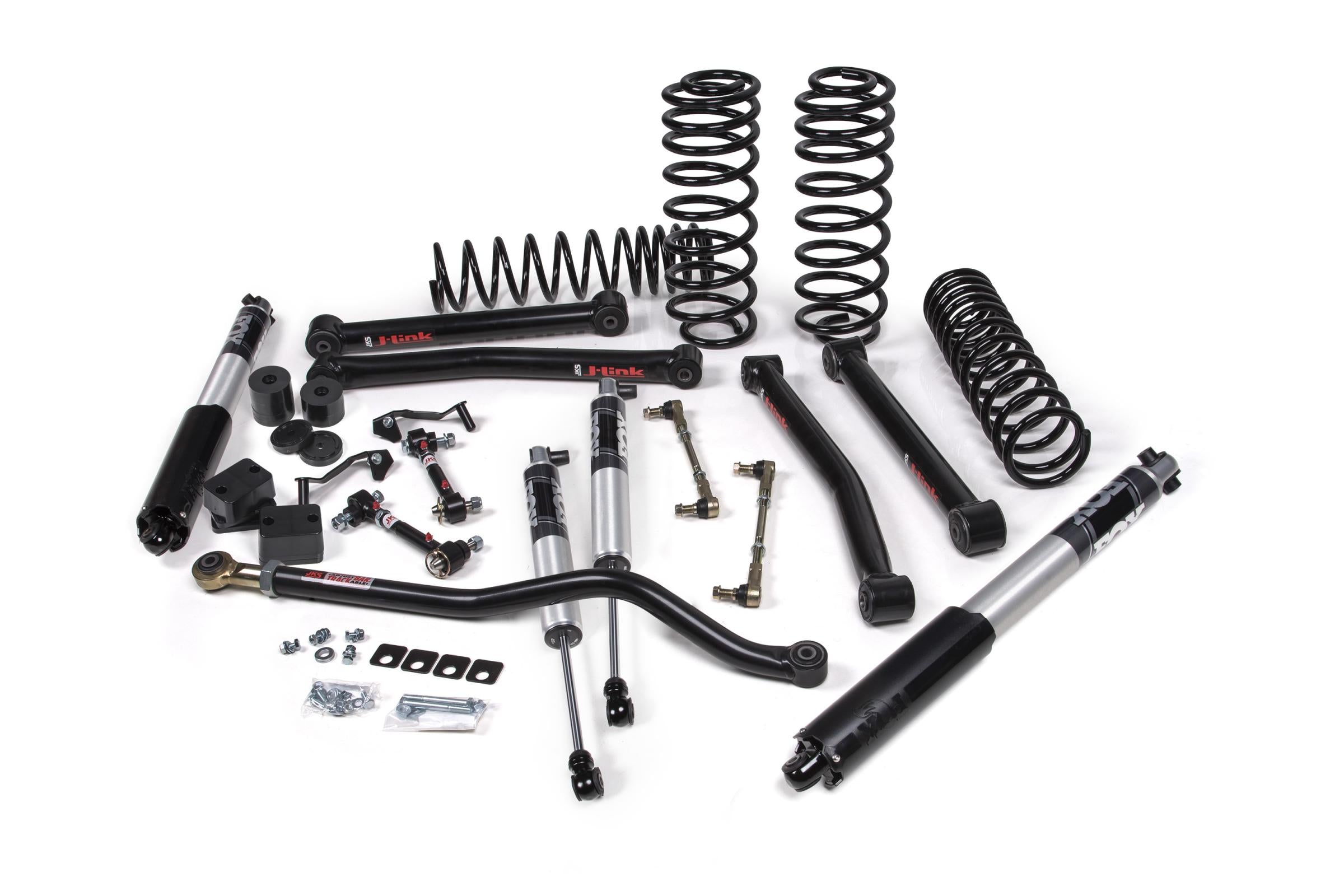

JKS Manufacturing JSPEC163PS J-Konnect 2.5 Inch 4 Door Fox 2.5 Performance Series Shocks

J-Konnect: Builds on J-Venture with heavy-duty J-Link lower control arms to improve strength and correct geometry.

For serious off-road use, step up to a JKS J-Konnect 2.5" suspension system for your JL Wrangler. J-Konnect™ can tackle aggressive terrain including rocks and ruts without giving up street manners or breaking the bank. J-Konnect system takes suspension component strength and suspension geometry a step further by adding front and rear fixed-length J-Link lower control arms along with a drag link flip kit and track bar braces. In addition to being significantly stronger than factory control arms, J-LINK lower control arms add front caster and rear wheelbase. Built from 2” x .250-wall DOM tubing, J-LINK control arms provide street-friendly NVH isolation with large factory style rubber bushings at both ends. The drag link flip kit flattens the steering angle to mimic factory angles, while the track bar adds strength and protection. Combined with the matched dual-rate coil springs, your selection of Jspec of Fox shocks, an adjustable track bar, Quicker Disconnect sway bar end links, and more. J-Konnect™ is ready for aggressive trail performance. Now available with the new Fox 2.5 Performance Series shocks! The 2.5" aluminum bodies with a race-developed main piston and true internal floating piston (IFP) separate gas and oil to provide consistent and fade-resistant performance. The 2.5-inch piston offers a greater force capability by moving more fluid and increasing damping and is less prone to cavitation.

Features

• Front/Rear Dual Rate Coil Springs (standard or HD) designed to great ride quality across any terrain
• HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle
• Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation
• Front/Rear Bump Stop Extensions to properly limit suspension up travel
• Front/Rear J-Link Lower Control Arms to add strength and correct caster
• Available with the new Fox 2.5 Performance Series shocks. The large 2.5" aluminum body and high flow piston design allows for greater cooling, tunability and control
• tuned for a plush on-road feel with excellent damping performance on the trail.

Specifications

Note: Rubicon Models (all kits): Tire: 37x12.50; Wheel: 17x9; Backspacing: 5"; Non-Rubicon Models (all kits): Tire: 35x12.50; Wheel: 17x9; Backspacing: 5"; Other tire/wheel sizes can be used, however may require additional modifications.

Short Description: 2.5" Lift Kit

Invoice Description: JKS J-KONNECT 2.5IN LIFT KIT

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Warranty: 5 Year, 100,000-mile PLUS Protection
