MagnaFlow Exhaust Products 15196 - Street Series Polished Axle Back System
Couldn't load pickup availability
Magnaflow Street Series Stainless Axle-Back System

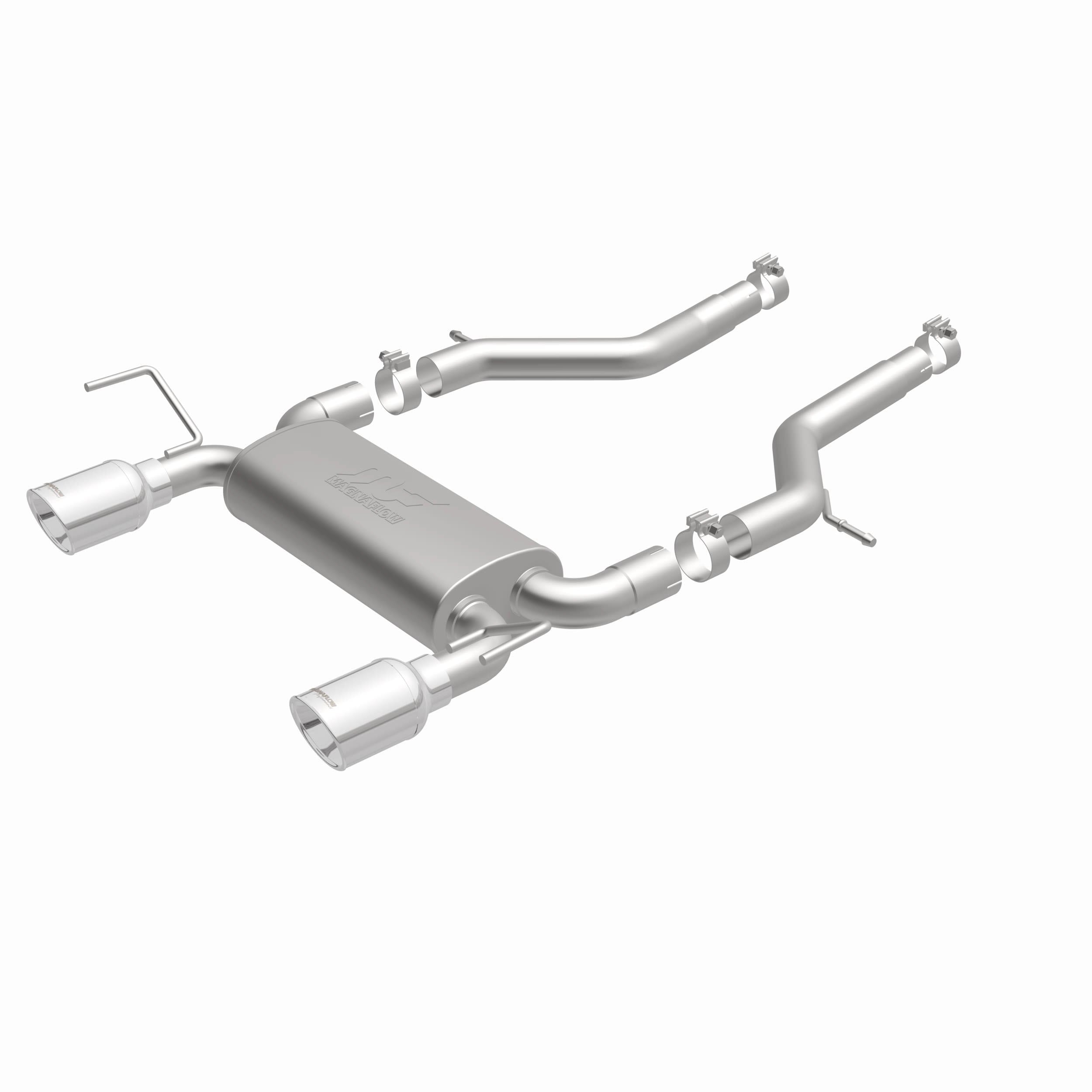

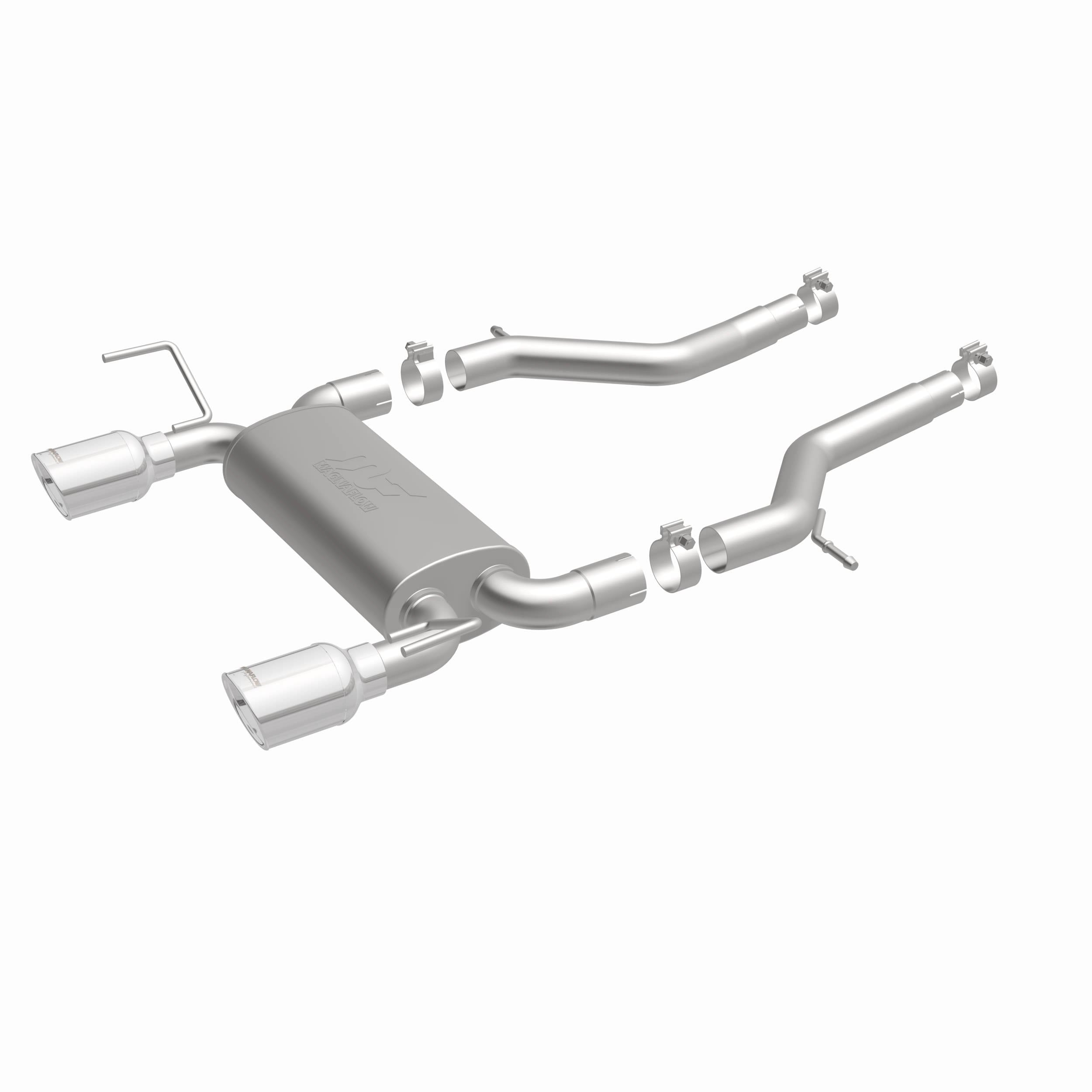

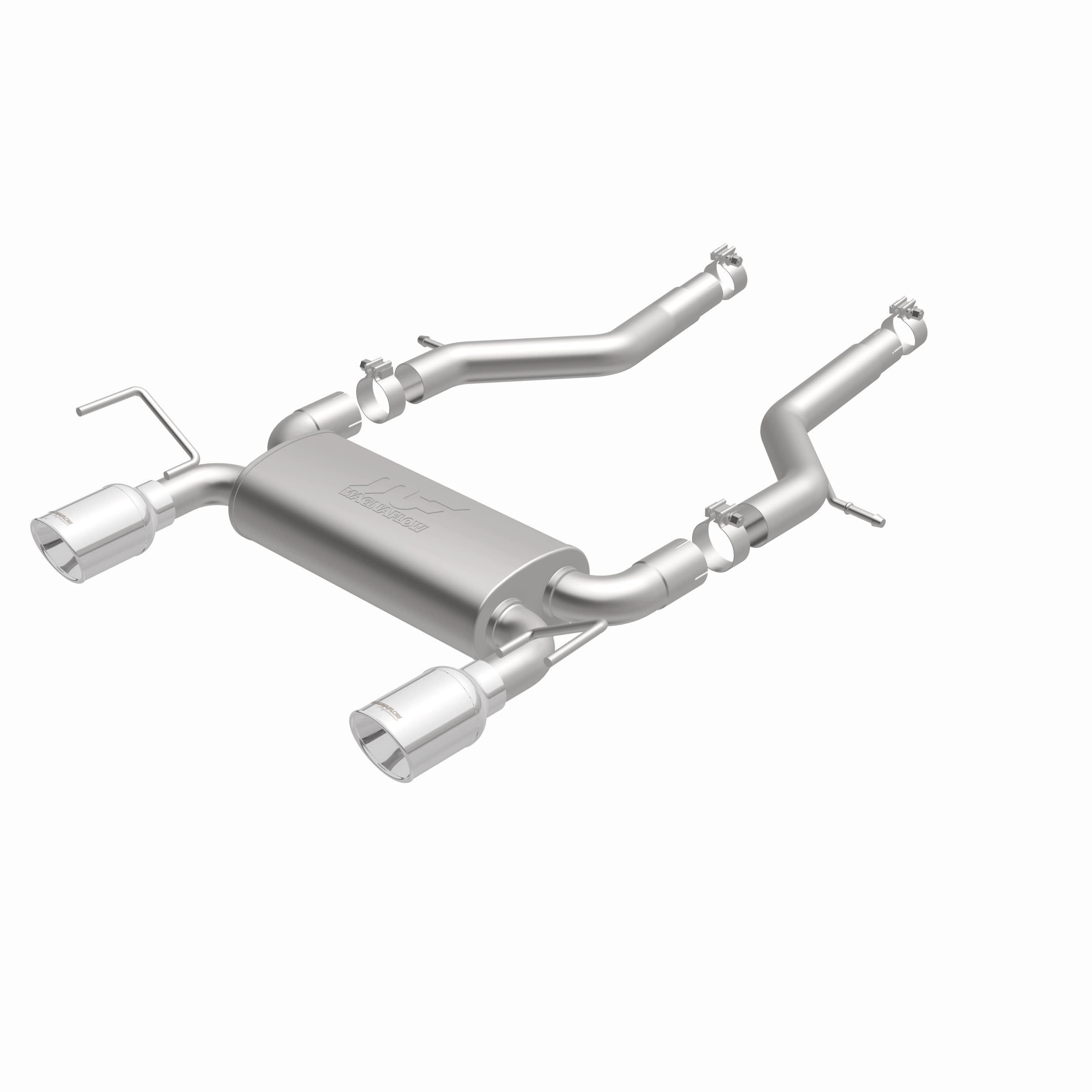

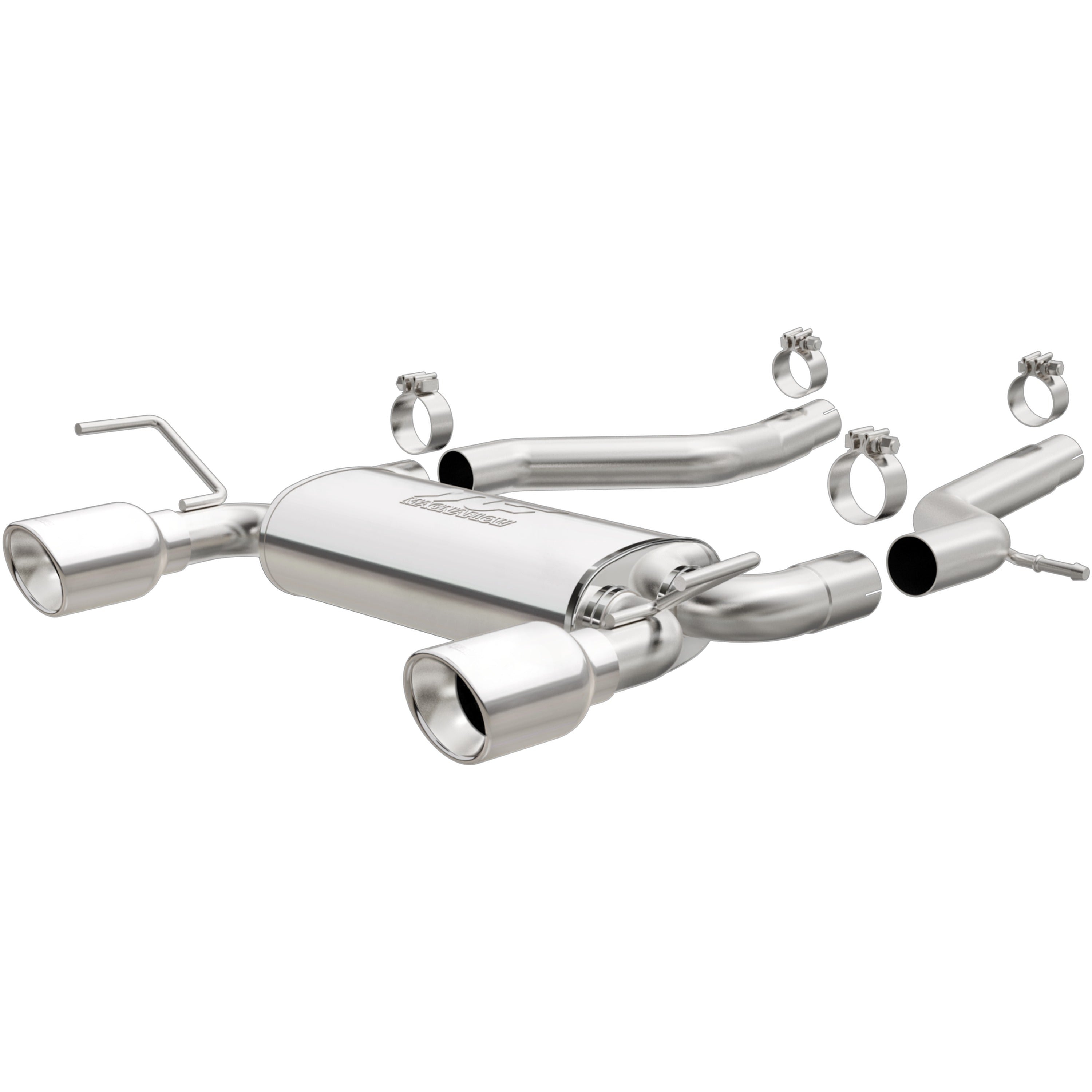

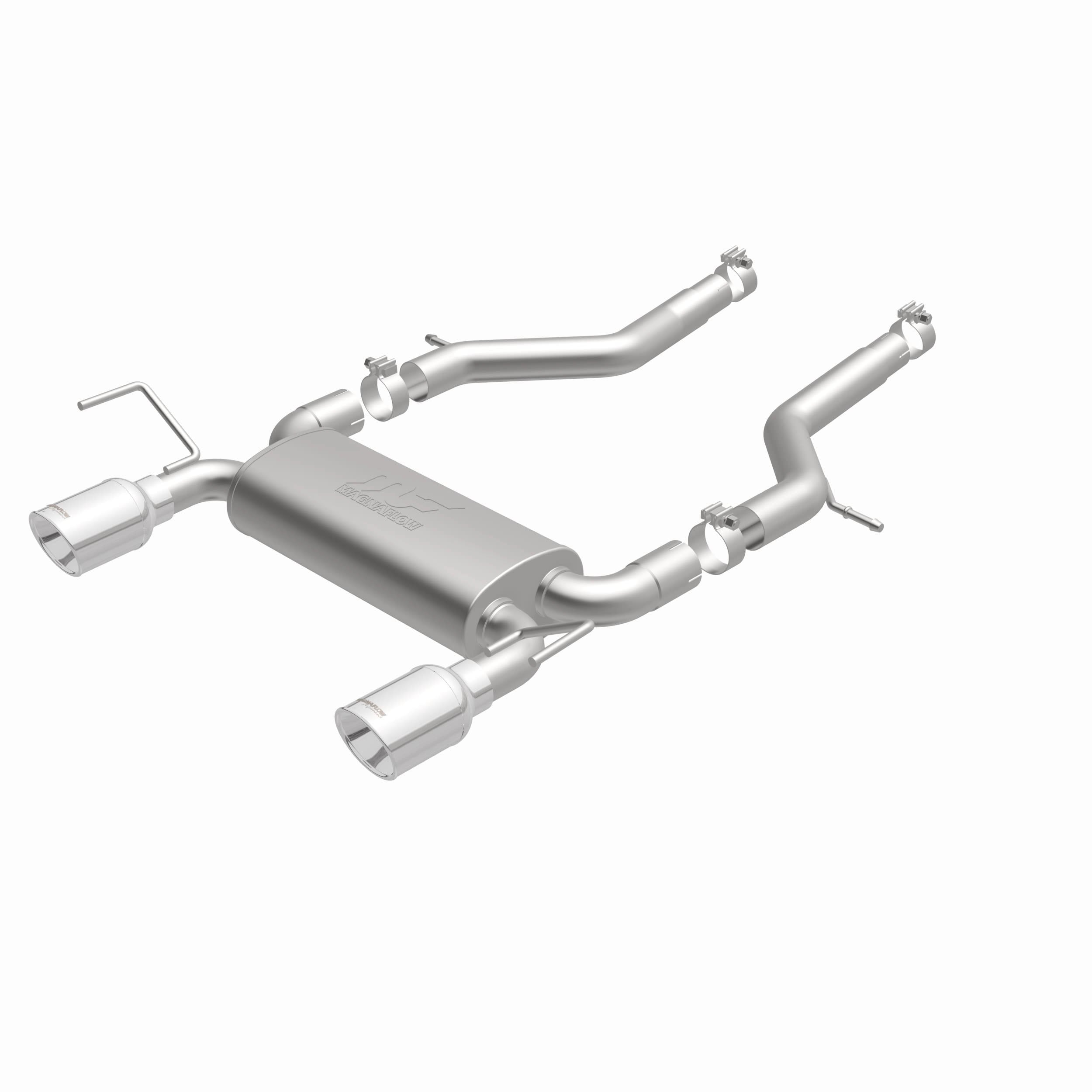

The MagnaFlow 2013-2018 Cadillac ATS Street Series Axle-Back Performance Exhaust System brings enhanced engine sound and dyno-proven performance to your 3.6L 2013-2018 Cadillac ATS with a healthy helping of our deep, resonant signature exhaust note at Moderate exterior and Mild interior sound levels. Thanks to its durable, corrosion resistant stainless steel design, this Cadillac ATS exhaust system will handle whatever tarmac you decide to leave your mark on. This performance exhaust kit features an axle-back layout designed to replace your Cadillac ATS's exhaust system from near the rear axle on back. With its fast-flowing, mandrel bent 2.5in. main piping and 1 Straight-Through mufflers ending in a Dual Split Rear exit with 4in. Polished Welded-On Double Wall Angle Cut Rolled Edge tips, your ride will be sounding as awesome as it looks. Extensive 3D scanning during development has resulted in a direct-fit design that you can easily install yourself. 15196 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's 1-year limited finish warranty and limited lifetime construction warranty.
Features & Benefits
- Durable corrosion-resistant stainless steel construction
- Dyno-proven performance
- CNC precision robotic manufacturing techniques
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 4 IN |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 7.25 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | Yes |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler Body Height | 5 IN |
| Muffler Body Length | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 1 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Street |
| Valve Included | No |
| Catalytic Converter Included | No |
| Type | Axle Back |
| Title | MagnaFlow 2013-2018 Cadillac ATS 3.6L Street Series Axle Back Performance Exhaust System 15196 |
| Clamping Type | Round Band |
Installation Guide: Download PDF
