Magnaflow Rock Crawler Series Stainless Cat-Back System

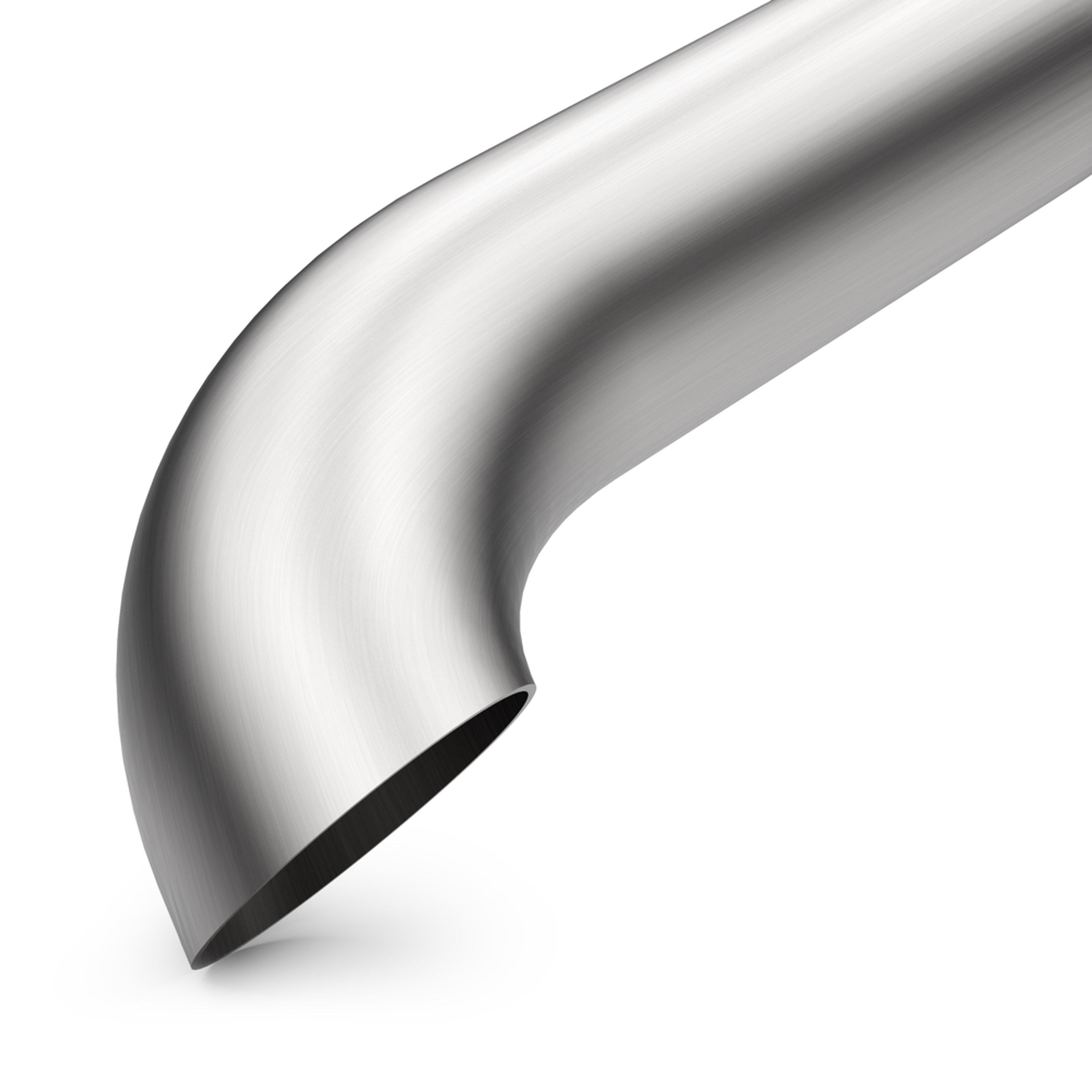

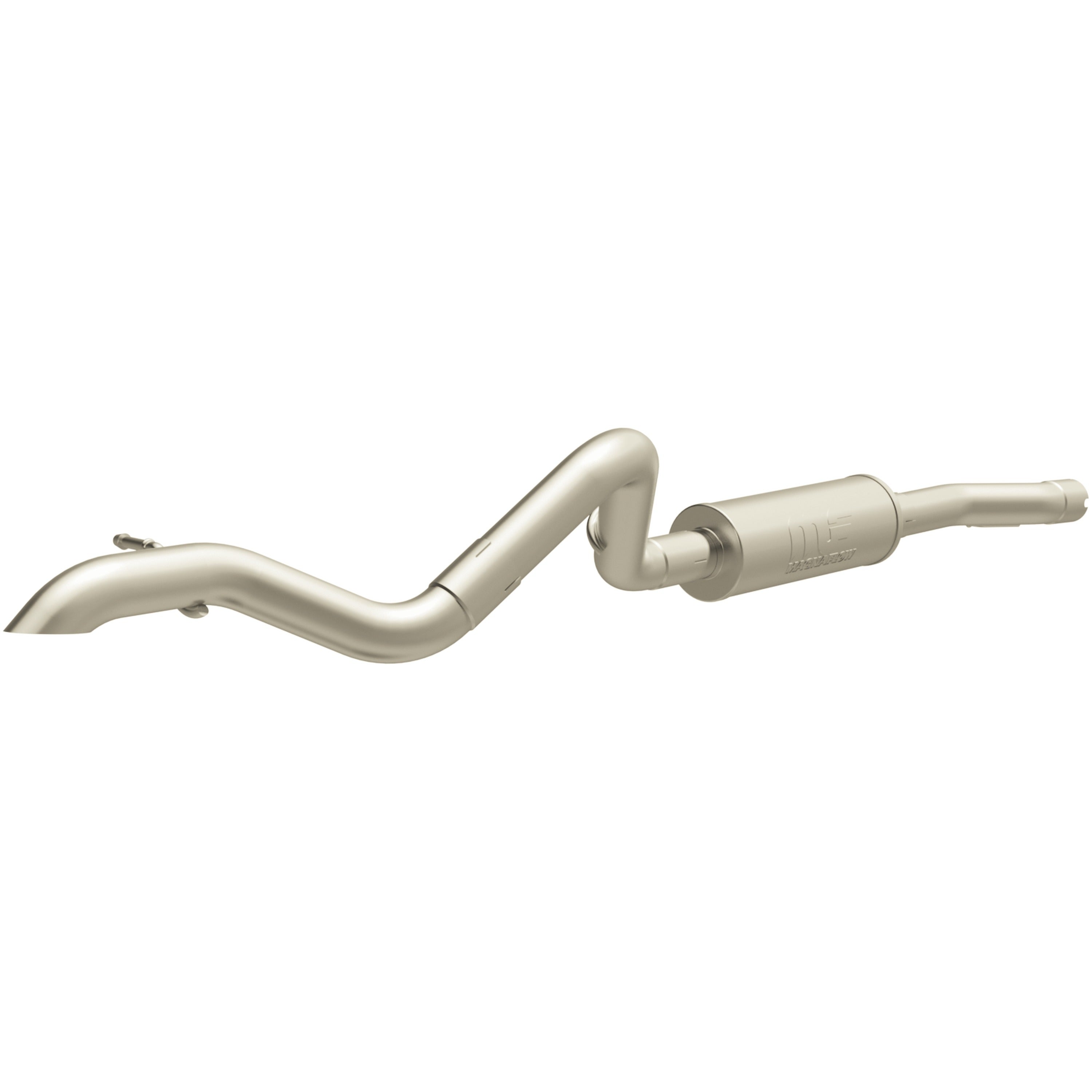

The MagnaFlow® Rock Crawler Series™ Cat-Back Performance Exhaust System 15236 brings superior boulder-climbing capabilities to your 3.6L 2012-2018 Jeep with a weight-optimized, dyno-tested, corrosion resistant and durable stainless steel design engineered to closely hug the undercarriage of your rig for improved ground clearance. Exhaust kit 15236 is engineered to produce our powerful, resonant signature exhaust note at Aggressive exterior and Moderate interior sound levels. Extensive 3D scanning was used during the development of this Jeep exhaust system to create a direct-fit design, enabling a do-it-yourself installation process. 15236's emissions-legal cat-back design replaces all your rig's exhaust components from the catalytic converter on back with its 2.5in. diameter mandrel bent main piping that passes through 1 Straight-Through mufflers before ending in a Single Straight Driver Side Rear exit. The turndown style tipless exit improves departure angles, allowing for more options when it comes to traversing tricky boulders and other off-road obstacles. Exhaust system 15236 is produced using advanced CNC precision robotic manufacturing techniques and backed by MagnaFlow®'s limited lifetime warranty.
Features & Benefits
- Extensive off-road testing to meet your sound and performance needs
- High clearance design
- Aggressive exterior sound tuning
Specifications

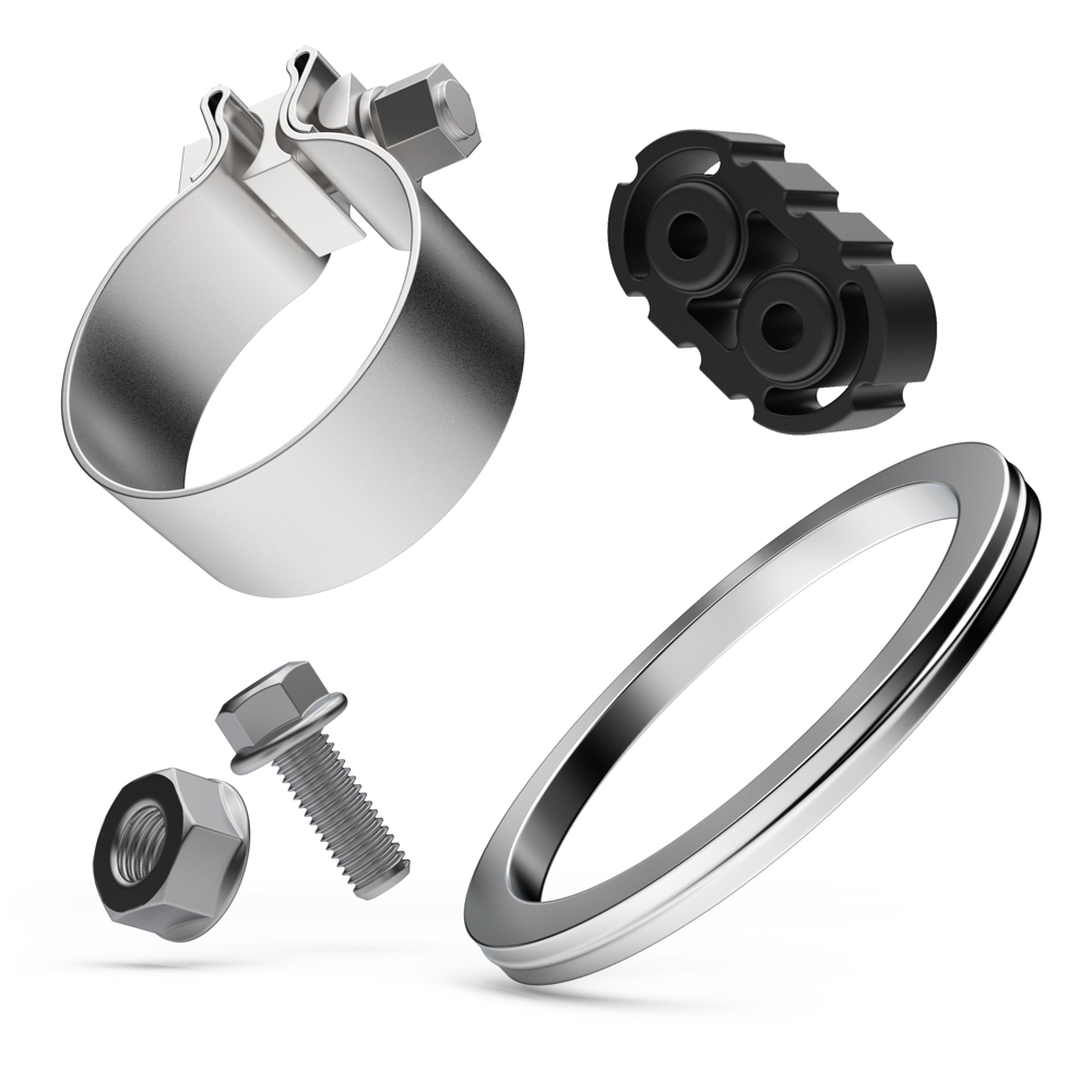

| Clamps Included | Yes |
| Exhaust Tip Quantity | 0 |
| Exit Style | Single Straight Driver Side Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler Body Height | 5 IN |
| Muffler Body Length | 14 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width | 5 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 1 |

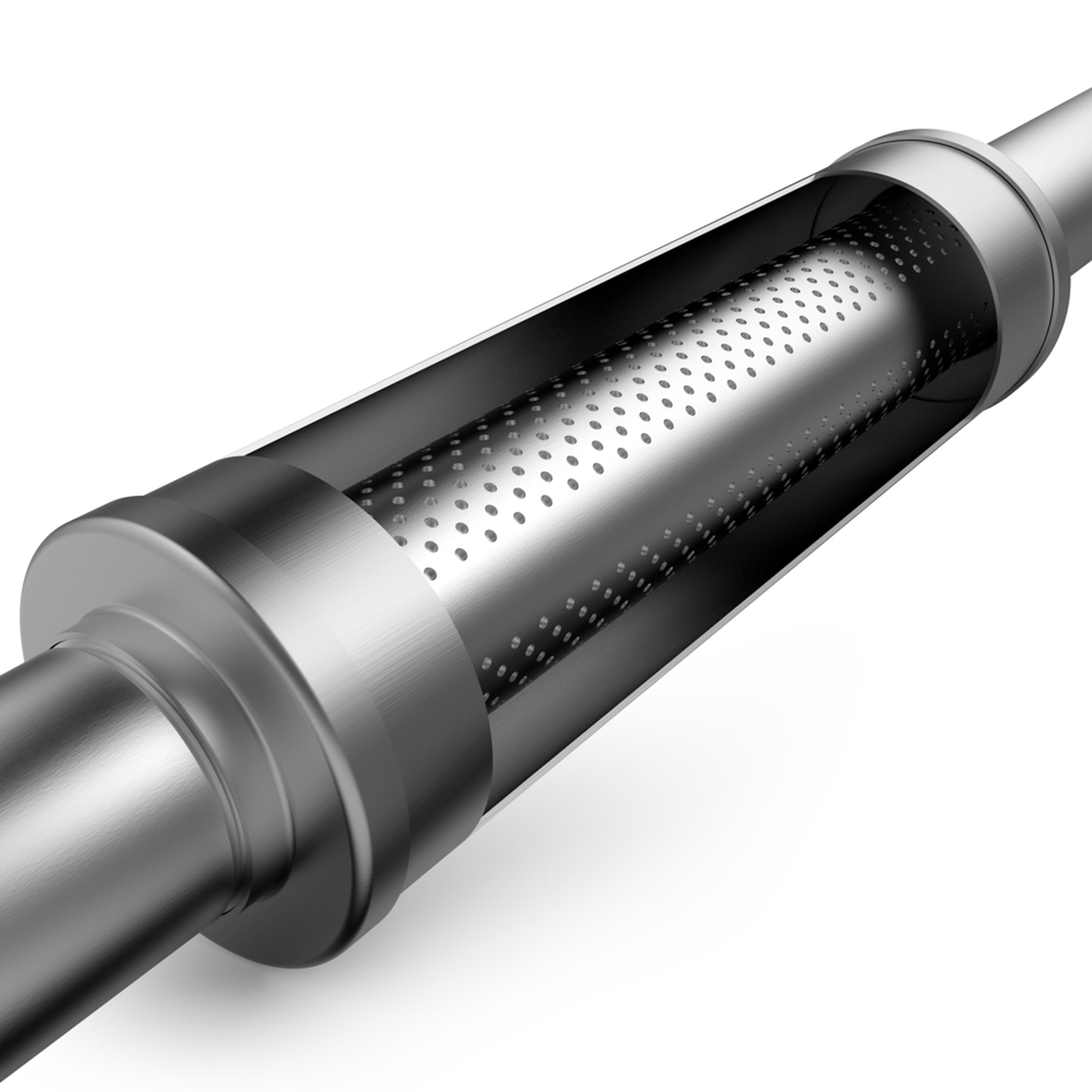

| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Rock Crawler |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Clamping Type | Round Band |
| Title | MagnaFlow® 2018 Jeep Wrangler JK 3.6L | 2012-2017 Jeep Wrangler 3.6L Rock Crawler Series™ Cat-Back Performance Exhaust System 15236 |
Installation Guide: Download PDF
