MagnaFlow Exhaust Products 15745 - Touring Series Polished Cat-Back System
Couldn't load pickup availability
Magnaflow Touring Series Stainless Cat-Back System

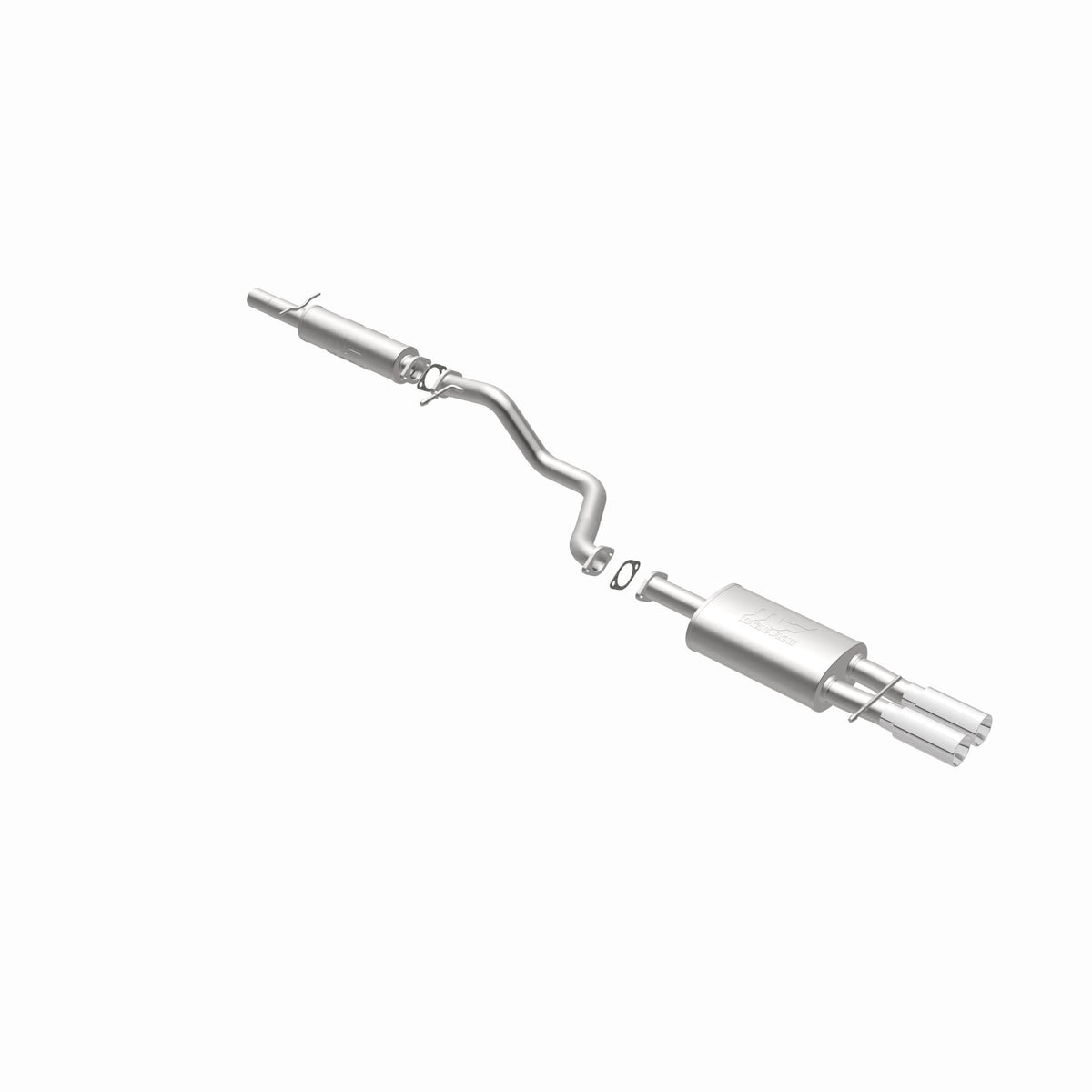

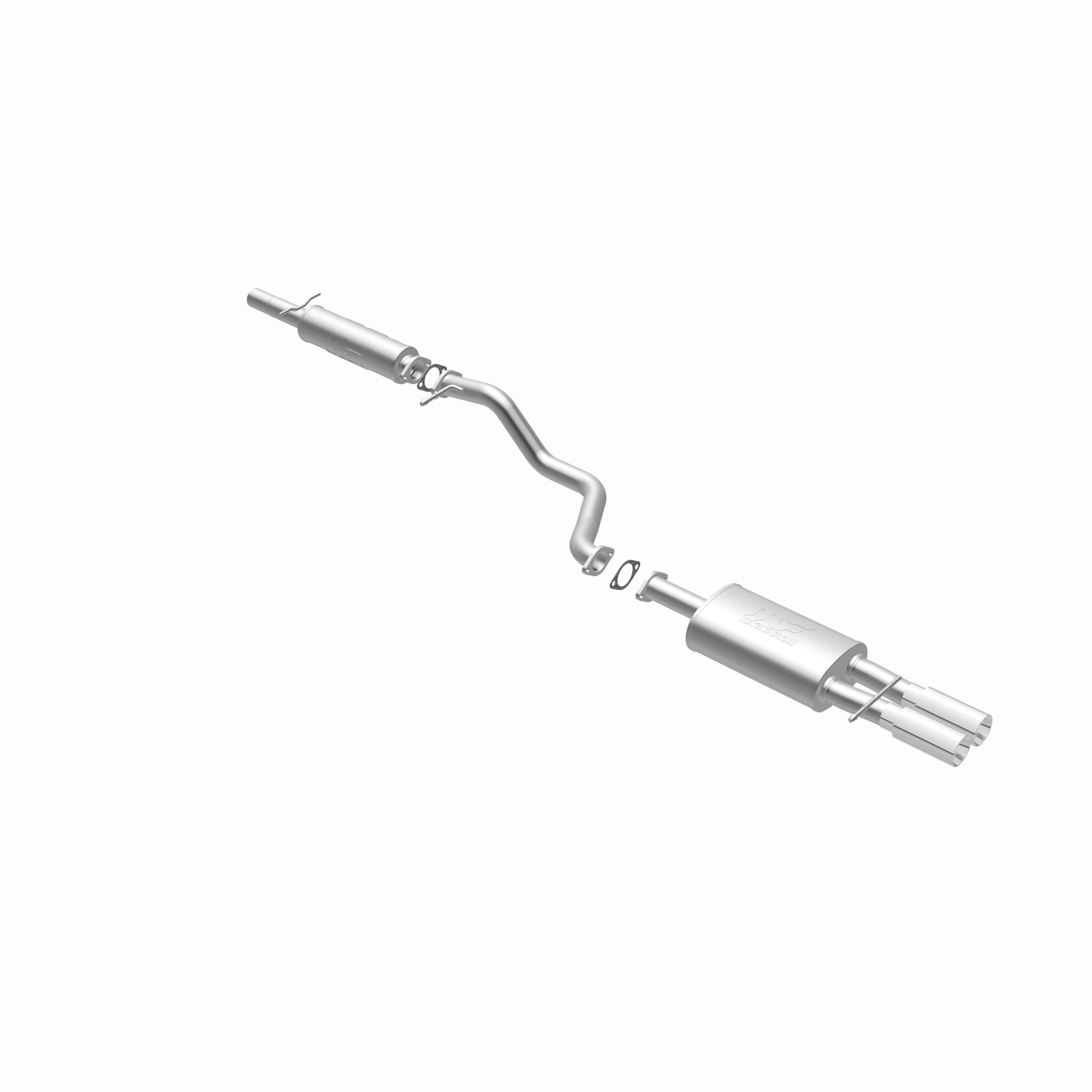

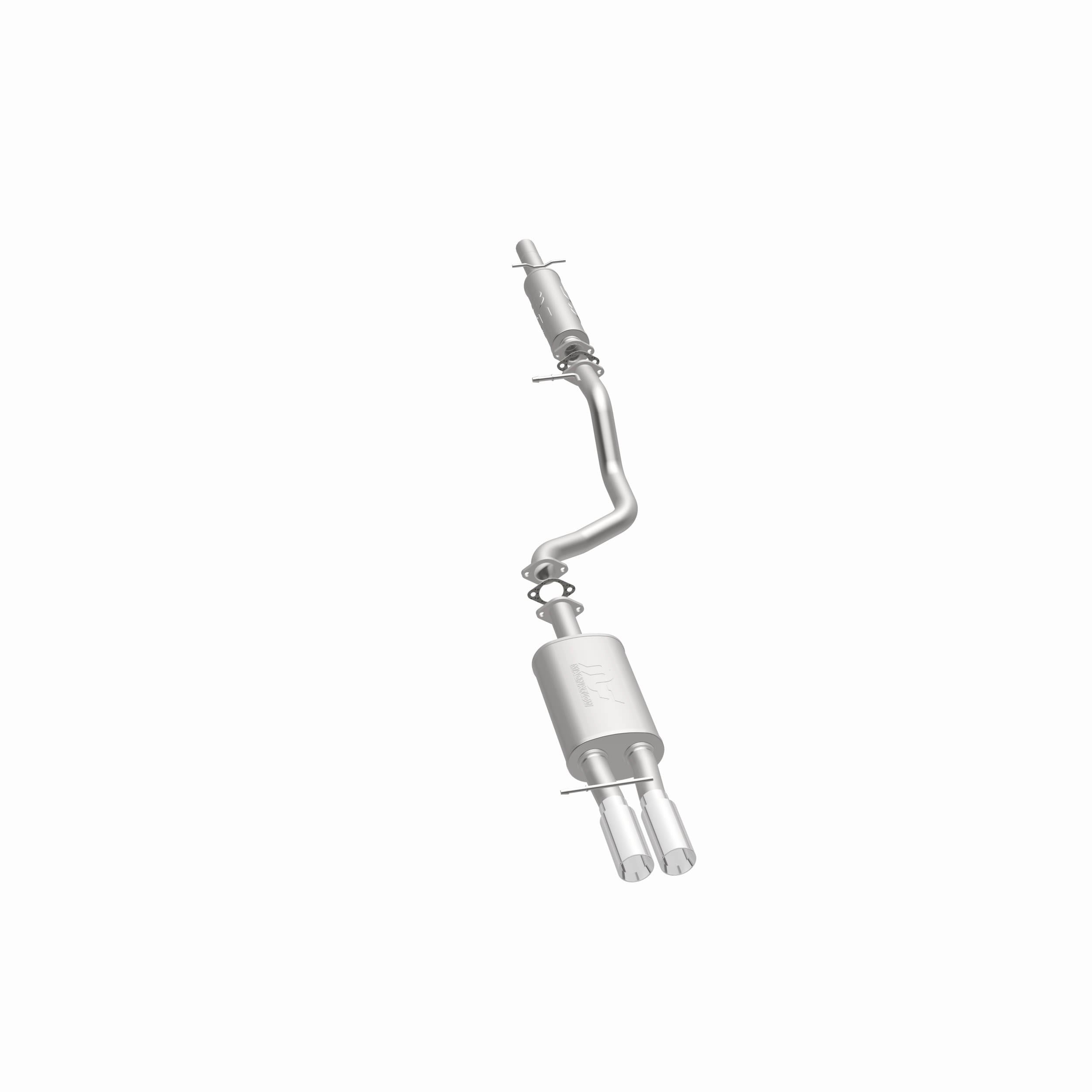

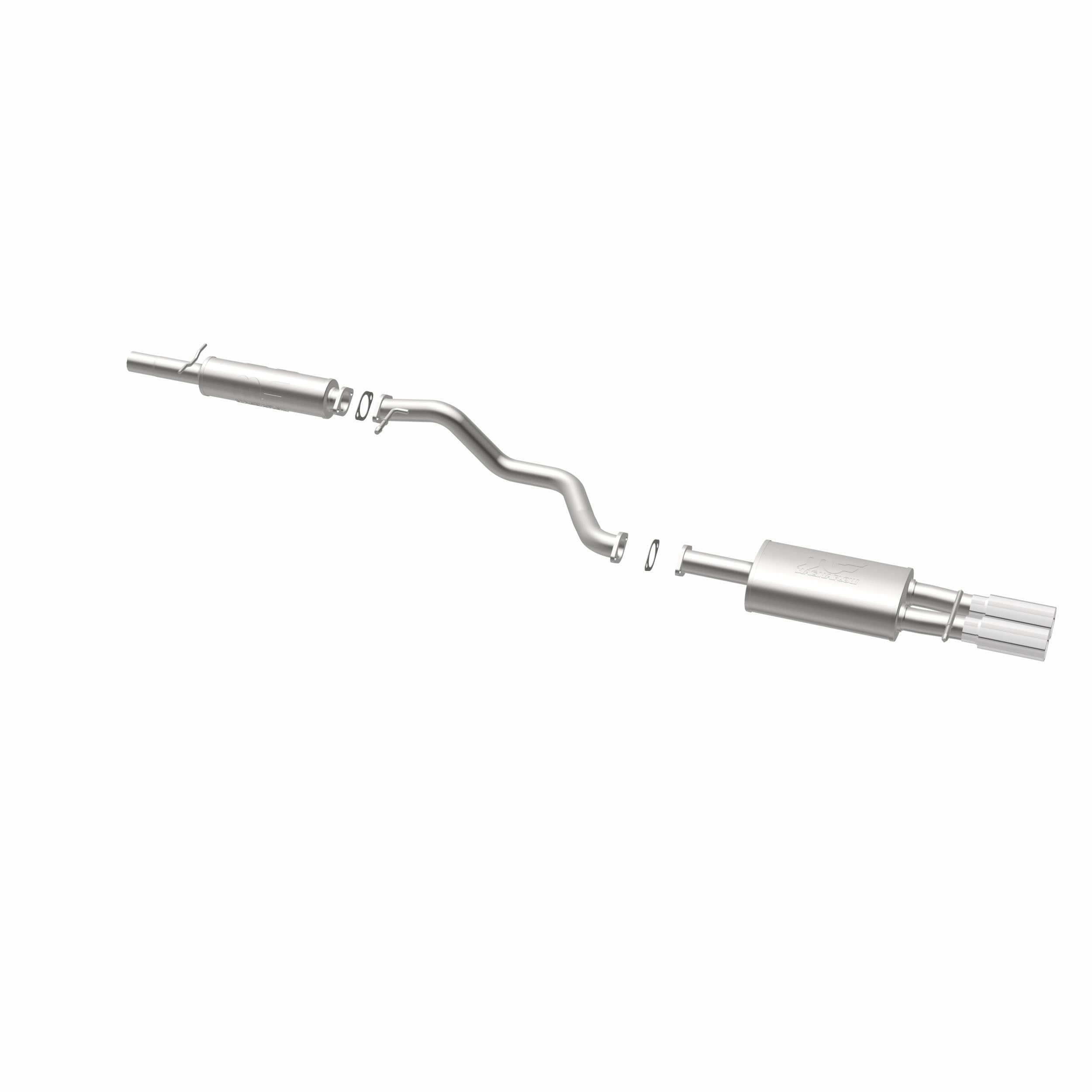

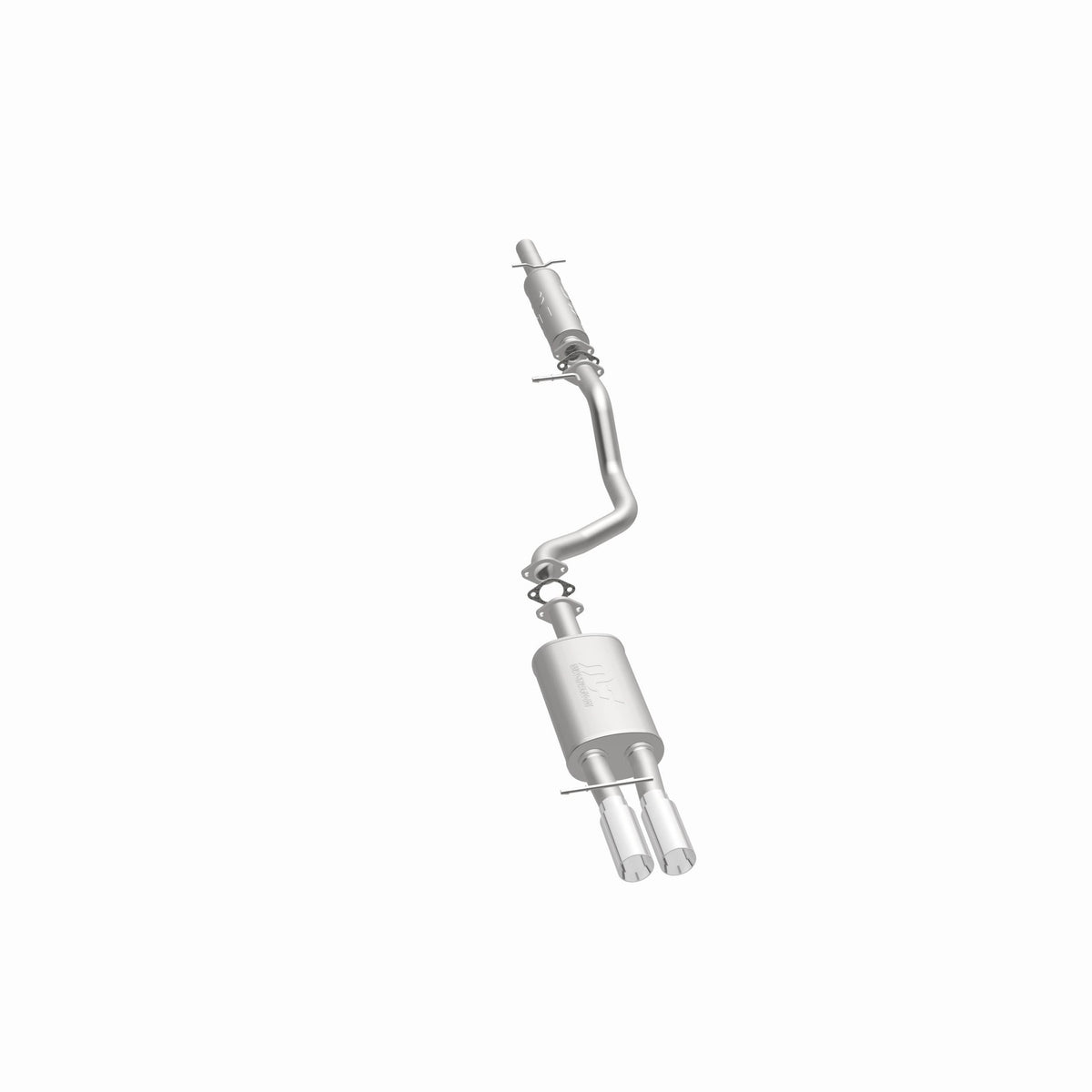

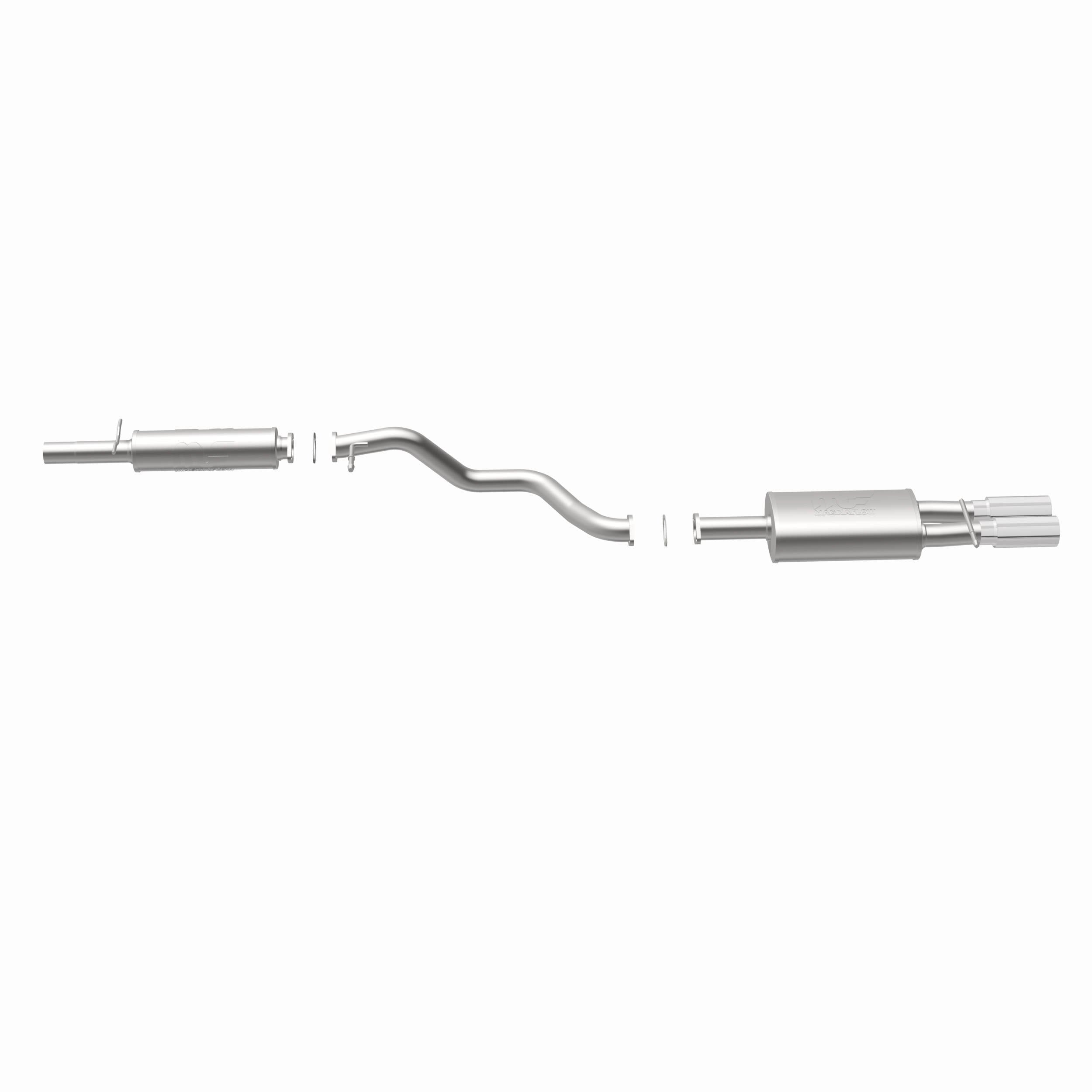

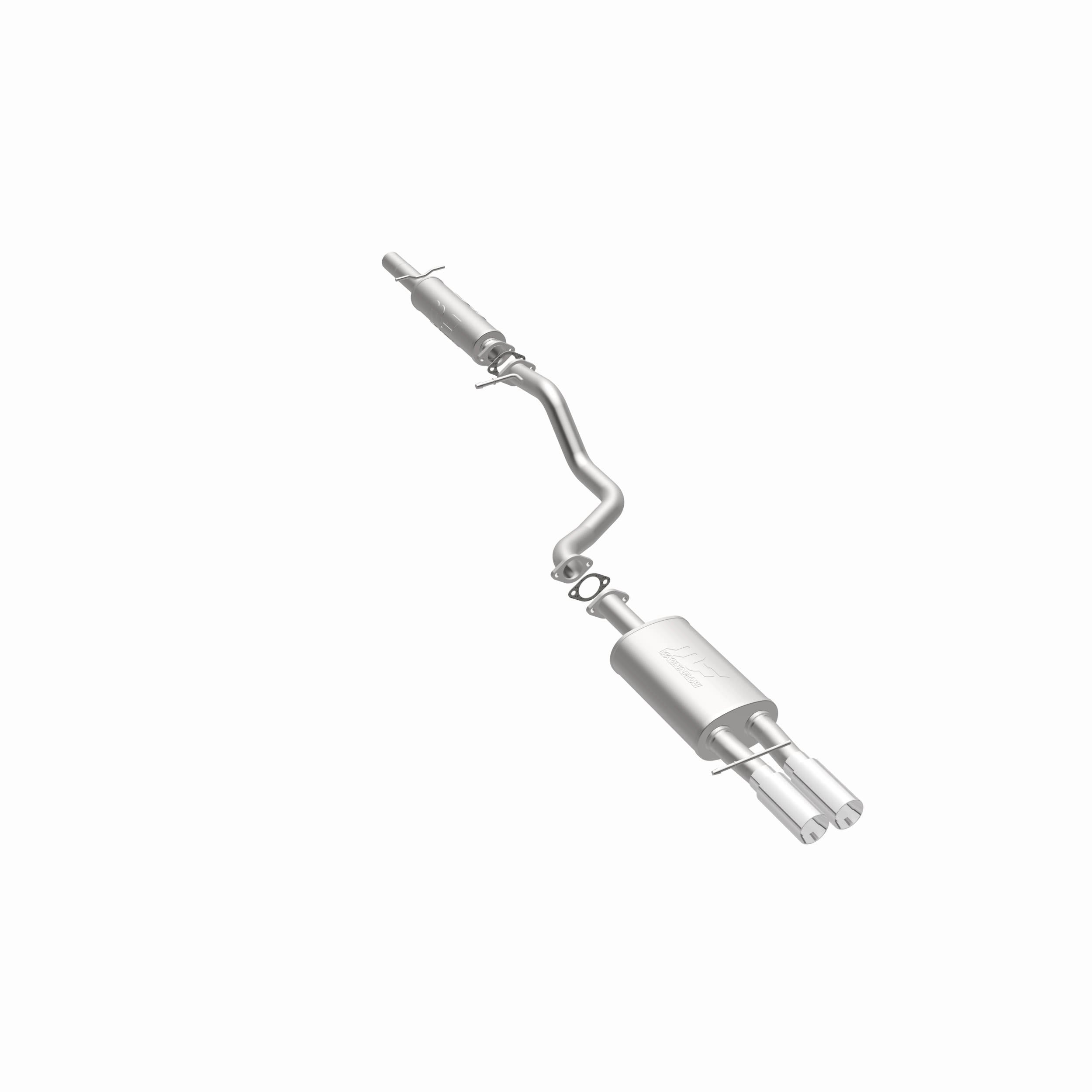

The MagnaFlow Touring Series Cat-Back Performance Exhaust System 15745 is the perfect partner for your 1.8L, 2.8L 1999-2005 Volkswagen to take on a grand tour or a weekend cruise thanks to the powerful, resonant exhaust note and dyno-proven performance it brings to the table. This durable, corrosion resistant stainless steel exhaust kit is engineered to conquer the miles with ease while enhancing your driving experience with Moderate exterior and Mild interior sound levels generated through its fast-flowing, mandrel bent 2.25in. main piping and 2 Straight-Through muffler that terminate in a Dual Straight Driver Side Rear exit with 3in. Polished Welded-On Double Wall Straight Cut Rolled Edge tips. 15745 features a cat-back layout design to replace your import's stock exhaust components from the catalytic converter on back. This Volkswagen exhaust system is compatible with 1999-2005 engines. The use of extensive 3D scans made during the development process has resulted in an easy-to-install, direct-fit design that fits your Volkswagen like a glove. 15745 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's limited lifetime construction warranty.
Features & Benefits
- 409 Stainless Steel Construction
- Mandrel bent tubing
- Increased Horsepower and Torque
Specifications
| Muffler Body Length Position Rear | 14 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Height Position Front | 4 IN |
| Series | Touring |
| Title | MagnaFlow Touring Series Cat-Back Performance Exhaust System 15745 |
| Type | Cat-Back |
| Valve Included | No |
| Clamps Included | No |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Straight Cut |
| Exhaust Tip Diameter | 3 IN |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 7.5 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Straight Driver Side Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 2.25 IN |
| Mounting Bracket Included | No |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 4 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 14 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 4 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Catalytic Converter Included | No |
Installation Guide: Download PDF
