MagnaFlow Exhaust Products 16560 - Touring Series Polished Cat-Back System
Couldn't load pickup availability

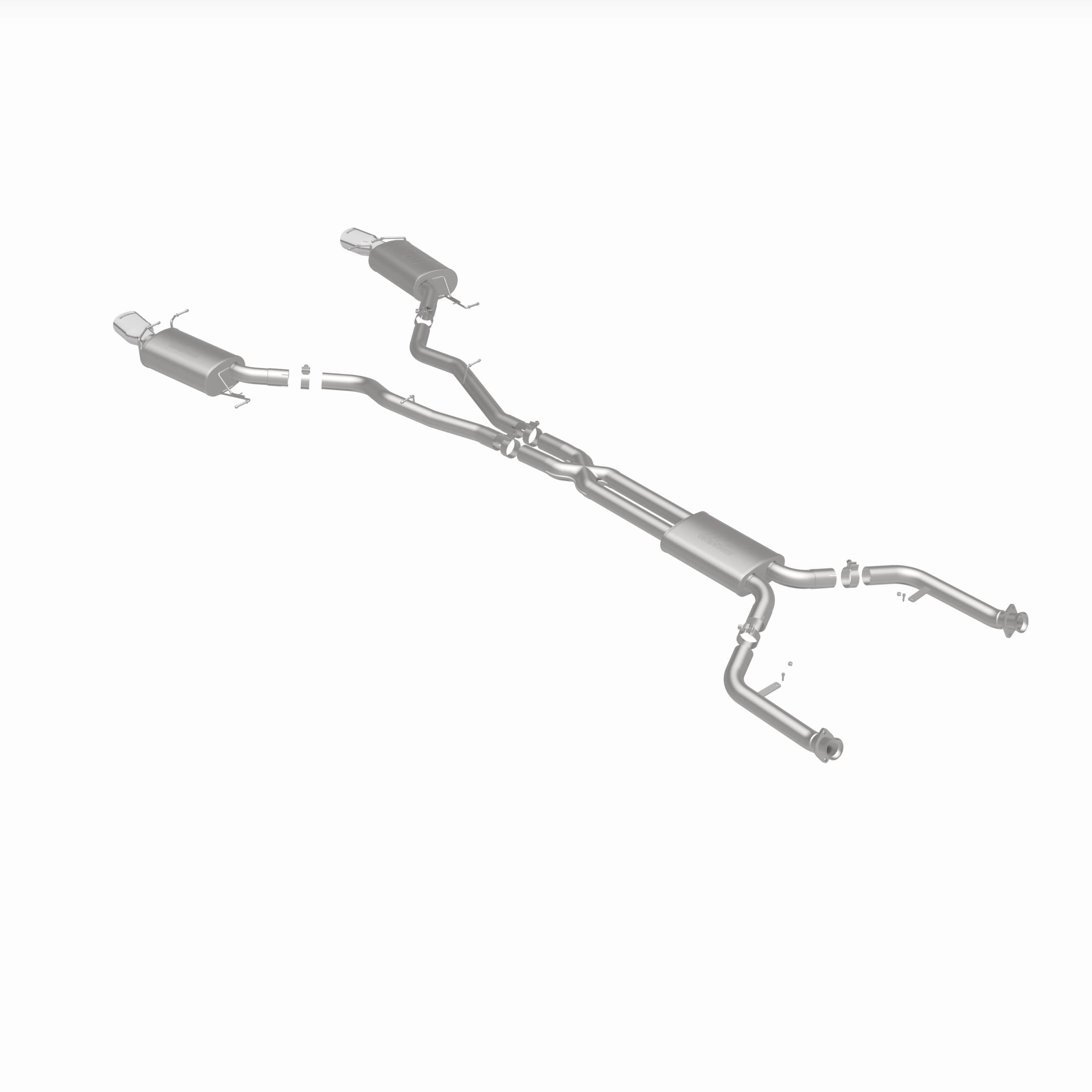

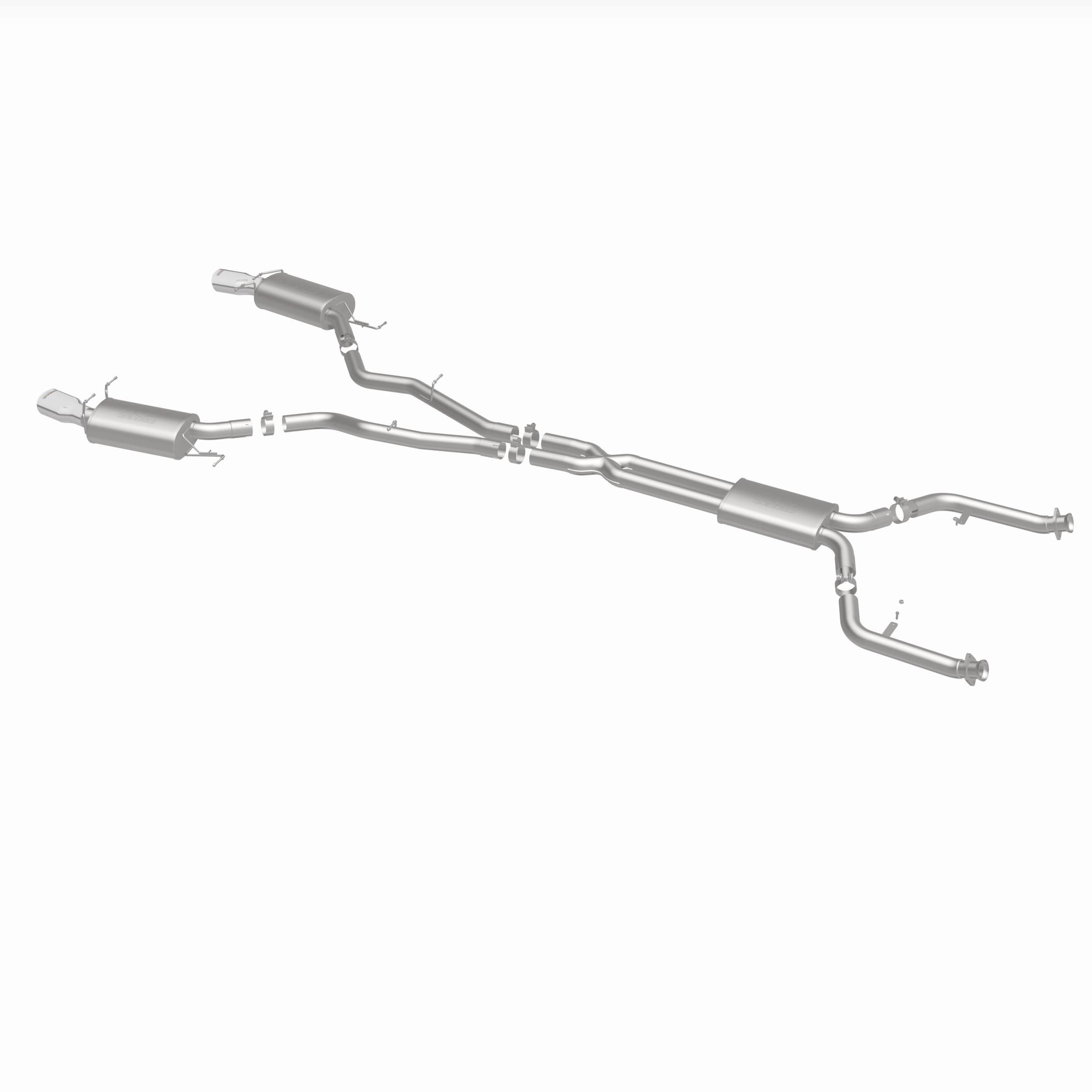

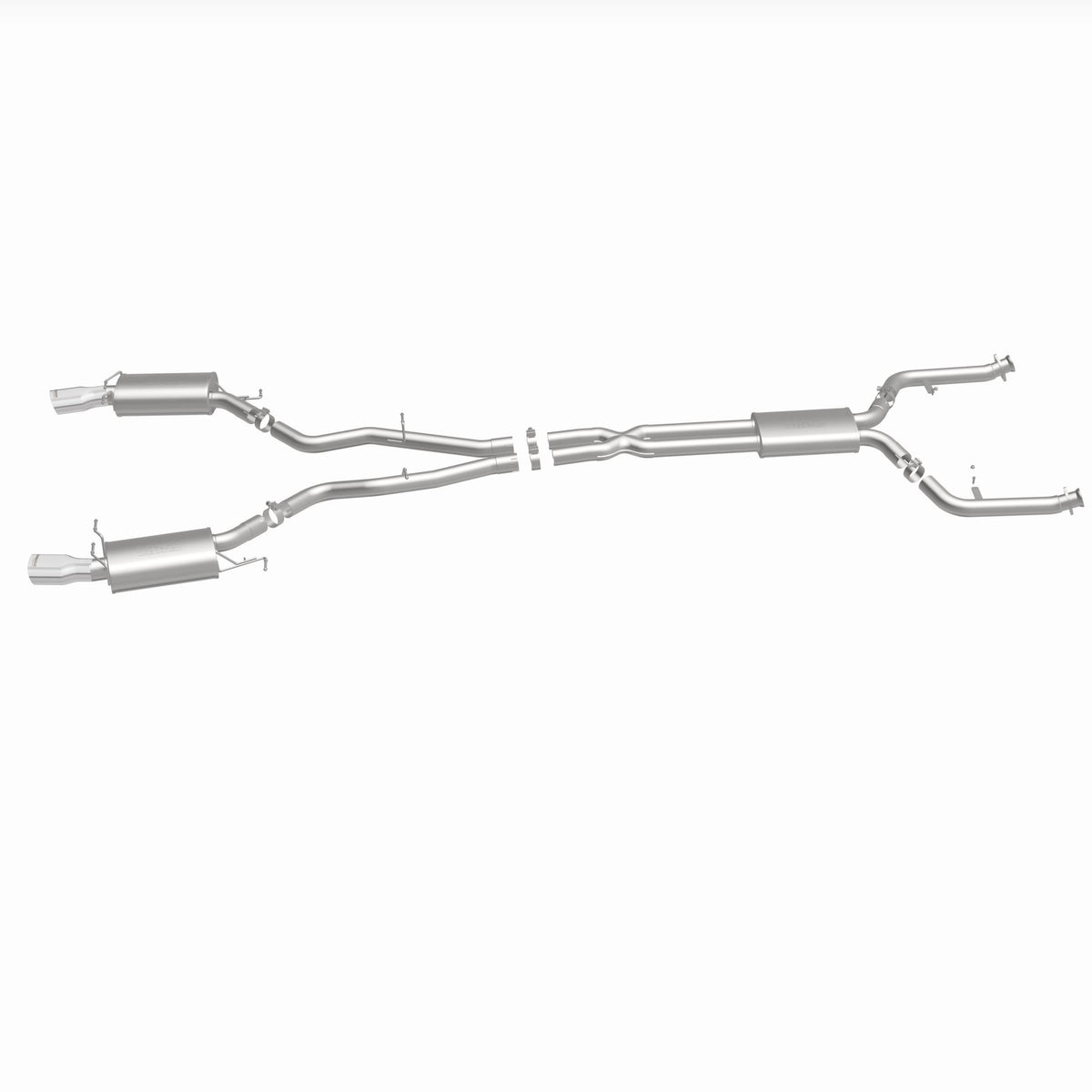

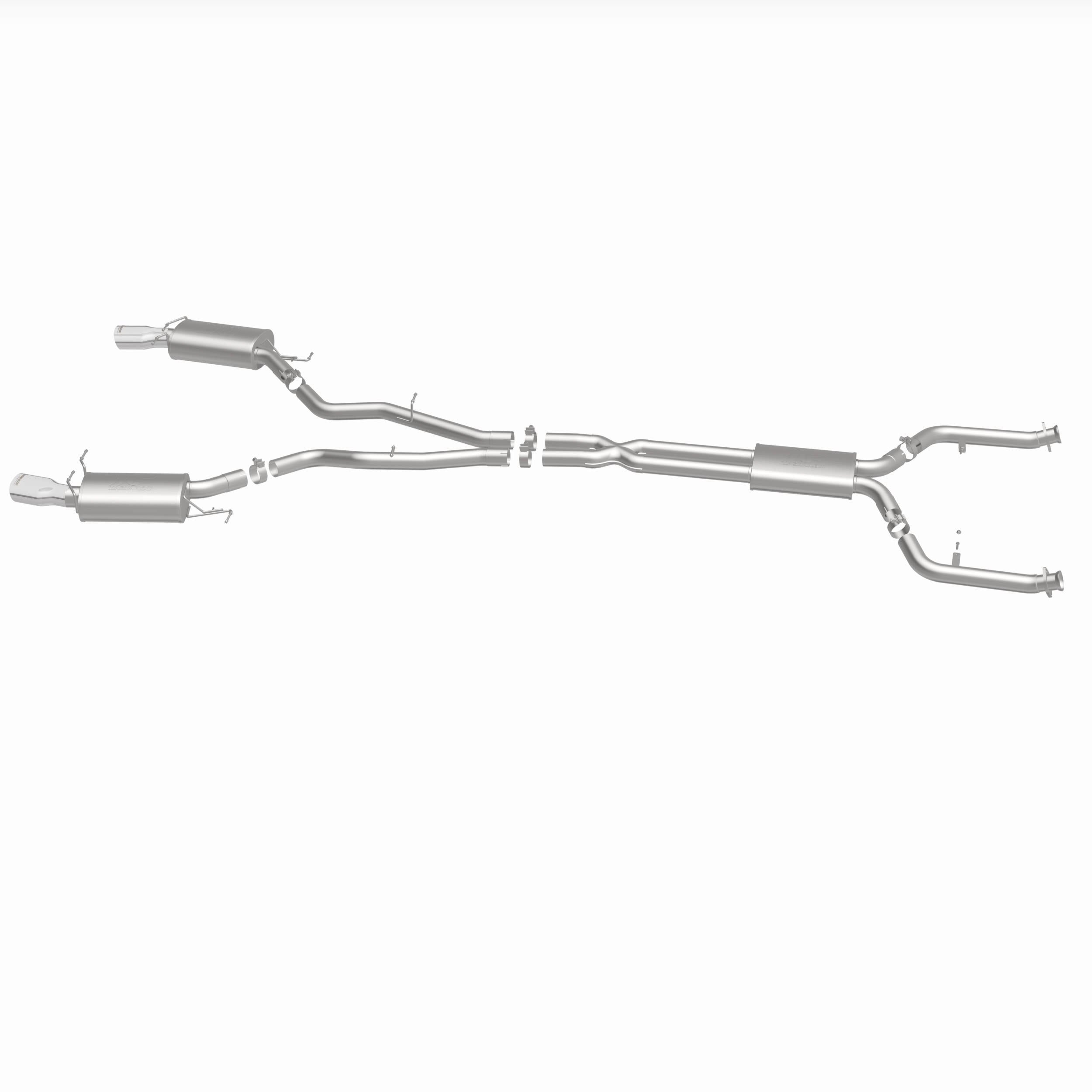

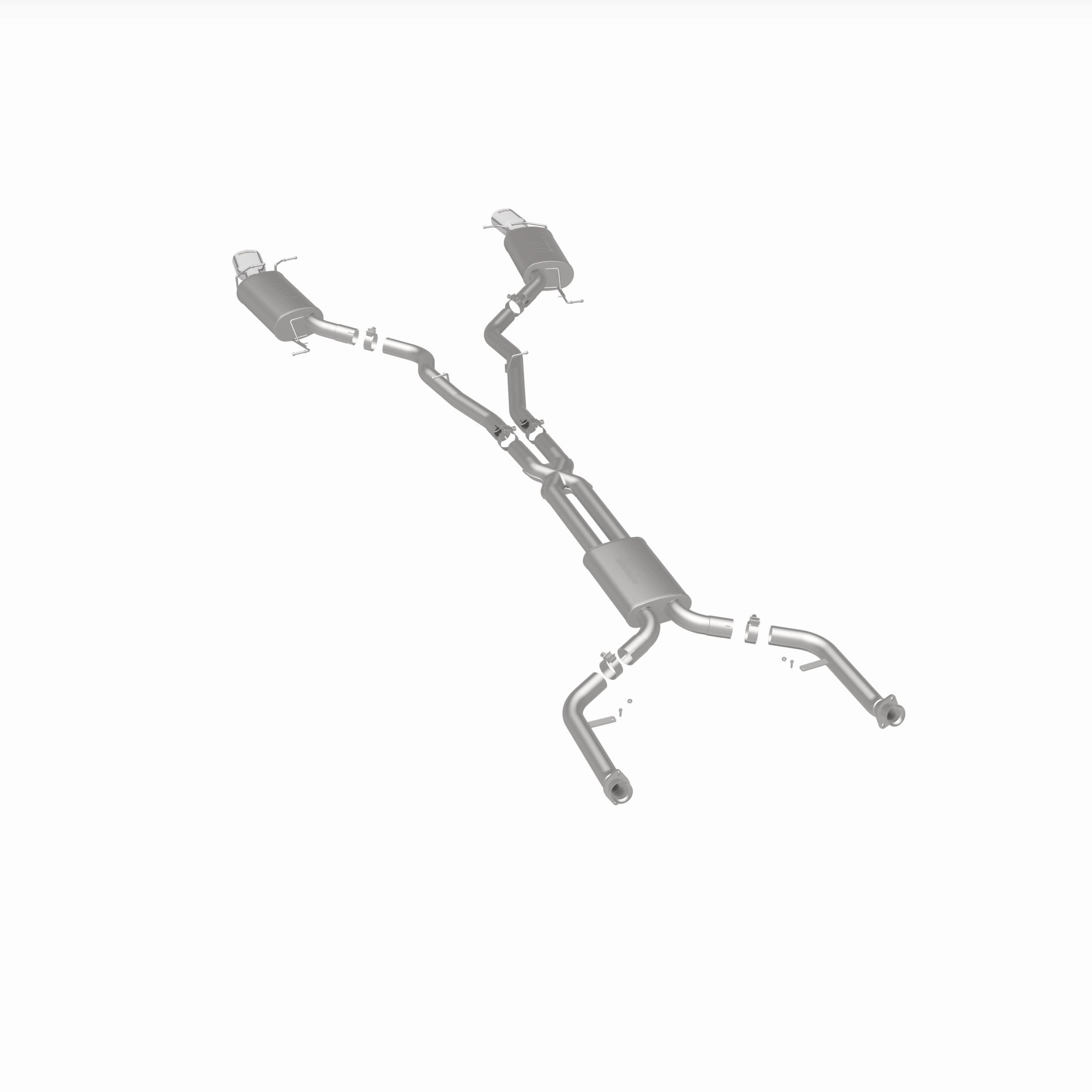

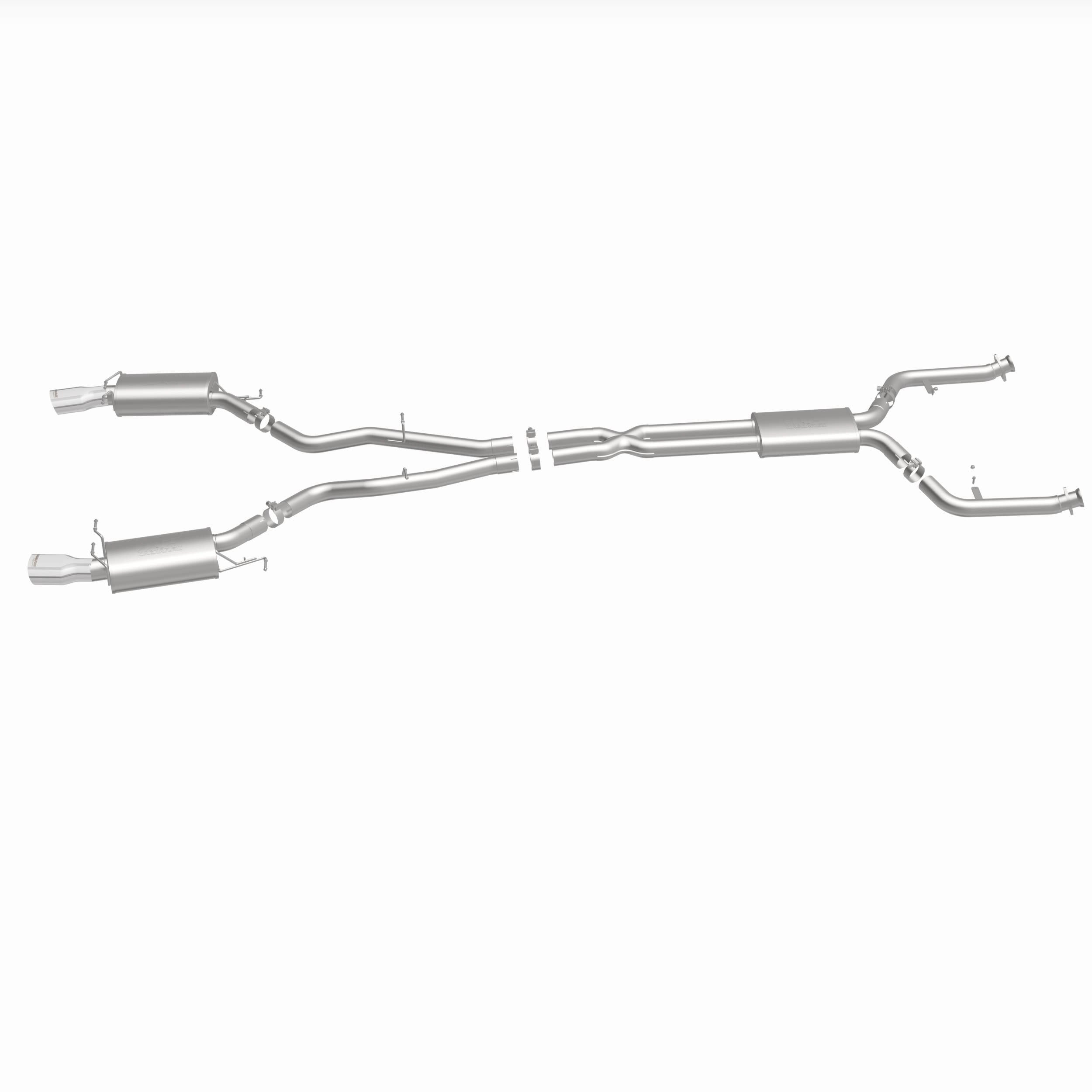

Magnaflow Touring Series Stainless Cat-Back System
The MagnaFlow Touring Series Cat-Back Performance Exhaust System 16560 is the perfect partner for your 4.4L, 4.8L 2004-2010 BMW to take on a grand tour or a weekend cruise thanks to the powerful, resonant exhaust note and dyno-proven performance it brings to the table. This durable, corrosion resistant stainless steel exhaust kit is engineered to conquer the miles with ease while enhancing your driving experience with Moderate exterior and Mild interior sound levels generated through its fast-flowing, mandrel bent 2.5in. main piping and 3 Straight-Through muffler that terminate in a Dual Split Rear exit with 4.75in. Polished Welded-On Double Wall Straight Cut Rolled Edge tips. 16560 features a cat-back layout design to replace your import's stock exhaust components from the catalytic converter on back. This BMW exhaust system is compatible with 2004-2010 engines. The use of extensive 3D scans made during the development process has resulted in an easy-to-install, direct-fit design that fits your BMW like a glove. 16560 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's limited lifetime construction warranty.
Features & Benefits
- 409 Stainless Steel Construction
- Mandrel bent tubing
- Increased Horsepower and Torque
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Straight Cut |
| Exhaust Tip Edge | Rolled Edge |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 8.25 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Oval |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | Yes |
| Muffler (Front) Body Height | 4 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 9 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 14 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Height Position Front | 4 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 14 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 9 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 3 |
| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Touring |
| Type | Cat-Back |
| Valve Included | No |
| Exhaust Tip Diameter | 4.75 IN |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2004-2005 BMW 645Ci 4.4L | 2006-2010 BMW 650i 4.8L Touring Series Cat-Back Performance Exhaust System 16560 |
| Clamping Type | Round Band |
Installation Guide: Download PDF
