MagnaFlow Exhaust Products 16630 - Street Series Polished Cat-Back System
Product Availability Request
Fill the form and our team will contact you.
Magnaflow Street Series Stainless Cat-Back System

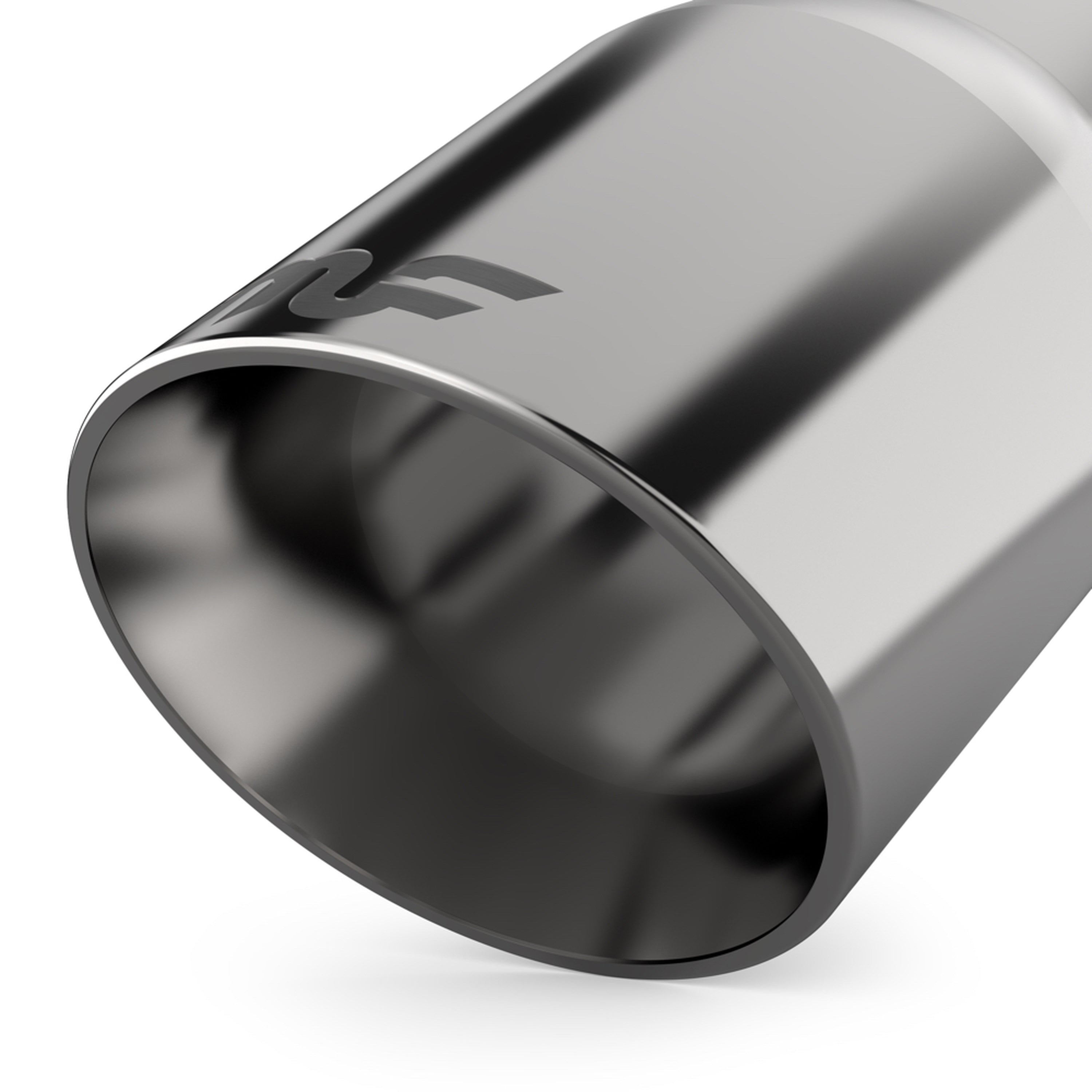

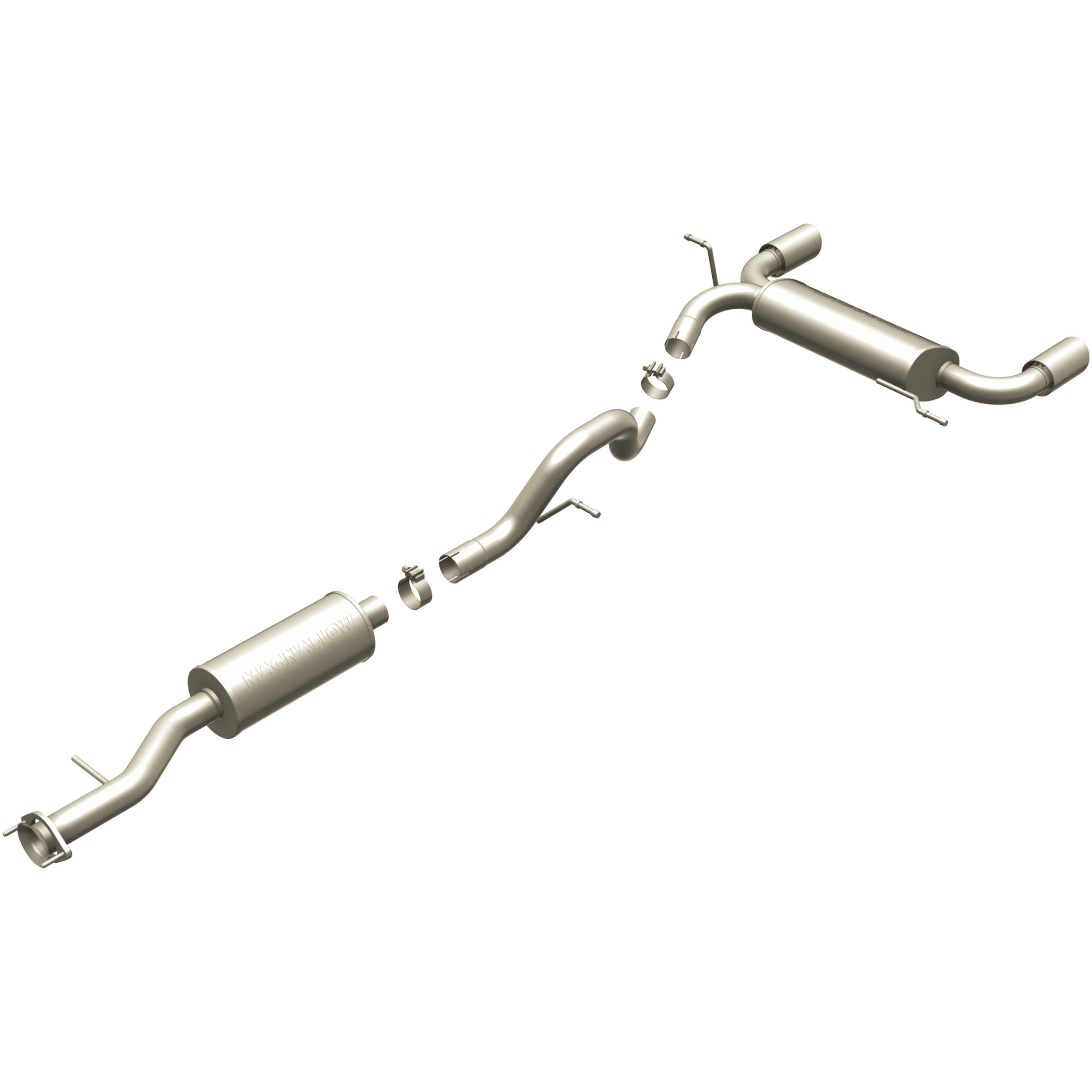

The MagnaFlow 2006-2010 Hummer H3 Street Series Cat-Back Performance Exhaust System brings out the personality of your 3.5L, 3.7L 2006-2010 Hummer H3 with our signature resonant, powerful engine tone and dyno-proven performance. Thanks to its fast-flowing, mandrel bent 2.5in. main piping and 2 Straight-Through mufflers ending in a Dual Split Rear exit with 3.5in. Polished Welded-On Double Wall Angle Cut Folded Edge tips, this Hummer H3 exhaust kit has the performance chops to match its sporty sound and appearance. Upgrade your ride to the next level with an exhaust that has the pipes to put other Hummer H3's to shame. With this system your vehicle will be producing Moderate exterior and Mild interior sound levels while leaving other cars and trucks feeling envious at every stoplight. Exhaust kit 16630 features a cat-back layout that replaces your ride's stock exhaust components from near the catalytic converter on back. Extensive 3D scanning during development has resulted in a direct-fit design that you can easily install yourself. 16630 is produced using CNC precision robotic manufacturing techniques and is backed by MagnaFlow's 1-year limited finish warranty and limited lifetime construction warranty.
Features & Benefits
- Durable corrosion-resistant stainless steel construction
- Dyno-proven performance
- CNC precision robotic manufacturing techniques
Specifications
| Clamps Included | Yes |
| Exhaust Tip Connection | Welded-On |
| Exhaust Tip Cut | Angle Cut |
| Exhaust Tip Diameter | 3.5 IN |
| Exhaust Tip Edge | Folded Edge |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 7.5 IN |
| Exhaust Tip Material | Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Split Rear |
| Gasket Or Seal Included | No |
| Hangers Included | Yes |
| Inlet Type | Bolt-On |
| Main Piping Diameter | 2.5 IN |
| Mounting Bracket Included | No |
| Muffler (Front) Body Height | 6 IN |
| Muffler (Front) Body Length | 14 IN |
| Muffler (Front) Body Width | 6 IN |
| Muffler (Rear) Body Height | 5 IN |
| Muffler (Rear) Body Length | 18 IN |
| Muffler (Rear) Body Width | 8 IN |
| Muffler Body Height Position Front | 6 IN |
| Muffler Body Height Position Rear | 5 IN |
| Muffler Body Length Position Front | 14 IN |
| Muffler Body Length Position Rear | 18 IN |
| Muffler Body Material | Stainless Steel |
| Muffler Body Width Position Front | 6 IN |
| Muffler Body Width Position Rear | 8 IN |
| Muffler Finish | Brushed |
| Muffler Quantity | 2 |

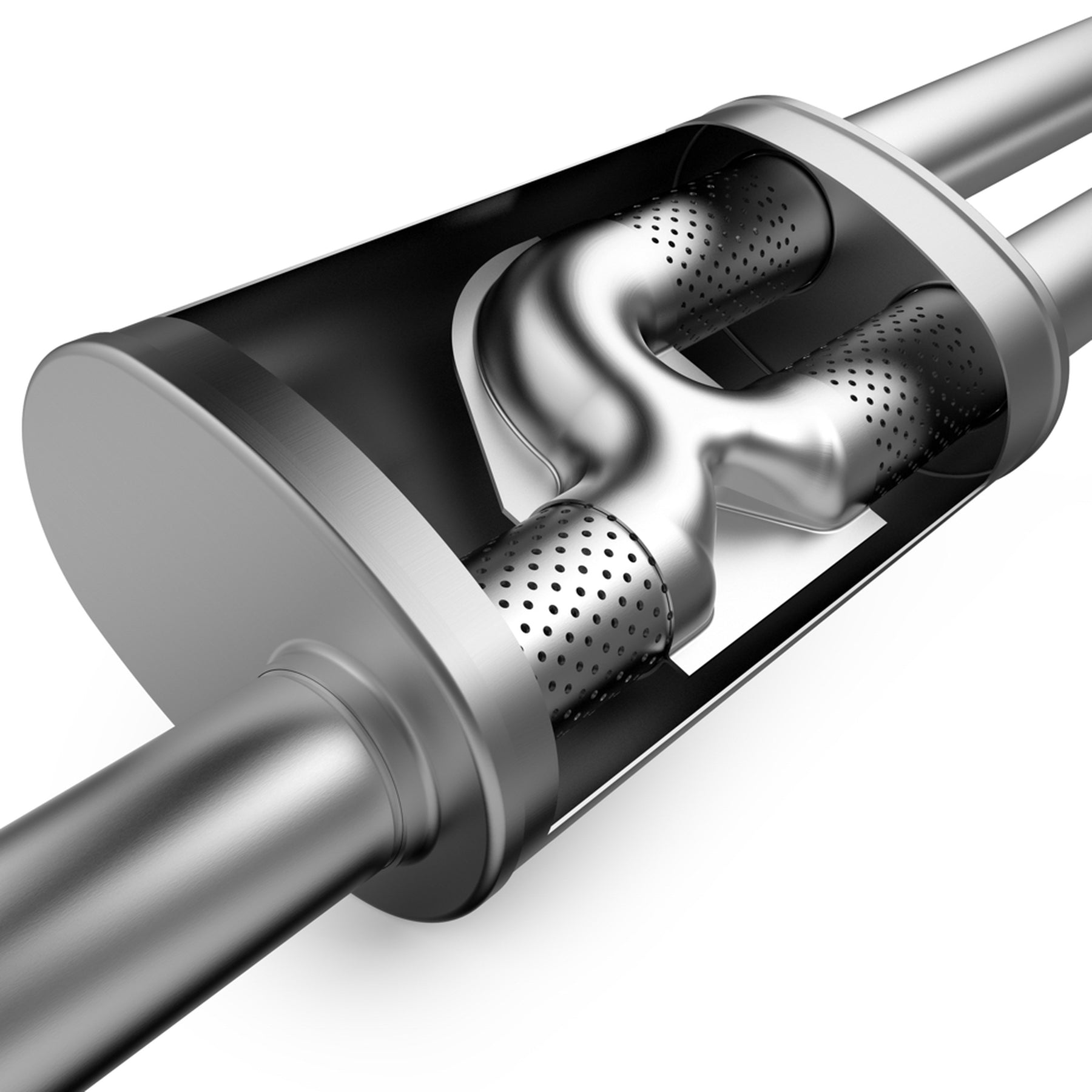

| Muffler Type | Straight-Through |
| Pipe Material | Stainless Steel |
| Series | Street |
| Type | Cat-Back |
| Valve Included | No |
| Catalytic Converter Included | No |
| Title | MagnaFlow 2006 Hummer H3 3.5L | 2007-2010 Hummer H3 3.7L Street Series Cat-Back Performance Exhaust System 16630 |

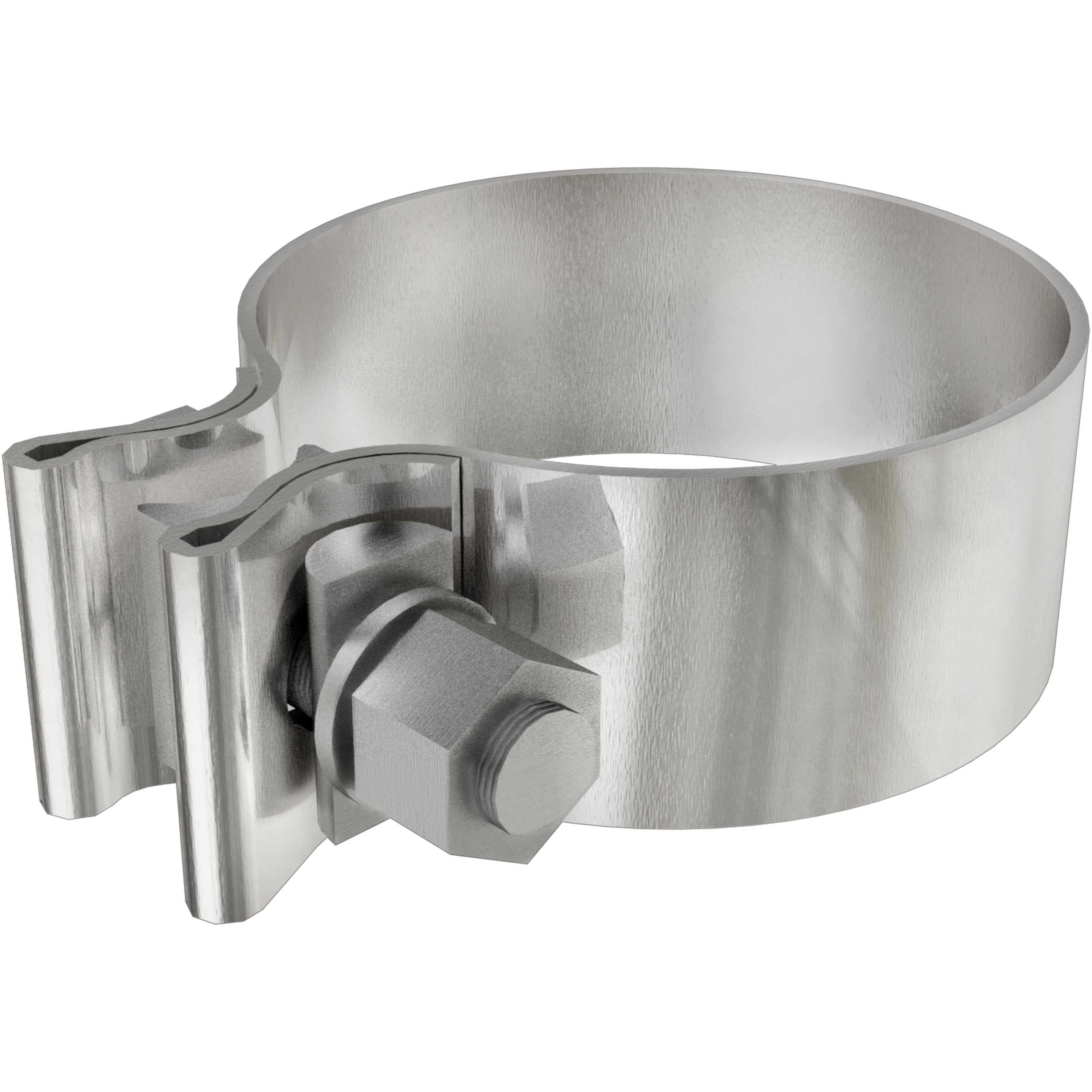

| Clamping Type | Round Band |
Installation Guide: Download PDF
Specifications
MagnaFlow 16630 — Exhaust System Kit, fits 2006-2010 Hummer H3. Key specs: 2.5 in. main piping diameter, street series.
Warranty: Limited Lifetime Warranty from MagnaFlow
Also known as: UPC 841380020444
| Year | Make | Model | Engine |
|---|---|---|---|
| 2006 | Hummer | H3 | 3.5L I5 |
| 2007-2010 | Hummer | H3 | 3.7L I5 |
2 applications listed.
